The ASD-3N network client device now allows any home A/V system to be connected to a home network using an Ethernet connection. MP3 files and non-protected AAC Audio files from a compatible network source can then be streamed through the ASD-3N for listening over your home A/V system. In Addition, the ASD-3N is an iPod dock allowing audio playback or video picture playback from compatible iPod models. The ASD-3N is DLNA certified, and is PlaysForSure compliant for ease of setup and use. The standard D-dock port is also supplied for integration with current or past compatible Denon receivers that do not incorporate GUI menus allowing for command and control. The iPod will also stay charged while docked in the ASD-3N keeping it ready to go. An IR remote is also supplied with the ASD-3N for use with Denon and non-Denon systems.
Click here for the compatibility chart
Main Features
• Playback Music/Photo Files from PC or Music Server
ASD-3W can access Windows Media Player (*1) to get music, photos and playlists come from your PC.
ASD-3W/N features Wi-Fi connectivity supporting IEEE802.11b and g.
[Support files] WMA, AAC (*2), MP3, WAV, FLAC for audio and JPEG(*3) for photos
• Internet Radio
You can access a list of over 7,000 radio stations via "vTuner" service, and enjoy your favorite music channels without a PC.
• GUI (Graphical User Interface) operation
To allow for easier browsing and playback of your files, the ASD-3W/N provide an intuitive GUI with album artwork via S-Video connection. Multi language for both GUI and Meta Data are available.
(English, French, Spanish, German, Japanese)
• iPod Command and Control
ASD-3W/N has capability of control your iPod via remote and playback music, photo slideshows and videos while also recharging your iPod.
• Specifications
- Dimensions : 120mm/4.7"(W) x 43.8mm/1.7"(H) x 120mm/4.7"(D) (included feet and terminals)
- Weight: ASD-3W: 280g/0.61lbs
- ASD-3N: 260g/0.57lbs

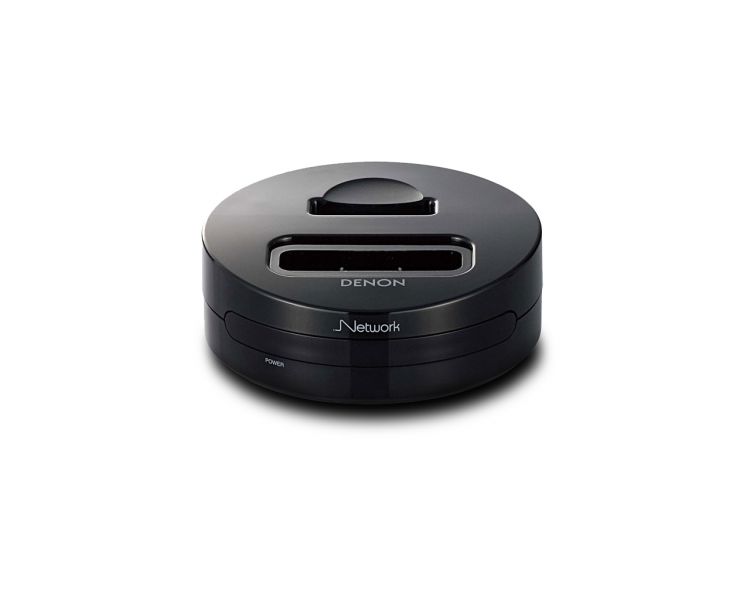

Network image ASD-3N
- *1 Windows Media Player version 11 or latest version is required.
- *2 Non-DRM files only
- *3 No support displaying Progressive JPEG file.
*Sold exclusively within the US only. No shipments allowed outside the US!
Features:
- iPod/networking client dock is Wi-Fi certified with Ethernet port
- Playback music or photo files from your PC or music server
- Access over 7000 radio stations using the "vTuner" service
- Analog audio and S-video ports
IR remote control in black
Note: Some features or functions are dependent on the receiver the D-dock is connected to. Not all functions may be available with all combinations of receivers.
FAQ
- Q: Can the ASD-3W/N be connected to a Denon product (amp, receiver, etc.) that does not have network connectivity?
- A: Yes. Network connectivity can be added by connecting the ASD-3W/N.
- Q: Can it be used with Denon products (amps, receivers, etc) equipped with System Connector?
- A: Yes. However, operation is via the remote control unit supplied with the ASD-3W/N.
The remote control unit supplied with a Denon model (amp, receiver, etc) where the Dock Control port of the ASD-3W/N is connected to the System Connector cannot be used to operate the ASD-3W/N. - Q: Can it be used with Denon products (amps, receivers, etc) equipped with a Dock Control port?
- A: The remote control unit supplied with some Denon models (amps, receivers, etc; please refer to the Table) can be used to operate the ASD-3W/N when connected to the model's Dock Control port.
- Q: What types of 802.11b/g security are supported?
- A: WEP, WPA-PSK (TKIP), and WPA2-PSK (AES) are supported.
- Q: What type of software can play music stored in a PC or music server?
- A: WMP11 can be used to play WMA, DRM WMA, MP3, and WAV music files.
Separately-sold software must be used to play other file formats. - Q: What formats of Internet radio can be heard?
- A: Internet radio stations using MP3 and WMA formats are supported.
Notes:
When using wireless connectivity, a router with wireless connectivity and the ASD-3W must be used.
The Dock Control port uses proprietary Denon specifications.
