ONKYO TX-NR636 7.2-Ch x 95 Watts Networking A/V Receiver

Bringing Next-Generation Entertainment to Your Home

The TX-NR636 is one of the only A/V receivers to feature the latest HDMI 2.0 supporting 4K/60 Hz and 21:9 display format and HDCP 2.2 copy-protection compatibility. Qdeo™ upscaling technology also converts low-res DVDs and games into pin-sharp Full HD or 4K (if you have an Ultra HD display). TX-NR636 paves the way for Ultra HD video playback at a liquid-smooth 60 frames per second. This is great news for PC gamers who can now add wall-shaking surround sound to their 4K/60 Hz experience.

*Sold exclusively within the US only. No shipments allowed outside the US!

CLICK HERE TO DOWNLOAD OWNERS MANUAL

Onkyo's acclaimed WRAT (Wide Range Amplifier Technology), which provides the backbone that delivers Onkyo's classic sound, is coupled with Three-stage inverted Darlington Circutiry to the LCR channel to provide a big soundstage, superb timing, brilliant definition, and enough low-end grunt to make your speakers sing. The TX-NR636 packs a colossal punch for movies but still retains the pure musicality you need for two-channel playback.

Built-in Wi-Fi^® for universal hi-res streaming from PC, NAS, and smartphone is just the beginning. You can select from a wild variety of music streaming services and locate your network-attached libraries using the remote app, or stream almost any audio via built in Bluetooth. An HDMI/MHL terminal connects smartphones to display 1080p video with 7.1 channels of surround sound. Throw in a dedicated phono input, room equalization, and powered Zone 2 and you've got a value-packed 7.2-channel powerhouse ready for the next wave of high-resolution entertainment.

Feel Every Dimension in Dolby Atmos^™

Enter a new world of sound with Dolby Atmos^®. It transports you from an ordinary moment into an extraordinary experience with captivating, multidimensional sound that fills your room with amazing richness and depth. Music, people, and objects come alive in breathtaking detail and flow in precise choreography all around you, making you feel like you are truly there.

This Onkyo receiver features Dual 32-bit DSP engines to decode and scale Dolby Atmos to to your home theater layout. With 7 channels of high-current amplification, you can unlock the full experience with in-ceiling height channels or Dolby Atmos-enabled speakers to augment a standard surround sound home theater setup for stunningly detailed sound that comes alive from all directions, including overhead. Additionally, a new Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.

Welcome to a new world of sound that delivers the full impact of entertainment. It will move your mind, body, and soul.

Supports Next Generation HDMI 2.0 and HDCP 2.2 Copy Protection

The TX-NR636 is the first receiver to boast the latest HDMI 2.0 connections that support 4K/60Hz and 21:9 format, and also the latest Digital Rights Management (DRM) copy protection compatibility, HDCP 2.2. HDCP 2.2 has been adopted for future premium 4K releases by Hollywood studios, satellite broadcasters, and internet video streaming services, and the TX-NR636 is ready. This receiver has paved the way for Ultra HD video playback. Even if you're not planning on upgrading your current TV right away, it's good to know your Onkyo receiver is ready for the future of gaming and video entertainment.

Built-In Wi-Fi and Bluetooth

The TX-NR636 has Wi-Fi and Bluetooth technologies built in. No wires, no dongles, no mess. Complete the one-time Wi-Fi setup, download our free control app for iOs and Android devices, and you've got a full range of remote control and audio streaming features in the palm of your hand. You can also pair your Bluetooth-capable device and stream direct to your home theater. With Advanced Music Optimizer DSP compensating for compression, music via Bluetooth has never sounded better.

From the Vinyl Revolution to the Digital Age

Whether you're just beginning one or adding to you're an existing collection, the TX-NR636's dedicated phono input let you enjoy your classic vinyl in all its analog glory. Onkyo's commitment to Hi-Res audio playback and supports gapless playback and the ability to play DSD, Double DSD, FLAC and ALAC along with other Hi-Res formats. The TX-NR636 has what it takes to help you enjoy your music, and discover how truly amazing music can sound on an A/V receiver engineered for hi-res analog and digital audio.

Built-in Internet Radio and Streaming

If you can think of it, you'll most likely be able to stream it on your TX-NR636. The receiver comes loaded with Spotify, Pandora, SiriusXM Internet Radio, Slacker, AUPEO! and TuneIn, You can select a station and search for music available on these services via the free Onkyo app on your phone so you'll never be short of your favorite music to enjoy.

Spotify Connect is available in this receiver via firmware update. It allows Spotify Premium subscribers to stream over 20 million tracks from the Spotify smartphone and tablet application through your home theater system. Spotify Connect also allows users to make calls or use other apps without interrupting playback, since the technology is built into the receiver.

Hi-Fi Power and Fidelity

WRAT (Wide Range Amplifier Technology) is all about current. Receivers need a lot of current not only to handle the sudden explosive actions scenes but also to reproduce the detail of quiet passages. We use a massive high-power transformer to drive discrete amps that help eliminate distortion and preserve the energy of music and movies. The TX-NR636 packs a colossal punch for movies but still retains the pure musicality you need for two-channel playback. Also, Phase-Matching Bass Enhancement optimizes low frequencies while preserving mid- range clarity. It counters phase shifting by synchronizing the timing of different frequencies. The result is deep, well- defined bass that won't blur vocals or strings.

Exclusive AccuEQ Room Calibration

Calibrating the sound to suit your room's acoustics is simple with AccuEQ. Once you've connected your speakers, plug-in the included mic and wait a few moments as the TX-NR636 measures things such as speaker distance, type, crossover, and output, taking into account any reflections from your walls and floor. The system is designed specifically to by-pass your front left and right speakers. The system then optimizes the frequency response of the remaining speakers so you can enjoy balanced surround sound regardless of room shape or furnishing while retaining the characteristics of your front left and right speakers for optimum enjoyment.

# Channels	7.2
Power Watts/Ch (6 Ohms 1kHz, 2 Channels Driven, FTC)	165, 0.9% THD
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)	95, 0.08% THD
WRAT (Wide Range Amplifier Technology)	✓
H.C.P.S (High Current Power Supply)	✓ (Massive High Power Transformer)
Continuous 6 Ohms Rated	✓
Discrete Output Stage Circuitry	✓
3-Stage Inverted Darlington Circuitry	✓ (Front & Center Channels)
Independent Power Supply	✓ (x2)
Bi-amp Capability For Front	✓
Processing
Dolby Atmos	✓
32-Bit Digital Signal Processing Engine	✓ (Dual DSP for Powerful Advanced Processing)
Dolby Decoder	Atmos, True HD, DD Plus, PLIIz
DTS Decoder	DTS-HD Master Audio
Dolby PLIIz	✓
ONKYO GAME Surround Modes	✓ (Rock, Sports, Action, RPG)
AccuEQ Room Calibration	✓ (with Mic Included)
Phase-Matching Bass Boost	✓ (for Deep Bass and Clear Mid-Range)
Direct/Pure Mode	✓ / -
Advanced Music Optimizer	✓ (Bluetooth Included)
192K/24 Bit DACs	✓ (Burr-Brown)

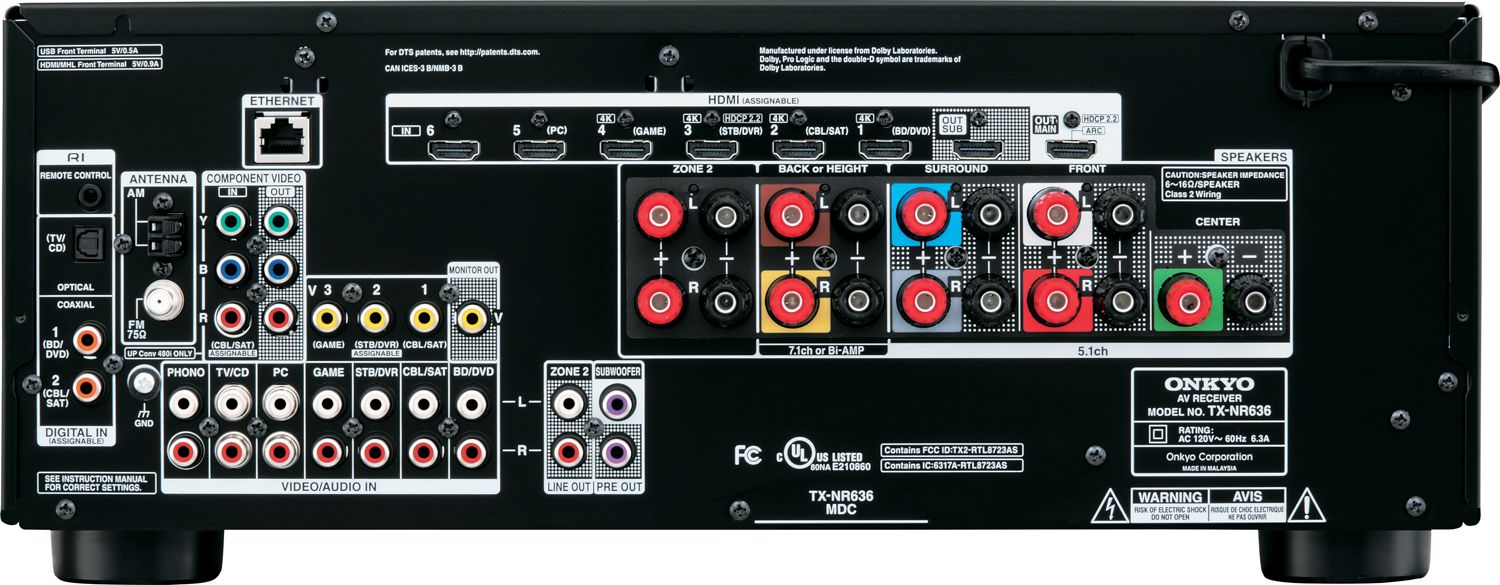

Connectivity
Audio I/O	6 / 0
Phono Input	✓
Digital Audio IN (OPT/COAX)	1 / 2
Composite I/O	3 / 1
Component Video I/O	1 / 1
Front Panel HDMI	✓
USB Input	✓ (Front)
HDMI I/O	7 / 2
HDMI 2.0 4K/60 Hz- Capable HDMI Terminals	✓
HDCP 2.2 Copy-Protection Compatibility	✓ (1 in / 1 out)
HDMI Support for 3D, Audio Return Channel and CEC	✓
HDMI Support for Deep Color, x.v.Color, LipSync	✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM	✓
InstaPrevue Input Source Prevue	✓
MHL for Mobile Device Connection	✓ (Front HDMI)
Analog To HDMI Upconversion	✓ (from 480i/576i)
1080p Upscaling	✓ (Marvell Qdeo)
4K (up to 4096 x 2160) Upscaling	✓ (Marvell Qdeo)
4K Passthrough	✓
Analog Pre-Outs	Subwoofer (x2)
Powered Zone 2	✓
Zone 2 Line Out	✓ (Fixed)
Zone 2 Digital to Analog Audio Conversion	✓ (NET, USB)
iPod Ready	✓ (via optional DS-A5)
Airplay	✓ (via optional DS-A5)
Supports Onkyo Remote App	✓ (iPod touch/iPhone and Android-Powered Devices)
Internet Radio Capable	✓ (Pandora, Spotify, Sirius/XM, Slacker, Aupeo!, TuneIn)
Spotify Connect Support	✓
Streaming Audio From PC / Network	✓ (DLNA, Home Media)
Streaming Audio Formats	✓ (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC Stereo, Apple Lossless, DSD 5.6 MHz, LPCM, Dolby TrueHD)
Streaming Audio From USB memory	✓
Wireless Network	✓ (Wi-Fi-Certified)
Bluetooth	✓ (Built-in)
Integration Access
Ethernet	✓
ONKYO-RI System Control	✓
RIHD (Remote Interactive Over HDMI)	✓
Miscellaneous
Pre-Pro/Learning Remote	✓ / -
On Screen Remote Programming	✓
Color-Coded Speaker Terminals	✓
Hybrid Standby Function	✓ (to Reduce Power Consumption)
Smart Grid-Ready	✓
Auto Speaker Calibration W/Mic.	✓ (AccuEQ)
OSD Out	✓ (Advanced "Home" GUI)

Amplifier Section
Power Output
	All Channels		95 W (8 Ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 115 W (6 Ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
	Dynamic Power		240 W (3 ohms, Front) 210 W (4 ohms, 1 Front) 120 W (8 ohms, Front)
	THD+N (Total Harmonic Distortion + Noise)		0.08% (20 Hz-20 kHz, Half power)
	Damping Factor		60 (Front, 1 kHz, 8 ohms)
	Input Sensitivity and Impedance		200 mV/47 k-ohms (Line) 2.5 mV/47 k-ohms (Phono MM)
	Rated RCA Output Level and Impedance		200 mV/2.2 k-ohms (Rec out)
	Maximum RCA Output Level and Impedance		2.0 V/2.2 k-ohms (Line Out)
	Phono Overload		70 mV (MM, 1 kHz, 0.5%)
	Frequency Response		5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
	Tone Control		±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
	Signal-to-Noise Ratio		106 dB (Line, IHF-A) 80 dB (Phono MM, IHF-A)
	Speaker Impedance		6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance
	Video		1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite)
	Component Video Frequency Response		5 Hz–100 MHz, -3dB
Tuner Section
Tuning Frequency Range
	FM		87.5 MHz–107.9 MHz
	AM		530 kHz–1,710 kHz
	FM/AM Preset Memory		40 stations
General
	Power Supply		AC 120 V~, 60 Hz
	Power Consumption		6.3 A
	No-Sound Power Consumption		80 W
	Standby Power Consumption		0.1W
	Dimensions (W x H x D)		17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 329 mm)
	Weight		22.0 lbs (10.0 kg)



Onkyo Factory Refurbished

Buying a Onkyo Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with accessories included. When you consider that a factory-renewed Onkyo product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Onkyo repair center (you can look-up locations online here or call 201-785-2600)

Onkyo, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Onkyo certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Onkyo Factory Refurbished" product.

Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.

Get extra protection for your ONKYO TX-NR636 7.2-Ch x 95 Watts Networking A/V Receiver with a comprehensive service plan

---
