ONKYO TX-NR646 7.2-Ch x 100 Watts Networking A/V Receiver

DTS:X Compatible

DTS:X is a next-generation object-based surround sound technology that includes height to deliver a fully-immersive listening experience. DTS:X provides listeners the ultimate in flexibility, immersion, and interactivity. Unlike channel-based audio, you will be able to personalize your audio experience. For example, you can turn up JUST the dialog within a mix. DTS:X allows you to customize to your room layout as well as control dialog and dynamic range.

*Sold exclusively within the US only. No shipments allowed outside the US!

CLICK HERE TO DOWNLOAD OWNERS MANUAL

Supports Dolby Atmos^® Up to 5.1.2 Channels

With Dolby Atmos, sound comes alive from all directions, including overhead. The format combines a channel-based audio bed with object-oriented sound to place and move specific effects around the room, creating a breathtakingly realistic and captivating sonic atmosphere.

Sound designers and artists are free to mix in a 3D space, steering effects through surround channels and adding a seamless overhead dimension with discrete height channels.

Additionally, a new Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.


Ready for 4K UltraHD

The latest HDMI specification and HDCP 2.2 compatibility support the latest formats and technologies planned for Hollywood content. This latest HDMI spec offers a significant increase in bandwidth (up to 18Gbps) to support new features such as [email protected]/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, and 4:4:4 color space.

This Onkyo AVR enables transmission of High Dynamic Range (HDR) formats, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image.

Bluetooth / Wi-Fi^® with Pandora, Spotify, and AirPlay

The TX-NR646 has AirPlay, Wi-Fi and Bluetooth technologies built in. The free Onkyo Remote app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet. Or pair up and enjoy whatever's playing on your Bluetooth-compatible device for huge cinematic sound.

This receiver comes loaded with Spotify, Pandora, SiriusXM Internet Radio, Slacker and TuneIn. You can select a station and search for music available on these services via the Onkyo Remote app on your phone. You'll never be short of your favorite music to enjoy.

Hi-Current Amp Design for Authentic Sound Reproduction

From the quietest dialog passages to booming action scenes, Onkyo's exclusive amplification technology dramatically enhances the audio dynamics of your movies, music and games.

This Wide Range Amplifier Technology (WRAT) is at the core of Onkyo's signature sound. The innovative amplifier design is comprised of three key elements:
(1) a low negative feedback design for punchy, true-to-life sound, and cleaner audio across the frequency ranges;
(2) closed groundloop circuits to reduce individual circuit noise and keep the ground potential free of distortion; and
(3) a high instantaneous current to handle big dynamic gains.

This allows massive power at 170 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC) and 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC).

384 kHz/32-bit Hi-Grade DAC

No matter what you're listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio (MP3, WMA, WMA Lossless, FLAC, WAV, OggVorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM, and Dolby TrueHD).

Classic Analog & Hi-Res Digital

This receiver is engineered for hi-res analog and digital audio. You can spin your classic vinyl and hear it in all its analog glory and stream your networked hi-res digital files. Both analog and digital audio sound its warmest and clearest. The TX-NR646 supports hi-res audio playback, gapless playback, and the ability to play DSD, Double DSD, FLAC and ALAC along with other Hi-Res formats.

Powered Zone 2 and Zone 2 Line-Outs

The TX-NR646 features Powered Zone 2 and Zone 2 line-outs. This lets you assign two channels to power audio in a room equipped with speakers. An existing hi-fi system in a third room can also be connected via the line-out, enabling the use of the A/V receiver as a pre-amp and audio server.

# Channels	7.2
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC)	170, 0.9% THD
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)	100, 0.08% THD
WRAT (Wide Range Amplifier Technology)	✓
H.C.P.S. (High Current Power Supply)	✓ (Massive High Power Transformer)
Continuous 6 Ohms Rated	✓
Discrete Output Stage Circuitry	✓
PUSH-PULL Design	✓
Independent Power Supply	✓ (x2)
Bi-amp Capability For Front	✓
Processing
Dolby Atmos	✓
32-Bit Digital Signal Processing Engine	✓
Dolby Decoder	Atmos, True HD, DD Plus
DTS:X	✓
DTS Decoder	DTS: X, DTS-HD Master Audio
ONKYO GAME Surround Modes	✓ (Rock, Sports, Action, RPG)
AccuEQ Room Calibration	✓ (Advanced)
Phase-Matching Bass Boost	✓ (for Deep Bass and Clear Mid-Range)
Direct/Pure Mode	✓ / -
Advanced Music Optimizer	✓ (Bluetooth Included)
384K/32 Bit DACs	✓ (Asahi Kasei AKM4458)

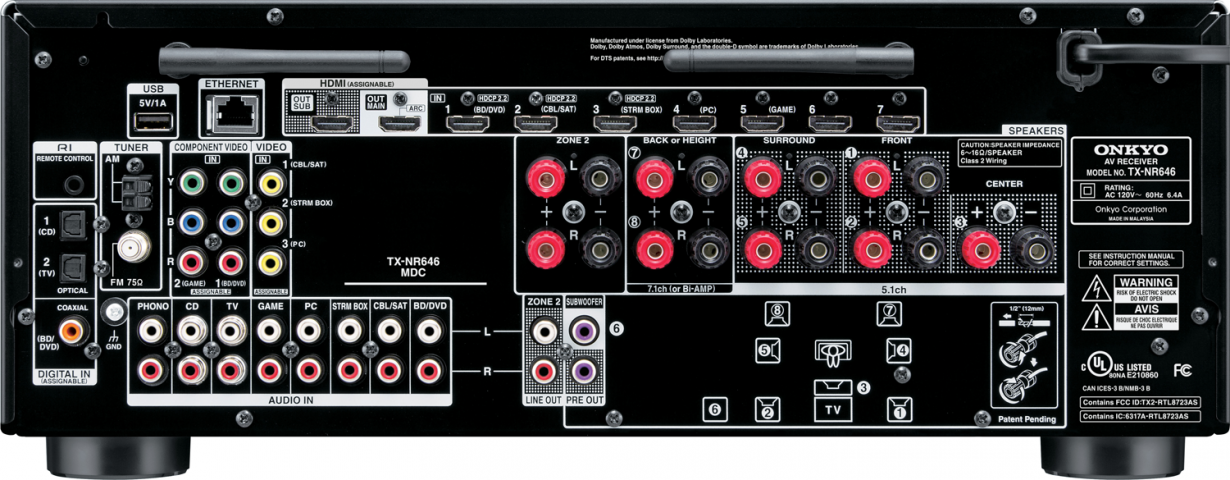

Connectivity
Audio I/O	7 / 0
Phono Input	✓
Digital Audio IN (OPT/COAX)	2 / 1
Composite Video I/O	3 / 0
Component Video I/O	2 / 0
Front Panel HDMI	✓
USB Input	✓ (Rear)
HDMI I/O	8 / 2
HDMI 4K/60 Hz- Capable HDMI Terminals	✓ (HDR Support)
HDCP 2.2 Copy-Protection Compatibility	✓ (3 in / 2 out)
HDMI Support for High Dynamic Range	✓
HDMI Support for 3D, Audio Return Channel and CEC	✓
BT.2020 Support	✓
HDMI Support for Deep Color, x.v.Color, LipSync	✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM	✓
Analog To HDMI Upconversion	✓ (from 480i/576i)
4K Passthrough	✓
Analog Pre-Outs	Subwoofer (x2)
Powered Zone 2	✓
Zone 2 Line Out	✓ (Fixed)
Zone 2 Digital to Analog Audio Conversion	✓ (S/PDIF, NET, USB)
Made for iPod, iPhone, iPad	✓
Airplay	✓
Supports Onkyo Remote App	✓ (iPod touch/iPhone and Android-Powered Devices)
Internet Radio Capable	✓ (Pandora, Spotify, Sirius, Slacker, TuneIn, Deezer)
Spotify Connect Support	✓
Streaming Audio From PC / Network	✓ (DLNA, Home Media)
Hi-Res Streaming Audio Formats	✓ (Apple Lossless, DSD 2.8/5.6 MHz, Dolby TrueHD, FLAC 192/24, LPCM, Ogg Vorbis, WAV, WMA)
Streaming Audio From USB memory	✓
Wireless Network	✓ (Wi-Fi-Certified)
Bluetooth	✓ (Built-in)
Integration Access
Ethernet	✓
ONKYO-RI System Control	✓
RIHD (Remote Interactive Over HDMI)	✓
Miscellaneous
Pre-Pro/Learning Remote	✓ / -
On Screen Remote Programming	✓
Hybrid Standby Function	✓ (to Reduce Power Consumption)
Smart Grid-Ready	✓
Auto Speaker Calibration W/Mic.	✓ (AccuEQ - Advanced)
OSD Out	✓ (Advanced "Home" GUI)

Onkyo Factory Refurbished

Buying a Onkyo Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with accessories included. When you consider that a factory-renewed Onkyo product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Onkyo repair center (you can look-up locations online here or call 201-785-2600)

Onkyo, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Onkyo certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Onkyo Factory Refurbished" product.

Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.

Get extra protection for your ONKYO TX-NR646 7.2-Ch x 100 Watts Networking A/V Receiver with a comprehensive service plan

---
