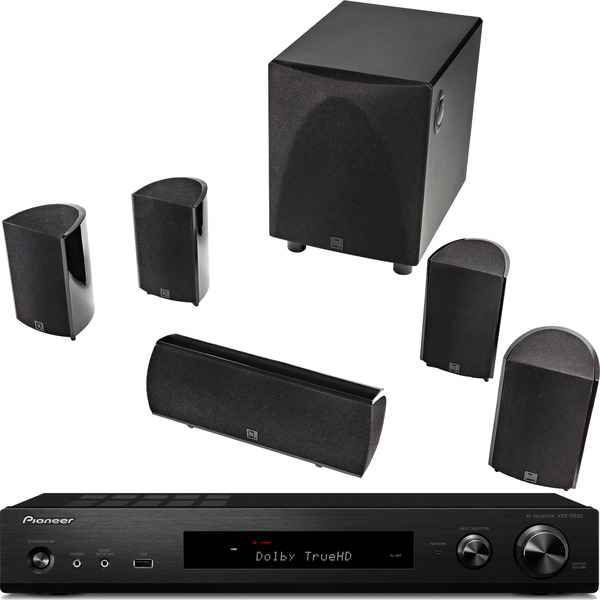

PIONEER VS-X520S Slim Receiver & Definitive Technology ProCinema 6D Home Theater Package
60% off msrp
Free shipping
PIONEER VS-X520S Slim Receiver & Definitive Technology ProCinema 6D Home Theater Package

PIONEER VS-X520S Slim Receiver & Definitive Technology ProCinema 6D Home Theater Package

Item #: 2023BUNDLE1
Availability: IN STOCK, ships out in 1-2 Business Days.
SALE $599.00
60% off msrp
Item Condition:
Pioneer NEW, DefTech Refurbished
Manufacturers Warranty:
1 Year Pioneer, 2 Year Definitive Technology
Manufacturers Part #:
Ask an expert Accessories4Less advisor

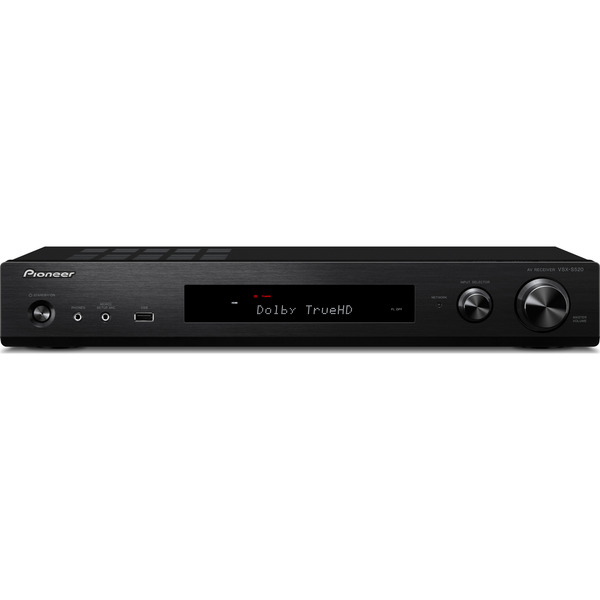

PIONEER NEW VSX-S520 5.1-ch x 50 Watts Slim A/V Receiver

Bringing quality sound and the latest features in a slim and stylish design, thanks to the highly-efficient Class D amplifier. Enjoy spectacular images with Ultra HD (4K/60p/4:4:4) upscaling/pass-through, play Hi-Res Audio via USB/network, listen to internet radio and various streaming services. The slim, stylish design and efficient power makes the VSX-S520 an ideal addition to any home cinema.


  • Slim 2.76” Low-profile Design
  • Built in Bluetooth® and WiFi®
  • Ultra HD Pass-through (4K UltraHD 60P/4:4:4) with HDCP 2.2
  • 80 W/ch (4 ohms, 1 kHz, THD 1.0 %, 1ch Driven FTC)
  • 50 W/ch (4 ohms, 1 kHz, THD 1.0 %, 2ch Driven FTC)

Slim Compact Design

Like other products from Pioneer, the VSX-S520 features a stylish black finish along with a slim line profile combined with low heat generation of class D amps and a low-profile design that makes it easy to fit into tight spaces.

Built-in Dual Band Wi-Fi

Enjoy network features such as audio streaming via wireless LAN connection. The built-in Wi-Fi is dual band, supporting both 5 GHz and 2.4 GHz frequency channels. By using the 5 GHz band, you can enjoy steady and uninterrupted streaming of audio files.

Ultra HD (4K/60p/4:4:4/24-bit) Upscaling/Pass-Through with HDCP 2.2

The feature lets you take advantage of the highest-quality video source for viewing on a 4K TV. With support for HDCP 2.2, you can enjoy premium content such as 4K videos with digital copy protection on a compatible display.
* Supports up to 4K/60p/4:4:4/24-bit with HDCP 2.2 on HDMI IN (1/2/3), and HDMI OUT.

Next Generation Video Standard Ready

The VSX-S520 is ready for the next generation video standard HDR (High Dynamic Range) and BT.2020, which were adopted by Ultra HD Blu-ray™. HDR is a technology that drastically expands the brightness peak, providing a higher contrast between light and dark images, which creates even more life-like pictures. BT.2020 is a new color-recording technology allowing a much wider gamut than the current BT.709 standard, enabling vividly rich coloration.

Chromecast™ built-in

The VSX-S520 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to the receiver. You can control the audio from anywhere in the house using Chromecast-enabled apps running on your personal device—iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook. Discover Chromecast-enabled apps at
*Chromecast buillt-in will be available with future firmware update.

Internet Radio & Online Music

Enjoy limitless streams of your favorite online music, sports, talk and news entertainment services, including Spotify® and for the first time TuneIn and TIDAL.

MCACC® Auto Room Tuning

Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response. As an innovative solution for the phase lag between the subwoofer and the main channel speakers caused by the network filter, Phase Control compensates the delayed bass to improve sound synchronization.

Intuitive Control with New Pioneer Remote App (iOS/Android)*

Enjoy smooth control using your beloved device. With the free Pioneer Remote app, you can use your iPad/iPhone/iPod touch or Android smartphone for operating the AV receiver, or play back tunes stored on your device. You can also select internet radio stations, and play songs from your media server.
* AV receiver needs to be connected to a home LAN network in a wireless LAN environment.

Multi-room Audio Offers a Variety of Ways to Enjoy Music

The VSX-S520 will support FireConnect™ Powered by Blackfire*1 with a future firmware update. FireConnect is a stable wireless protocol that streams audio from a compatible Pioneer AV Receiver to a compatible Pioneer wireless speaker. Enjoy Bluetooth audio, front USB audio files and internet radio from the FireConnect compatible Pioneer AV receiver to an optional FireConnect compatible Pioneer wireless speaker(s)*1 located in another room(s).
*1 Multi-room Audio is realized by FireConnect technology. FireConnect is a technology of Blackfire Research Corp, USA. We cannot guarantee that the AV Receiver will support all speakers incorporating FireConnect technology. Not all FireConnect compatible speakers work with all FireConnect capable AV Receivers.

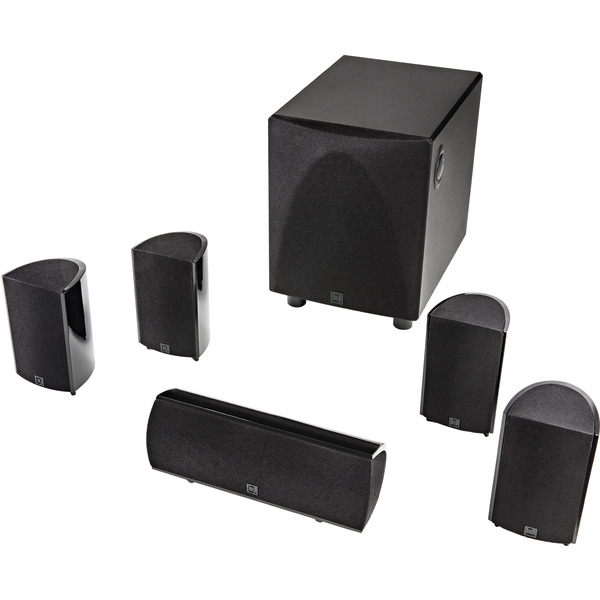

DEFINITIVE TECHNOLOGY ProCinema 6D 5.1 Channel High-Performance Compact Surround Sound System

The Definitive Technology ProCinema 6D 5.1 channel high-performance compact surround sound system delivers full-range audio for movies and music. Its modern minimalist design houses an upgraded driver array whose enhanced acoustical features offer cleaner resolution and overall detail along with tighter bass performance. Features a patented Linear Response Waveguide and BDSS technology to ensure superior imaging and mid-range performance. Includes a powered subwoofer to completely fulfill every nuance of sound in all of your entertainment. Fill your listening space with premium sound from a compact form factor whose power and sleek details are the perfect match for any décor.

  • 5.1 channel high-performance compact surround sound system delivers full-range audio for movies and music
  • 1” annealed aluminum dome tweeters for crystal clear highs and detailed stereo imaging
  • BDSS Mid-Bass drivers deliver superior mid-range detail and punchier bass
  • Linear Response Waveguide™ extends both on- and off-axis frequency response, while improving dispersion imaging.

1" Annealed Aluminum Dome Tweeters

Delivers smoother high frequency response and improved dispersion for a rich and balanced listening experience

Balanced Double Surround System

BDSS Mid-Bass Drivers

Patented Double Surround midrange/woofer provides greater excursion and output that results in superior mid-range detail and punchier bass compared to drivers of similar size.

Linear Response Waveguide™

Patented Linear Response Waveguide extends both on- and off-axis frequency response, while improving dispersion for more natural mid-range timbre and more precise imaging.

Compact 250W Powered Subwoofer

Powered subwoofer delivers deeper, tighter, more accurate room-filling bass via an 8” driver and 8” bass radiator. The subwoofer also features high- and low-level inputs for enhanced connection flexibility and optimal cable management whether you’re connecting via speaker cable or LFE. Plus, it features a volume knob on the side, letting you fine-tune bass output to suit your listening preferences

Compact Satellite Speakers

Includes (4) satellite speakers for use as front left and right, and rear left and right surrounds. These 3-way speakers each include a (1) 1” aluminum dome tweeter, (1) 3.25” mid/woofer (BDSS) driver and 3.25” bass radiator to ensure full-range, room-filling sonic detail in all of your entertainment.

Compact Center Channel

Includes (1) center channel speaker with (1) 1” aluminum dome tweeter, (2) 3.25” mid/woofer (BDSS) drivers and (2) 3.25” bass radiators for best-in-class center imaging and overall sonic clarity.



PIONEER NEW VSX-S520 5.1-ch x 50 Watts Slim A/V Receiver

Power Output 50 W per channel at 4 Ohms, 1 kHz, 1% THD, 2-channel driven FTC
80 W per channel at 4 Ohms, 1 kHz, 1% THD, 1-channel driven FTC
No. of Channels 5.1
Amplifier Type Class D
Impedance 4 to 8 Ohms
Audio Processing
Dolby Dolby TrueHD, Dolby Digital Plus, Dolby Pro Logic II
Dolby Atmos with future firmware update
DTS DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DTS Neo:6 5.1
DTX:X with future firmware update
USB Support MP3, WMA, WAV, AIFF, AAC, FLAC, Apple Lossless, DSD, Dolby TrueHD
Phase Control Yes
Surround Modes Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
HDMI SACD/DSD Support 2.8 MHz / 5.1-channel, 2-channel
ARC (Audio Return Channel) Yes
Video Processing
Pass-Through 4K, 60p, 4:4:4, 24-bit
4K, 24p, 4:4:4, 36-bit
4K, 60p, 4:2:0, 36-bit
3D Support 3D ready
Deep Color / x.v. Color Support Yes / Yes
AM/FM Tuner No/Yes
FM Station Presets 40
OSD Languages English, German, French, Spanish, Italian, Dutch, Swedish
Auto Power Off Yes
Sleep Timer Yes
Analog Inputs 3 x Stereo RCA audio in (1 phono)
Digital Inputs 4 x HDMI with HDCP 2.2
1 x Digital coaxial
1 x Optical TOSLINK
1 x USB (front)
Analog Outputs 1 x 1/8" (3.5 mm) Headphone
Digital Outputs 1 x HDMI with ARC
Speaker Connectors 6 x Spring clip pairs (front L/R, center, surround L/R, subwoofer)
1 x RCA subwoofer pre-out
Other Ports 1 x Ethernet LAN in
1 x 1/8" (3.5 mm) setup mic in (front)
1 x FM Antenna in
Bluetooth Version 4.1
Bluetooth Profiles A2DP, AVRCP
Bluetooth Codecs SBC/AAC
Wi-Fi Dual-band 5 / 2.4 GHz
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Consumption Typical: 60 W
Standby: 0.2 W
Dimensions (W x H x D) 17.1 x 2.8 x 12.8" (43.4 x 7.1 x 32.5 cm)
Weight 8.8 lb (4 kg)


DEFINITIVE TECHNOLOGY ProCinema 6D 5.1 Channel High-Performance Compact Surround Sound System

Enclosure Passive Radiator
Video Shielded No
Pieces in System 6
Color Black
Tweeter Dome
Midrange size (inches) N/A
Woofer size (inches) 3-1/4
Woofer Composition Polymer
Woofer Surround Rubber
Impedance (Ohms) 8
Connector Type 5-way post
Mounting Bracket Included Keyhole
Recommended Stand Height (inches) 28-31
RMS Power Range (watts) 10-175
Subwoofer RMS Power (watts) 250
Main Speakers (inches) 7-1/8H x 4-1/16W x 4-3/16D
Center Speaker (inches) 4-1/8H x 11-9/16W x 4-1/4 D
Surround Speakers (inches) 7-1/8H x 4-1/16W x 4-3/16D
Subwoofer (inches) 12-15/16H x 9-9/16W x 15-3/16D

Item Condition

Item Condition

Pioneer NEW, DefTech Refurbished
