Description
Description

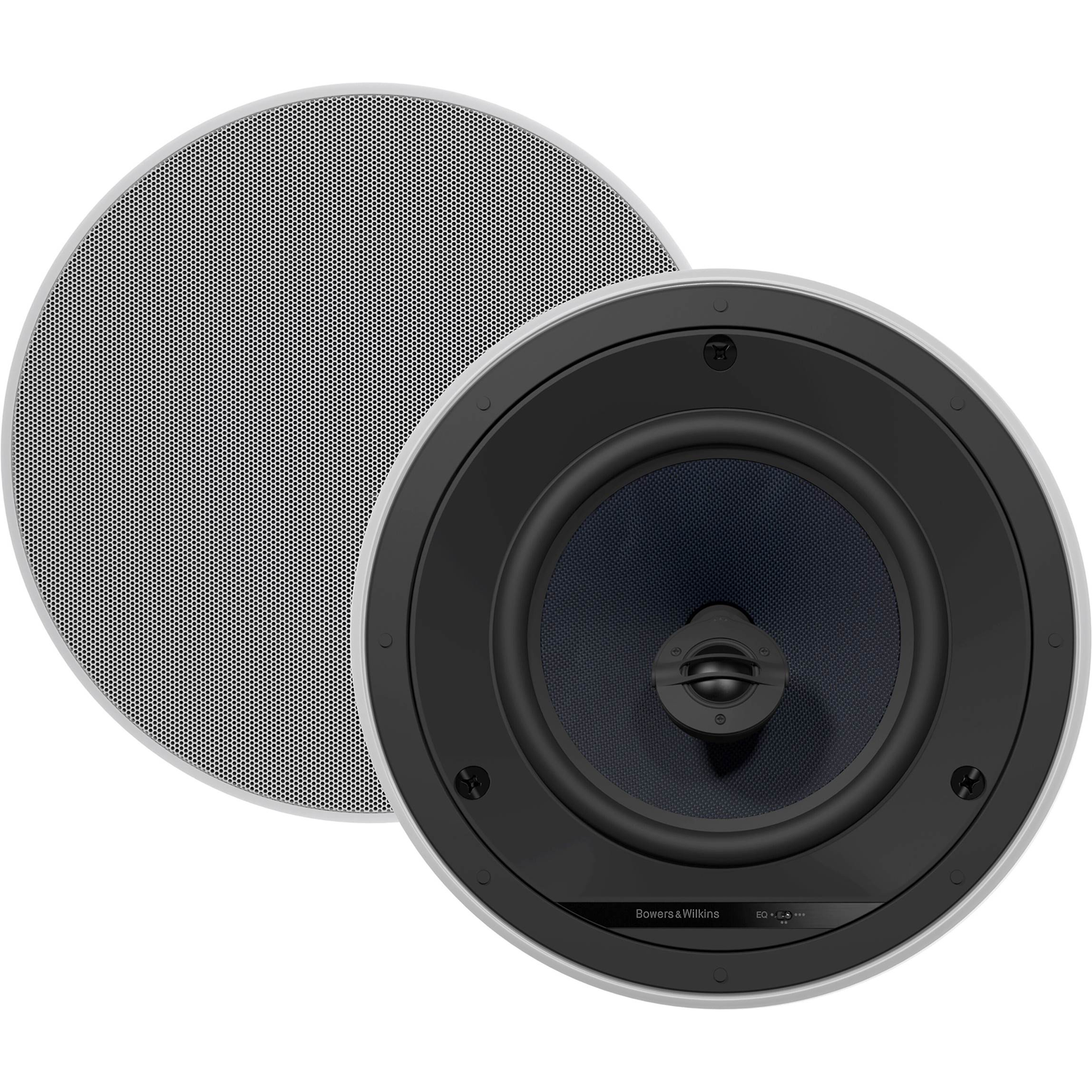

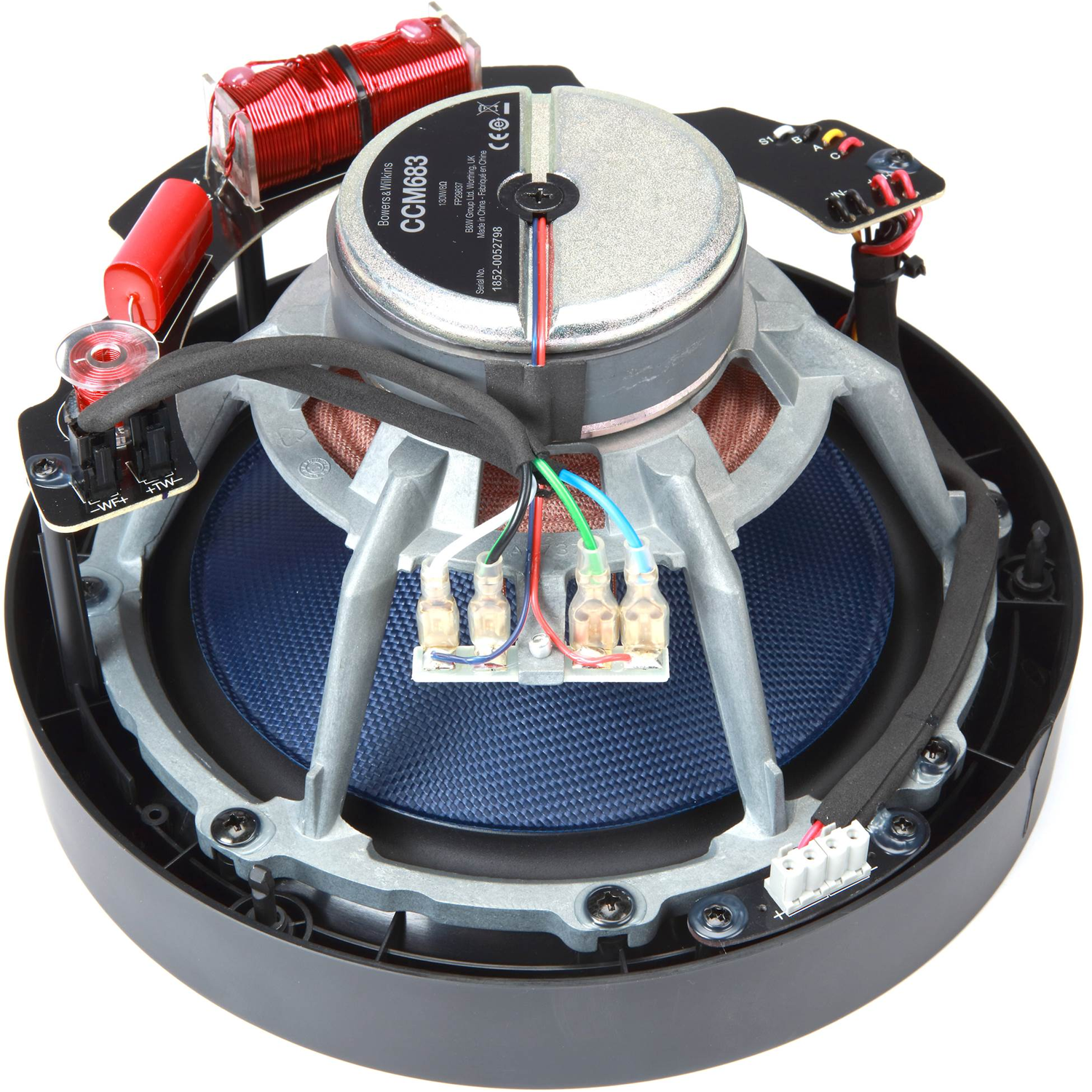

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid fiber cone bass/midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.
-
130W maximum power handling
For robust and controlled audio.
-
8" Aramid fiber bass/midrange cone
Along with a 1" nautilus-swirl-loaded, aluminum-dome tweeter delivers a complete range of crisp, high-quality sounds.
-
2-way speaker system
Sounds like 1 source rather than several separate sources.
-
Binding posts
Allow simple, secure connectivity.
-
Infinite baffle enclosure
Creates a sturdy design.
-
35Hz - 50kHz frequency response
Offers accurate tonal representation.
-
88dB sensitivity
For powerful audio.
-
8 ohms nominal impedance
Efficiently conducts power through the speaker.
Specifications
Specifications
| Features | |
| Quantity in Package | Pair |
| Tweeter | Soft-Dome |
| Aimable Tweeter | Yes |
| Woofer Composition | Kelar |
| Woofer Surround | Rubber |
| Moisture-resistant | No |
| Outdoor-rated | No |
| Connector Type | Spring post |
| Bi-Amp Inputs | No |
| Built-in Back-box | No |
| Specs | |
| Tweeter Size | 1 |
| Midrange Size | N/A |
| Speaker Shape | Round |
| Woofer Size | 8 |
| Cutout Width | 9.8125 |
| Cutout Height | 9.8125 |
| Mounting Depth | 5.25 |
| Power Range (Watts) | 25-130 |
| Sensitivity | 89 dB |
| Impedance (Ohms) | 8 |
| Frequency Response | 35-50kHz |
