Description
Description

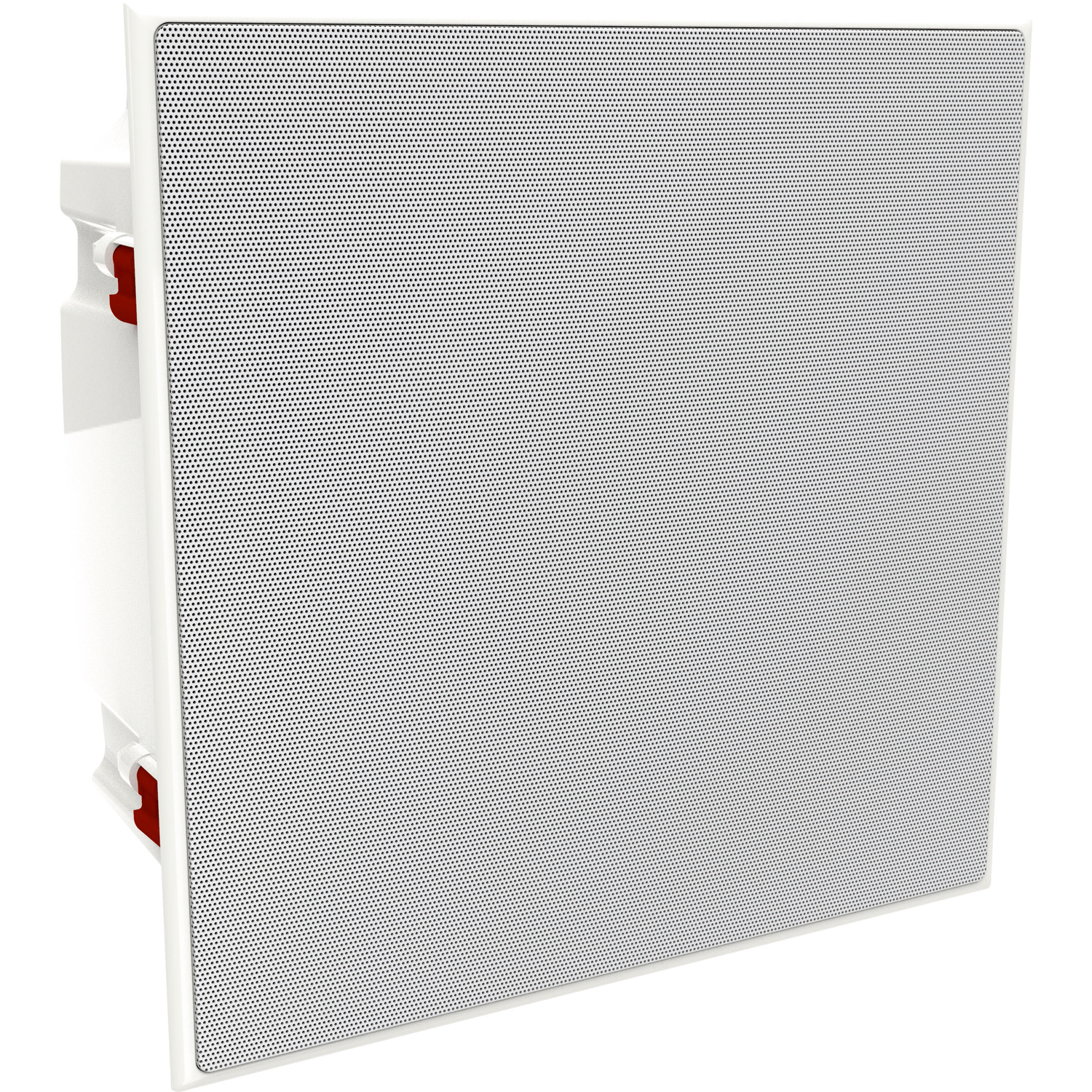

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and
2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
Details:
- built-in back-box ensures well-balanced sound in any installation and protects against dust and dirt
- 3-way, angled-baffle design
- drivers are angled for better off-axis response compared to drivers that point straight down
- 1" carbon dome tweeter
- 4" FST (Fixed Suspension Transducer) Continuum cone midrange driver
- dual 5" Aerofoil Profile bass drivers
- frequency response: 55-28,000 Hz (±3dB)
- recommended amplifier power: 25 to 200 watts
- nominal impedance: 8 ohms
- sensitivity: 90 dB
- magnetic grille is paintable to match your décor
Three-way design for ultra-smooth sound
The CCM7.3 S2 employs a three-way design to create engaging, lifelike sound in your room.
It features two of Bowers & Wilkins' 5" Aerofoil™ Profile drivers for punchy bass, and a FST™ (Fixed Suspension Transducer) Continuum™ cone midrange driver for articulate mids.
Smooth, natural highs come courtesy of a 1" carbon dome tweeter.

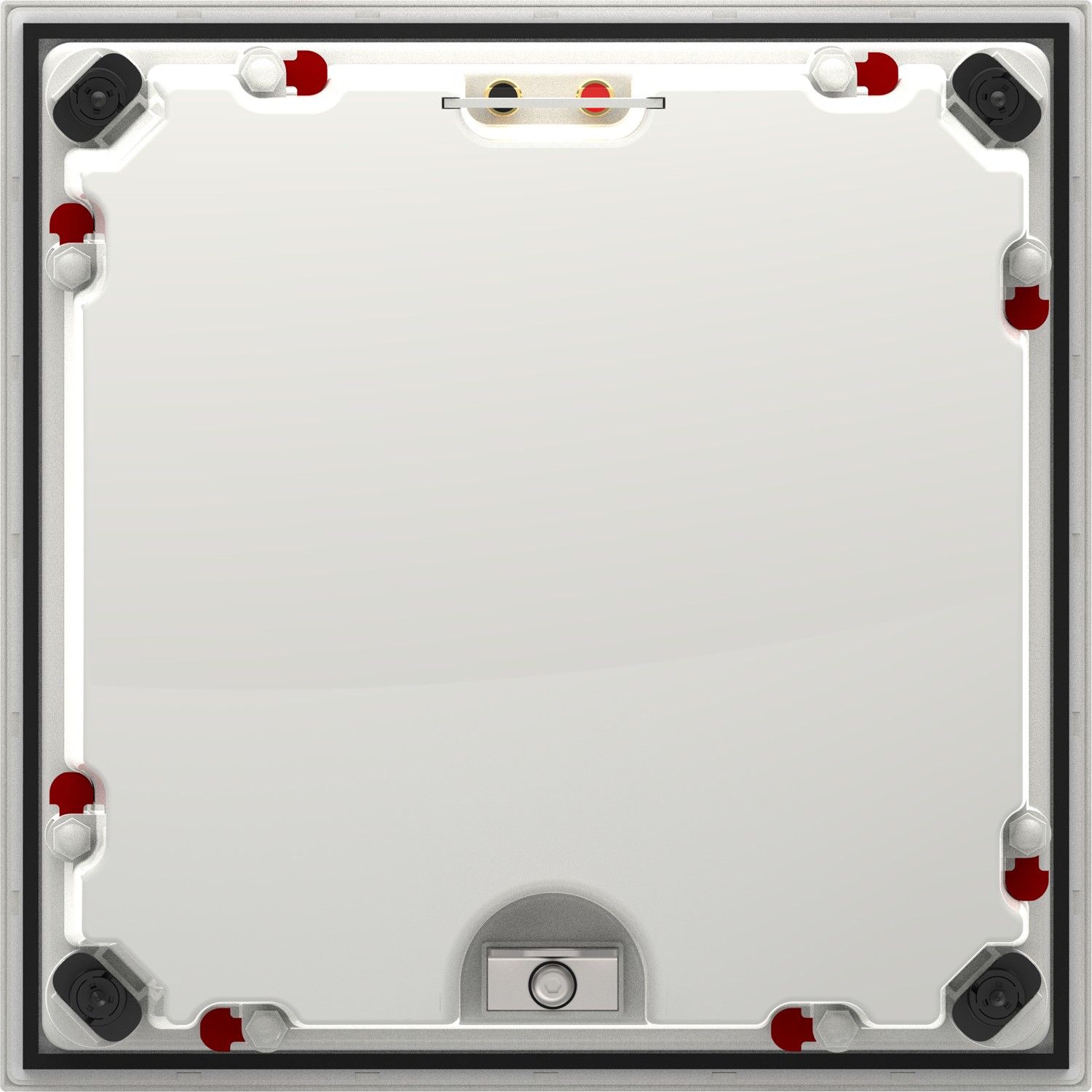

A built-in enclosure elevates performance
One of my favorite features of the CCM7.3 S2 is the back-box that's built onto the speaker.
This carefully designed enclosure helps this speaker deliver consistently focused, well-balanced sound no matter what kind of space is behind it in your ceiling. It also keeps dust and dirt out.
Specifications
Specifications
Technical features | Carbon Dome tweeter |
Continuum cone FST midrange | |
Aerofoil profile bass cones | |
Description | 3-way in-ceiling system |
Drive units | 1x ø25mm (1in) Carbon Dome high-frequency |
1x ø100mm (4in) Continuum cone FST midrange | |
2x ø130mm (5in) Aerofoil profile bass | |
Frequency range (-6dB) | -6dB at 52Hz and 33kHz |
Frequency Response -3dB | 55Hz - 28kHz ±3dB |
Sensitivity | 90dB spl (2.83Vrms, 1m) |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) |
<1% 90Hz - 33kHz | |
<0.5% 120Hz - 33kHz | |
Nominal impedance | 8Ω (minimum 3.1Ω) |
Recommended amplifier power | 25W - 200W into 8Ω on unclipped programme |
Frame height | 355mm (14in) |
Frame width | 355mm (14in) |
Depth | 194.5mm (7.66in) |
Cut-out height | 332mm (13.1in) |
Cut-out width | 332mm (13.1in) |
Cut-out height w/PMK | 335mm (13.2in) |
Cut-out width w/PMK | 335mm (13.2in) |
Protrusion | 8mm (0.3in) |
