Description
Description

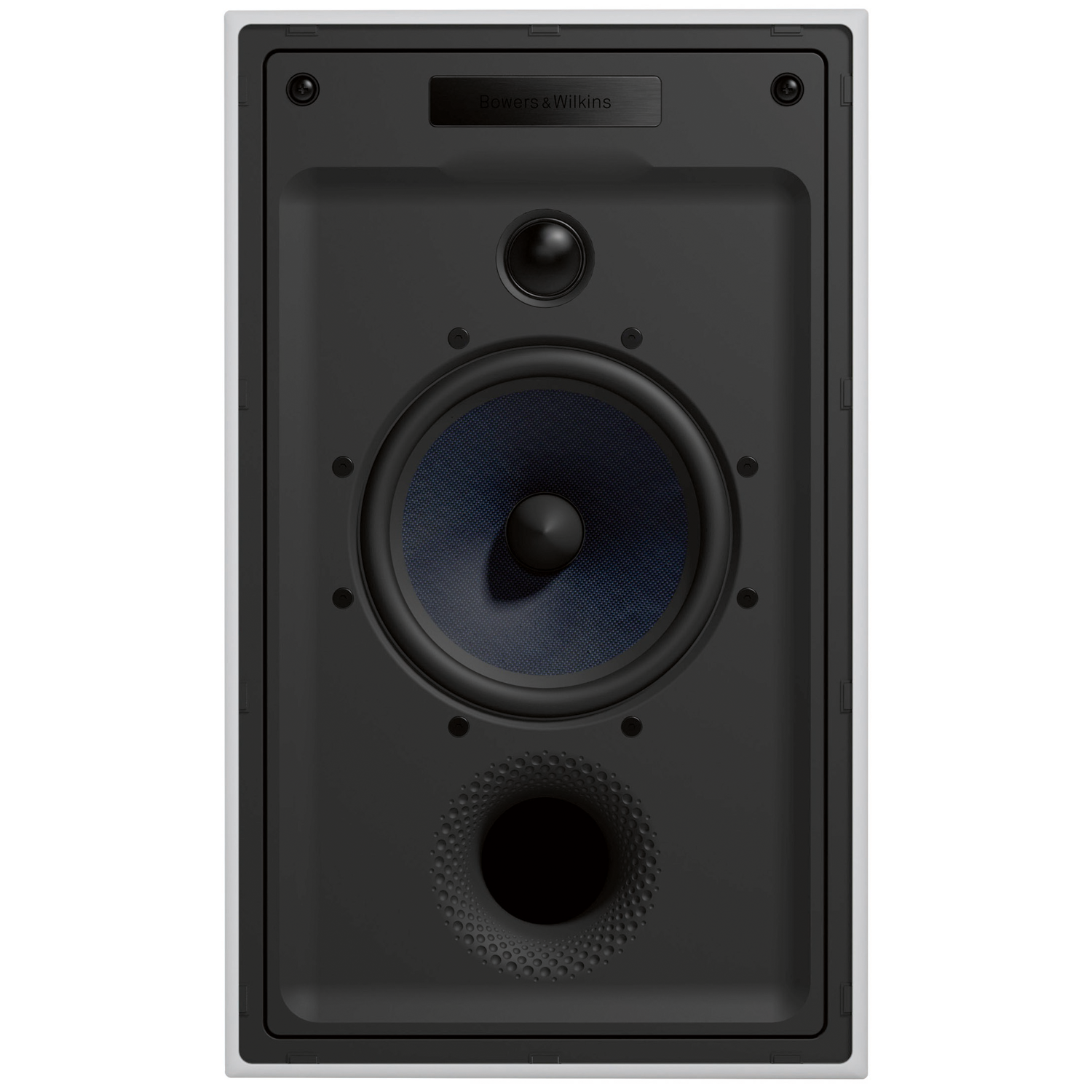

The CWM7.4 features a 150mm (6in) bass/mid-range driver set in a die-cast chassis and a Nautilus™ tube loaded 25mm (1in) soft dome tweeter. With a critically formed baffle constructed from glass reinforced ABS, the speaker features a scallop under the tweeter which creates the perfect roll off for high frequencies resulting in a more accurate reproduction of sound. Utilising the best quality components, such as having Mundorf components on the crossover, combined with proven technologies such as Flowport™ ensures that this speaker provides impressive sound reproduction.
Bowers & Wilkins remains at the forefront of speaker innovation thanks to our ongoing investment in technology. The CI700 Series – In-wall features Nautilus™ tweeters and FST Aramid fiber midrange drive units while a hinged reservoir box increases the internal volume of the speakers.The 700 Series – In-wall speakers are designed to be as flexible as possible. A range of different sizes and configurations allows you to select the perfect system for your needs. This serie is all about maximising performance in the minimum amount of space.
Full & vibrant sound.
Retrofitting speakers can cause a reduction in volume around the speaker.
- To compensate for this we’ve created a hinged reservoir box to increase the internal volume:
- Improved low frequencies.
- Better overall soundstage.
You’ll be guaranteed a full, vibrant sound, no matter how restricted your space.
Natural high frequencies.
The Nautilus™ tube-loaded tweeter has been a feature of the CT700 Series since the beginning. And now you’ll also find this high performance technology in CI700 In-wall.
- Results in a more focussed, natural high frequency sound.
- Zero coloration from the back of the speaker.
- Much purer sound from the front.
- Absorbs any unwanted sonic radiation.
Flowport™
For great bass, you need a regulated supply of air. That’s where our Flowport™ venting system comes in.
- Air passes in and out of the speaker as smoothly and soundlessly as possible.
- The surface is covered in tiny dimples.
Result
- Natural low frequencies.
- Improved bass performance.
- Great bass.
CT700 Series.
700 In-wall shares many technologies with the mighty Custom Theatre 700 Series.
- Easy to create a home theatre set-up with the CT700 Series.
- Mixes and matches speakers from both ranges.
Specifications
Specifications
| Description | 2-way in-wall system |
| Drive units | 1x ø25mm (1in) Nautilus™ tube loaded soft dome tweeter, 1x ø150mm (6in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 47Hz – 28kHz |
| Recommended Amp Power | 25 – 150w |
| Sensitivity SPL (2.83V, 1m) | 89dB |
| Impedance Nominal (min) | 6Ω (5Ω) |
| Frame height | 415mm (16.5in) |
| Frame width | 251mm (10in) |
| Cut-out height | 390mm (15.4in) |
| Cut-out width | 226mm (8.9in) |
| Cut-out height w/PMK | 395mm (15.6in) |
| Cut-out width w/PMK | 232mm (9.1in) |
| Depth behind surface | 102mm (4.in) |
| Reservoir box height | 460mm (18.1in) |
| Reservoir box width | 220mm (8.7in) |
| Reservoir box depth | 60mm (2.4in) |
| Protrusion | 8mm (0.32in) |
