Description
Description

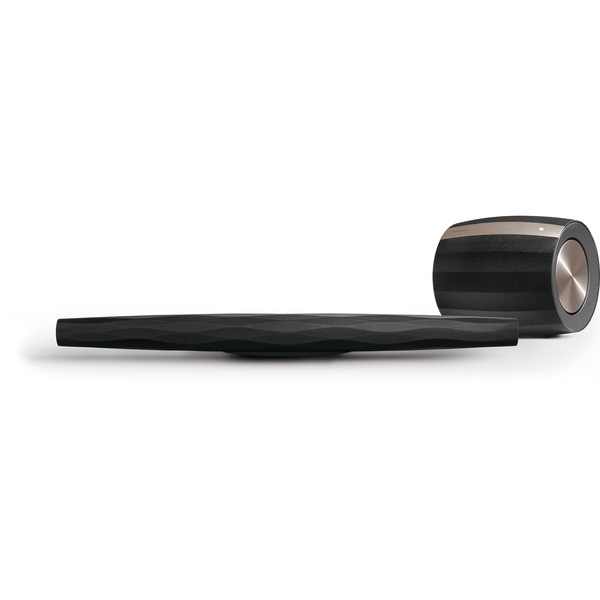

BOWERS & WILKINS Formation Bar
The power and definition to immerse you in your favorite movie soundtracks or bring your music to life, with the discreet good looks to fit into any home. Formation Bar will put you right at the heart of the action.
- 3-channel sound bar
- three 1" double dome tweeters and six 2-1/2" woven glass-fiber cone bass/midrange drivers
- total system power: 240 watts (6 x 40W)
- frequency response: 40-28,000 Hz
- Dolby Digital decoding
- Dynamic EQ optimizes the sound in real time
- optical digital audio input for connection to TV
Hear every detail
Nine high-quality drivers, including a dedicated three-driver center channel, deliver even the finest details in full.
Get surrounded
Formation Bar can partner easily with Bass and Flex to create a high-performance wireless surround-sound system.
Ultimate compatibility
Able to play 24-bit/96kHz audio via the Bowers & Wilkins Music App, Wi-Fi, Apple® AirPlay 2®, Bluetooth, Roon and Spotify Connect.
Front-row power
The Bar’s 240 watts of power is more than enough to deliver even the most action-packed Hollywood soundtrack in full.
BOWERS & WILKINS Formation Bass
Power is nothing without control – so Formation Bass digs deep and hits hard, but does so with complete command. Enjoy the sort of profound low-frequency presence that makes every song an occasion and every movie an event.
- For Use with Formation Wireless Speakers
- Two 6.5" Woofers
- Up to 250W Power Output
- 20 to 150 Hz Frequency Response
Dual driver technology
Thanks to its opposed dual driver arrangement, Bass delivers clean low-end punch with lower distortion than ever.
Constantly optimized
Dynamic EQ allows Bass to monitor and adjust its output in real time, for optimum performance in any eventuality.
Power and efficiency
250 watts sounds like a lot – and it is. Class D amplification makes Bass both high-efficiency and high-performance.
For any Formation
Bass works with the entire Formation range – so prodigious low-frequency action is assured in any circumstance.
Specifications
Specifications
Formation Bar
| General | |
| Design | Bar |
| Amplification | Self-powered |
| Separate Subwoofer | Optional |
| Wireless Surrounds | Optional |
| Number Of Channels | 3 |
| Surround Formats | |
| Dolby Digital | Yes |
| DTS | No |
| Dolby Atmos | No |
| DTS:X | No |
| Audio Enhancements | |
| Dialogue Enhancement | No |
| Auto Volume | No |
| Night Mode | No |
| Virtual Surround | Surround mode |
| Auto Calibration | No |
| Audio Connections | |
| Optical Digital Inputs | 1 |
| Coaxial Digital Inputs | None |
| HDMI ARC Input | No |
| HDMI eARC Input | No |
| 3.5mm Stereo Analog Inputs | None |
| RCA Stereo Analog Inputs | None |
| USB Type-A Input | No |
| Subwoofer Output | Wireless |
| Audio Specs | |
| Tweeter | 1" Dome (3) |
| Midrange | None |
| Woofer | 2.5" Cone (6) |
| Subwoofer Driver | Not Given |
| Enclosure | Sealed |
| System Frequency Response | 40-28k Hz |
| Sound Bar RMS Power | 240 |
| Subwoofer RMS Power | N/A |
| Video Connections | |
| HDMI Inputs | None |
| HDMI Outputs | None |
| Video Specs | |
| HDMI Version | N/A |
| HDMI Video Pass-through Resolution | N/A |
| HDR Video Compatible | No |
| Control | |
| Includes Remote | Yes |
| Voice Control | Alexa optional |
| Control by App | Apple iOS, Android |
| HDMI CEC | No |
| Remote IR Passthrough | No |
| Learns TV Remote | Yes |
| Audio Streaming | |
| Bluetooth Connectivity | Built-in 4.1 |
| Bluetooth Audio Playback | Yes |
| Bluetooth Transmitter Mode | No |
| Online Music Sources | via Music B&W app |
| Apple AirPlay | AirPlay 2 |
| Chromecast built-in | No |
| Amazon Music | No |
| Apple Music | |
| Pandora | No |
| SiriusXM | No |
| Spotify | Yes |
| TIDAL | Yes |
| TuneIn | Yes |
| YouTube Music | No |
| Files on Your Network | No |
| Wi-Fi Networking | |
| Built-in Wi-Fi Version | 802.11n |
| Bands | 2.4 GHz |
| Other Info | |
| Wall-mountable | Yes |
| Mounting Bracket Included | Yes |
| Sound Bar Size (inches) | 4-3/8H x 48-15/16W x 4-5/16D |
| Sound Bar Weight | 12.1 lbs |
Formation Bass
|
Subwoofer
|
|
| Subwoofer Type | Active |
| Amplifier Power Rating | 250 W |
| Drivers | 2 x 6.5" / 16.5 cm |
| Frequency Response | 20 to 150 Hz |
| Amplifier Class | Class-D |
| Inputs/Outputs | Wireless (Audio) 1 x RJ45 Input (Network)1 x USB-C Input (Service) |
| Phase Adjustment | None |
| Wireless Connection Protocols | Proprietary, Wi-Fi |
|
Power
|
|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 6 W (Standby) |
|
Physical
|
|
| Dimensions | 17.3 x 9.2 x 9.4" / 440 x 234 x 240 mm |
| Weight | 26.7 lb / 12.1 kg |
