Pressure Coupled Radiator Design
The AW series outdoor speaker provides clear, high-definition sound by pressure-coupling a BDSS technology driver to a racetrack-shaped mid/bass radiator cleverly placed on the opposite side of the enclosure. This technique offers a total bass radiating area greater than an 8-inch woofer to belt out powerful bass that fills outdoor areas.
-
Fully sealed design provides indoor speaker sound for the great outdoors
-
Active driver pressure-coupled to racetrack Planar Low Bass Radiator for rich low end
-
Rugged PolyStone™ enclosures ensure a great performance even in the elements
-
Galvanized steel mounting brackets give 360-degree placement flexibility
BDSS Technology
Definitive Technology's Balanced Double Surround System (BDSS) driver offers a wide-bandwidth accurate frequency response, broad dispersion, low distortion, and detail retrieval; so you hear more the music with greater accuracy and enjoyment
Polystone Non-Resonant All-Weather Enclosure

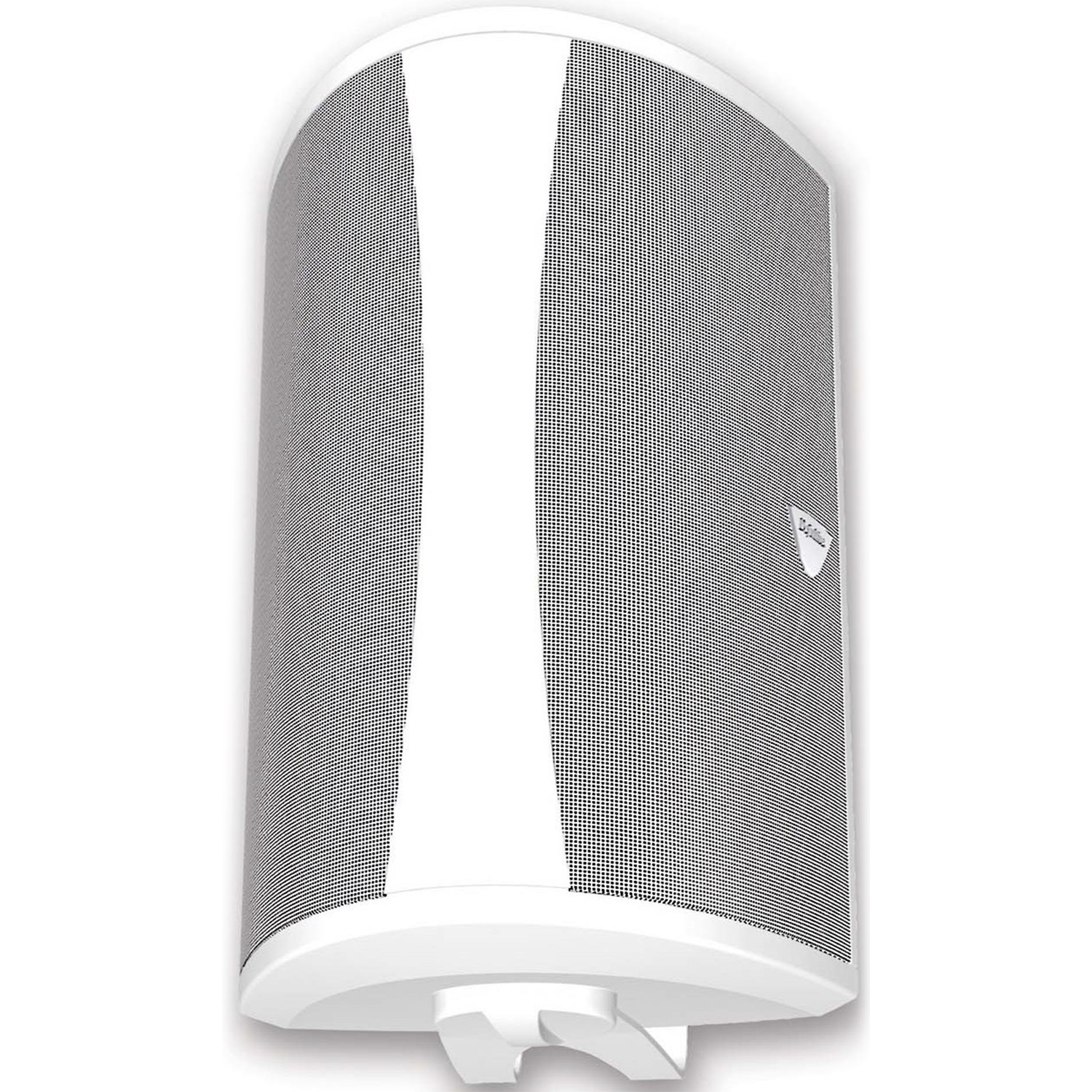

The Definitive Technology AW6500 features a fully sealed (air and water tight) design, aluminum grilles, and rugged PolyStone enclosure, which allow it to be fully exposed to the elements and still reliably deliver their indoor speaker sound quality for years of outdoor listening enjoyment.
Balanced Double Surrounds
The speaker's balanced double surrounds support the cone at two points to provide better mechanical stability for longer, more linear excursion, and improved damping to suppress parasitic cone resonance.
Mineral-Filled Polymer Cone
The speaker features a deeply drawn mineral-filled polymer cone engineered using sophisticated 3D modeling techniques for wide range performance.
Waveguide
The cone's integrated waveguide smoothes off-axis response for broad, even dispersion and better imaging.
High Temperature Voice Coil
The driver's high temperature, oversized, lightweight vented voice coil offers improved power handling and quick transient response. The voice coil is also lengthened to increase linearity and lower distortion.
Magnet Structure
The driver's magnetic system is optimized by finite element analysis to maximize magnetic flux in the gap for high efficiency and linear excursion.
Die-Cast Alloy Basket
The die-cast alloy basket minimizes ringing and vibration while the open area minimizes back wave reflection.
Specifications
Specifications
Accessories
-
Included Accessories
-
(1) Wall Bracket with Thumb Screws
-
All-Weather Speaker
- Orientation
-
Horizontal
-
Vertical
-
-
Height
8.88" (22.56 cm)
-
Width
14.44" (36.68 cm)
-
Depth
9.25" (23.5 cm)
-
Weight
9.2 lbs (4.17 kg)
-
Driver Enclosure Type
PolyStone
-
Driver Complement
-
(1) 1" (2.54 cm) d (Round) Pure Aluminum Dome - Tweeter
-
(1) 6.5" (16.51 cm) d (Round) BDSS Bass - Mid/Woofer
-
(1) 5.5" (13.97 cm) h x 10" (25.4 cm) w (Oval) Pressure Driven - Bass Radiator
-
Audio Quality
-
Total Frequency Response
40 Hz → 30 Hz
-
Nominal Impedance
8 ohms
-
Sensitivity (1 watt @ 1 meter)
92 dB
Crossover
-
Type
A/V Receiver Crossover Setting
-
Peak Power Handling
200 watts
-
A/V Receiver Crossover Settings
Large (40 Hz)
Inputs
-
Audio Inputs
-
Speaker Inputs

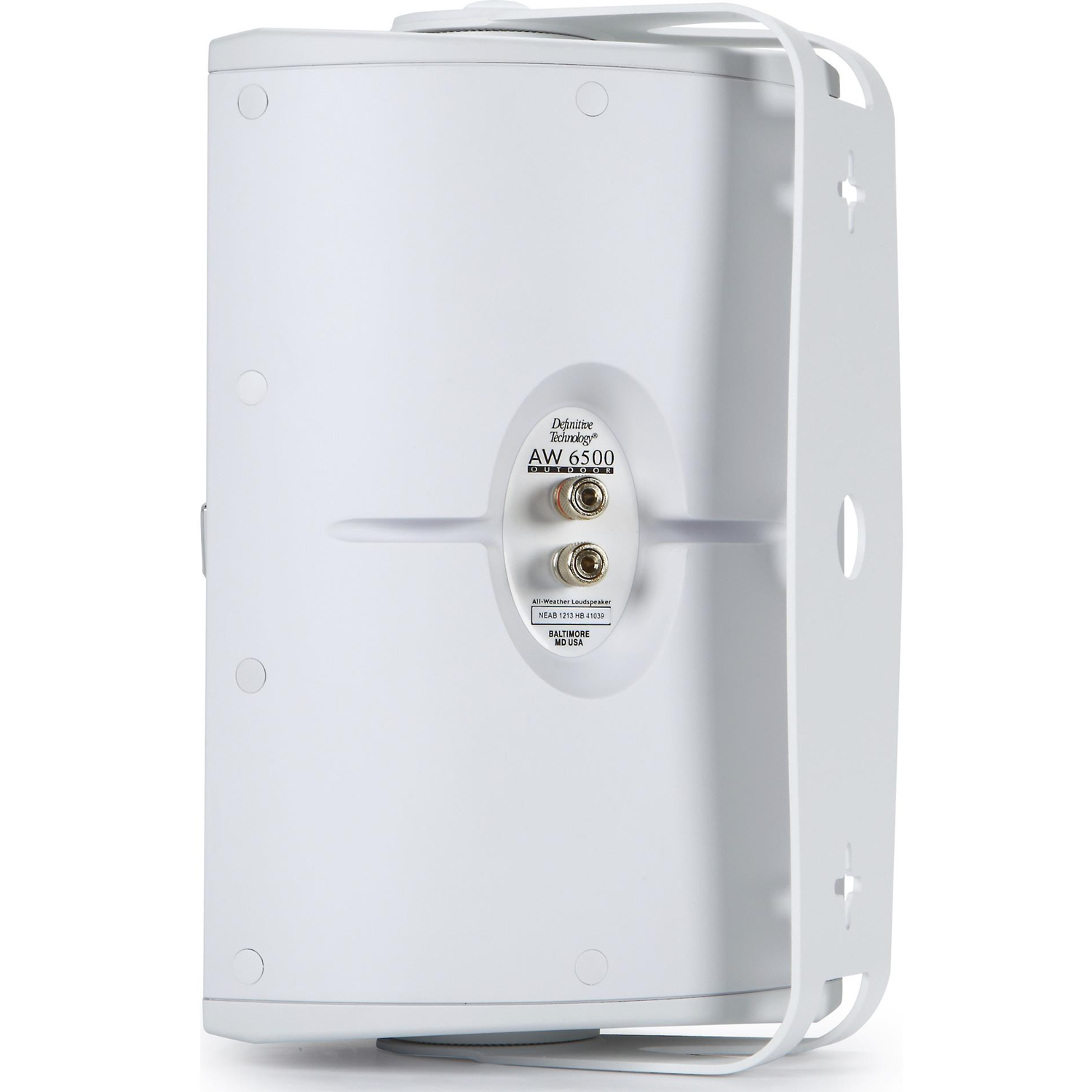

(1) Pair of 5-Way Binding Posts - Gold Plated
Item Condition
Item Condition
Re-certified products are returned/open box products that may have been repaired (if necessary) and certified by Definitive Technology to match Definitive's performance, functionality, and reliability standards of new product. Re-certified products may have minor cosmetics blemishes and/or imperfections, unfortunately we can't provide specific details. We DO NOT sell physically damaged products. Most products are rated a 9 or better on a scale of 1-10. You should expect some signs of usage.
The manual and accessories are included with most of our re-certified items, and packaging may or may not be original. Cosmetic blemishes and imperfections are not covered by the warranty and are considered normal. Definitive Technology, Inc., warrants to the original retail purchaser only. This warranty will terminate automatically prior to its stated expiration if the original retail purchaser sells or transfers the product to any other party.
Definitive Technology, Inc., warrants, to the original retail purchaser only, that the HOME LOUDSPEAKER(S), and PASSIVE CROSSOVER COMPONENT(S) on this Definitive Technology Loudspeaker Product will be free from defects in material and workmanship for a period of two (2) years from the date of original retail purchase from Accessories4less.
