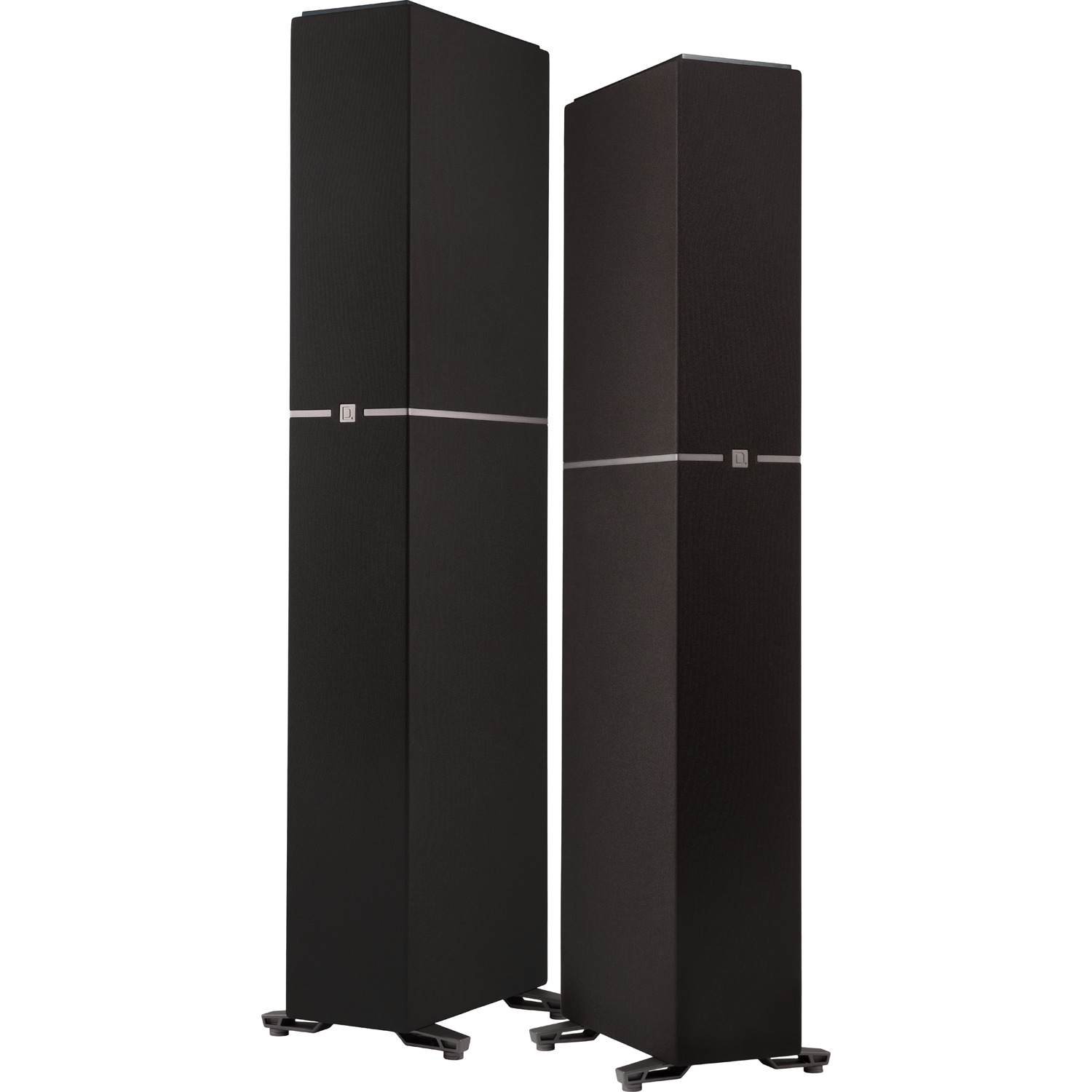

Get the best of both worlds when you build a home theater surround system with the large-sized Dymension DM70 3-Way Floorstanding Speaker from Definitive Technology. The speaker combines bi-polar speaker arrays with a 3XR-optimized active 10" subwoofer/dual passive radiator system with a 250W (peak) Class-D amp. Together they fill your room with immersive and lifelike sound, and a booming bass you can feel—no extra subwoofers required. The front- and rear-facing bi-polar arrays consist of a pair of 5.25" midrange woofers and a 1" tweeter each. Complimenting the powerful low-end with crisp highs, detailed mids, and an overall balanced sound throughout the room. To elevate your surround experience even further, a top-mounted connection can accept an optional DM90 height module.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Details:
- tower speaker with built-in 10" powered subwoofer
- cloth grille-wrapped enclosure
- adjustable speaker feet include spikes and pads for a range of flooring surfaces
- Dolby Atmos® and DTS:X™ ready with optional Definitive Technology DM90 add-on height module (sold separately)
Bipolar driver array:
- fully balanced design — two identical sets of drivers for the front and rear:
- 1" aluminum oxide dome tweeter with Teteron (cloth) suspension for smooth, extended highs
- dual 5-1/4" BDSS mid/bass drivers

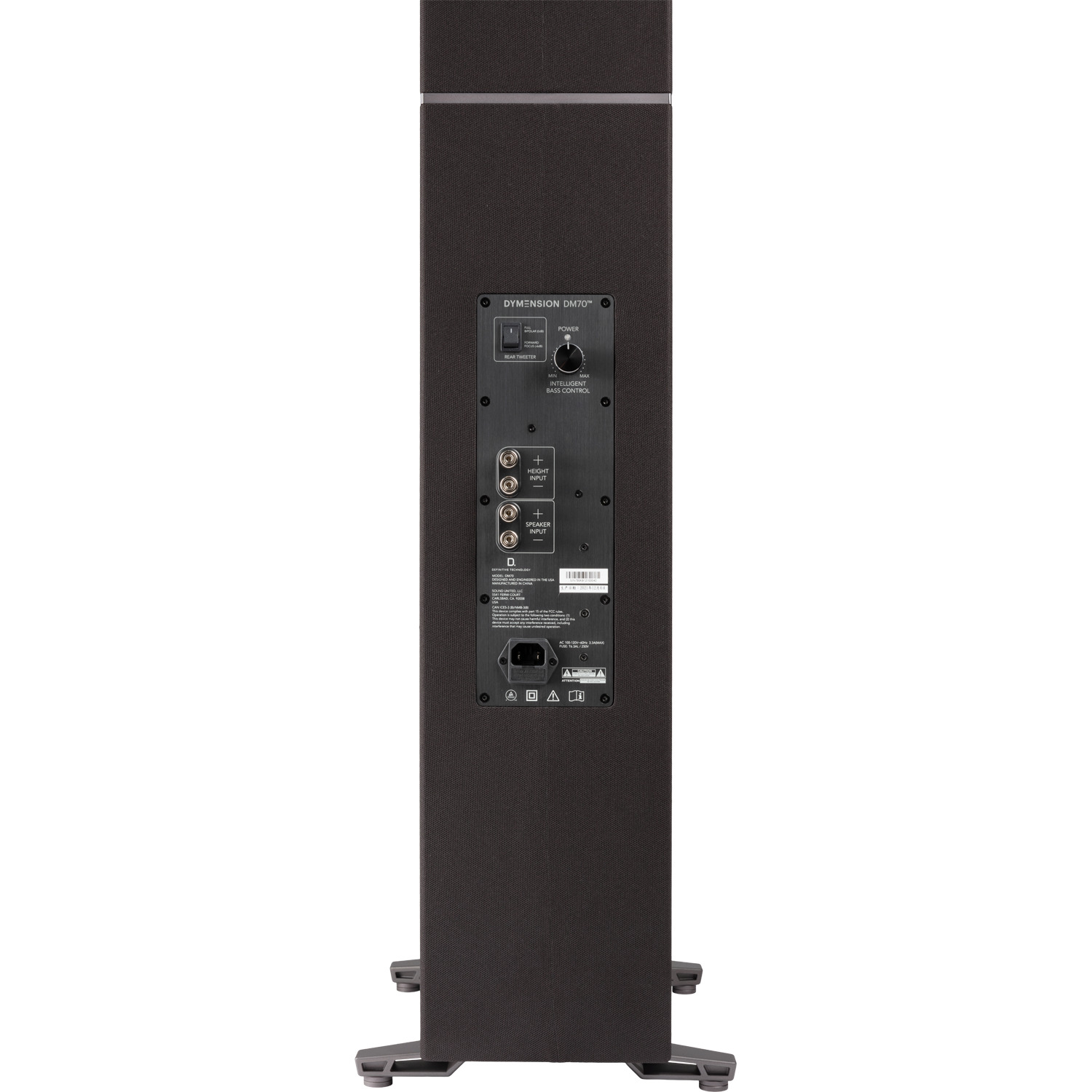

- back-panel switch lets you set rear-firing drivers for "balanced" or "forward-focused" sound profile
- Balanced Dual Surround System (BDSS) driver technology places rubber surrounds on both the outer and inner edges of each speaker cone for improved control and clarity
- Linear Response Waveguide reduces the woofer's back wave for smoother midrange response
Built-in powered subwoofer:
- one 10" active woofer
- two 10" passive radiators increases the sound-radiating surface area for enhanced bass output
- patented Intelligent Bass Control provides precise bass level adjustments while maintaining accurate midrange tonal balance
- 180-watt built-in Class D amplifier for the built-in sub
Dolby Atmos & DTS:X Ready
When you're ready to take your home theater system to the next level, you can pop the top panel of the DM70 to expose a speaker connection that is designed to accommodate a DM90 height module. With a DM90 speaker attached, you can take advantage of Dolby Atmos or DTS:X object-based surround, adding height effects for audio that completely envelops you from all sides.
Intelligent Bass Control
You can control the level of bass you want via a dedicated knob on the DM70, but don't worry about turning it up. Built-in intelligent bass processing works to seamlessly blend the bass with the mids and highs as you dial it up, so the increased low-end sound doesn't interfere with sound effects or dialogue.
BDSS & Linear Response Waveguide
The four 5.25" midrange woofers in the DM70 feature BDSS (Balanced Double Surround System) and Linear Response Waveguide technology. Together, they improve sound excursion, midrange detail, and extend off-axis dispersion, resulting in a large and immersive soundstage.
Build Your Home Theater
The DM70 is timbre-matched to seamlessly integrate with other Definitive Technology series of speakers, such as other speakers in the Dymension, Dymension CI, and Mythos lines.
Blends into the Room
Wrapped in acoustically transparent black grille cloth, the DM70 is made to disappear into your room. Without any distracting LED lights, the DM70 keeps your focus on what you're watching.
Stable Platform for Any Floor
In order to keep the DM70 stable on virtually any type of flooring, Definitive Technology includes four adjustable glides for hard surfaces, and four adjustable spikes for carpeting.
Specifications
Specifications
| General | |
| Enclosure | Passive Radiator |
| Finish | MDF/Cloth |
| Color | Black |
| Tweeter | Hard-Dome |
| Tweeter Size (inches) | 1 |
| Midrange Size (inches) | 5.25 |
| Woofer Size (inches) | 10 |
| Woofer Composition | Composite Polymer |
| Woofer Surround | Rubber |
| Built-in Powered Sub | Yes |
| Dolby Atmos Drivers | Optional |
| Connector Type | 5-Way post |
| Bi-amp Inputs | No |
| Specifications | |
| Power Range | 50-300 |
| Frequency Response | 30-23k Hz |
| Sensitivity | 90 dB |
| Impedance (Ohms) | 4 |
| Subwoofer Amp Power | 180 |
| Height (inches) | 47-7/16 |
| Width (inches) | 11-5/16 |
| Depth (inches) | 17-5/16 |
| Weight | 74.1 lbs |
Item Condition
Item Condition
Re-certified products are returned/open box products that may have been repaired (if necessary) and certified by Definitive Technology to match Definitive's performance, functionality, and reliability standards of new product. Re-certified products may have minor cosmetics blemishes and/or imperfections, unfortunately we can't provide specific details. We DO NOT sell physically damaged products. Most products are rated a 9 or better on a scale of 1-10. You should expect some signs of usage.
The manual and accessories are included with most of our re-certified items, and packaging may or may not be original. Cosmetic blemishes and imperfections are not covered by the warranty and are considered normal. Definitive Technology, Inc., warrants to the original retail purchaser only. This warranty will terminate automatically prior to its stated expiration if the original retail purchaser sells or transfers the product to any other party.
Definitive Technology, Inc., warrants, to the original retail purchaser only, that the HOME LOUDSPEAKER(S), and PASSIVE CROSSOVER COMPONENT(S) on this Definitive Technology Loudspeaker Product will be free from defects in material and workmanship for a period of two (2) years from the date of original retail purchase from Accessories4less.
