The SubAmp 600 puts control at your fingertips, with two discrete high-powered amplifiers in one convenient housing. Built to bolster the Definitive IWSub 10/10 and IWSub Reference in-wall subwoofers, this versatile outboard amplifier offers greater placement flexibility and optimal power for effortlessly driving one or two IWSubs in the same room or different zones.
- In-wall subwoofers reach incredible lows with this outstanding outboard amplifier
- Integrated dual amplifiers drive up to two subwoofers for maximum low-end control
- Volume, low-pass crossover and phase adjustments allow you to fine tune the room
- 5-way binding posts guarantee an optimal, secure connection
Convenient Size
High-powered amplifier and electronic crossover fits easily on a shelf or audio equipment rack to power Definitive In-Wall Subwoofers.
Understated Performance
Two discrete high-powered amplifiers with simple connections take deep bass impact to new heights.
Unprecedented Control

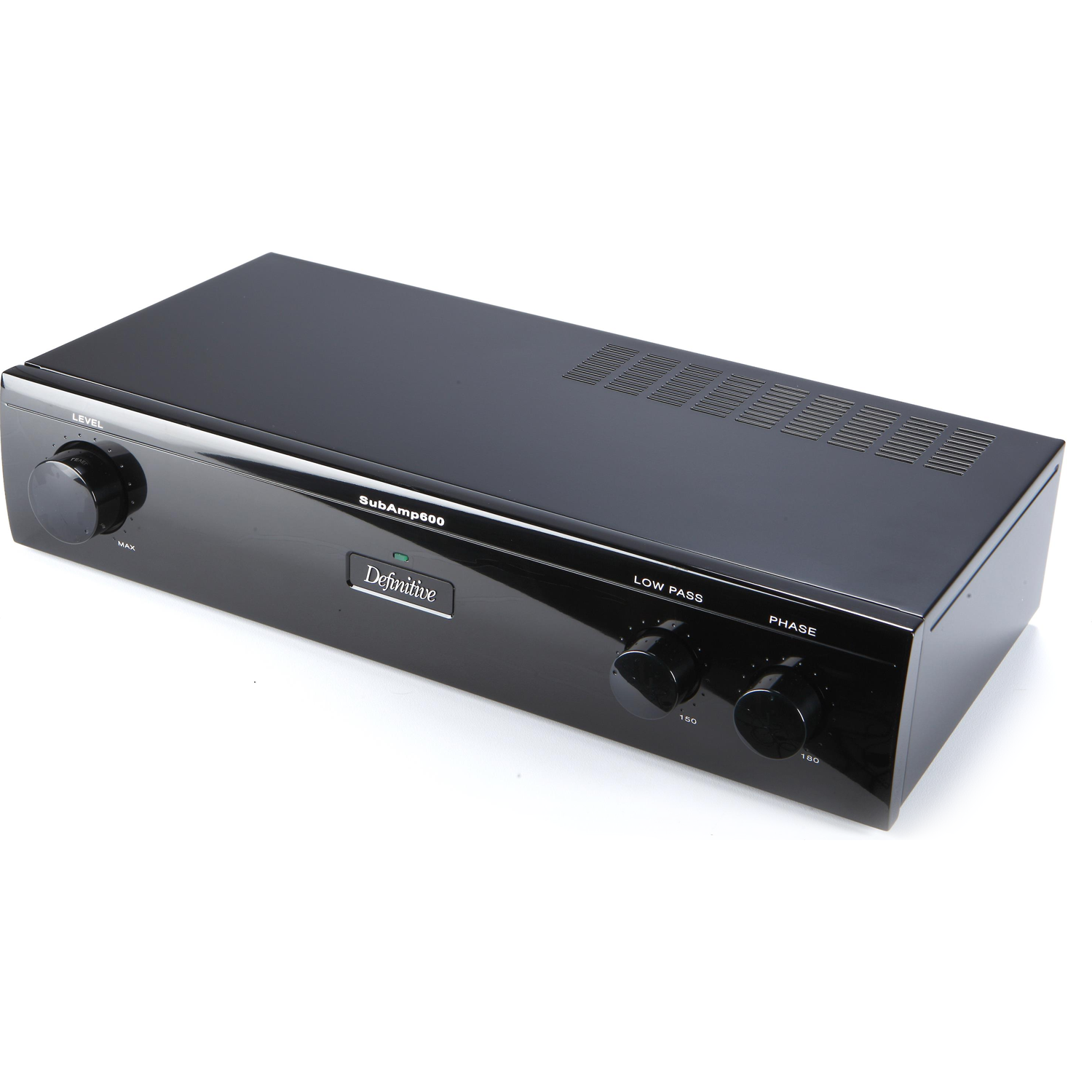

Dial in your system your way with volume, low-pass crossover and phase all easily adjusted with convenient, front-panel control knobs.
Solid, Stable Connections
5-way binding posts ensure the most secure speaker connections possible.
Specifications
Specifications
|
Control |
|
|---|---|
|
Crossover |
|
|
Low Pass Filter |
40 – 150 Hz, Continuously Variable |
|
Low Pass Filter Slope |
12 db per Octave |
|
Static High Pass Filter |
80 Hz (Active on High Level Outputs Only) |
|
Static High Pass Filter Slope |
12 db per Octave |
|
Phase Control |
|
|
Phase Settings |
0 – 180 degrees, Continuously Variable |
|
Remote Switching |
|
|
Remote Power Input |
12 volt Trigger (1/8″ Mini Plug) |
|

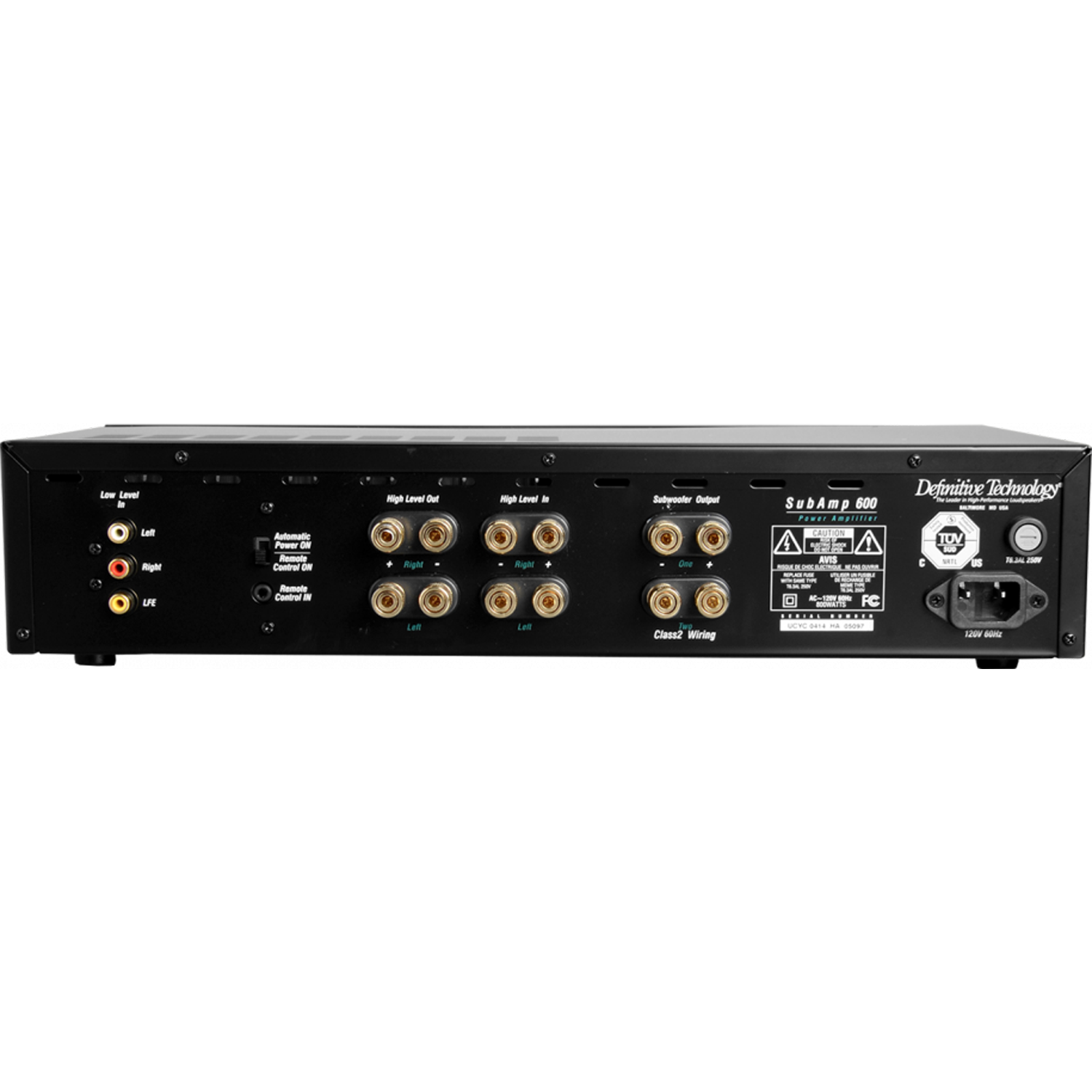

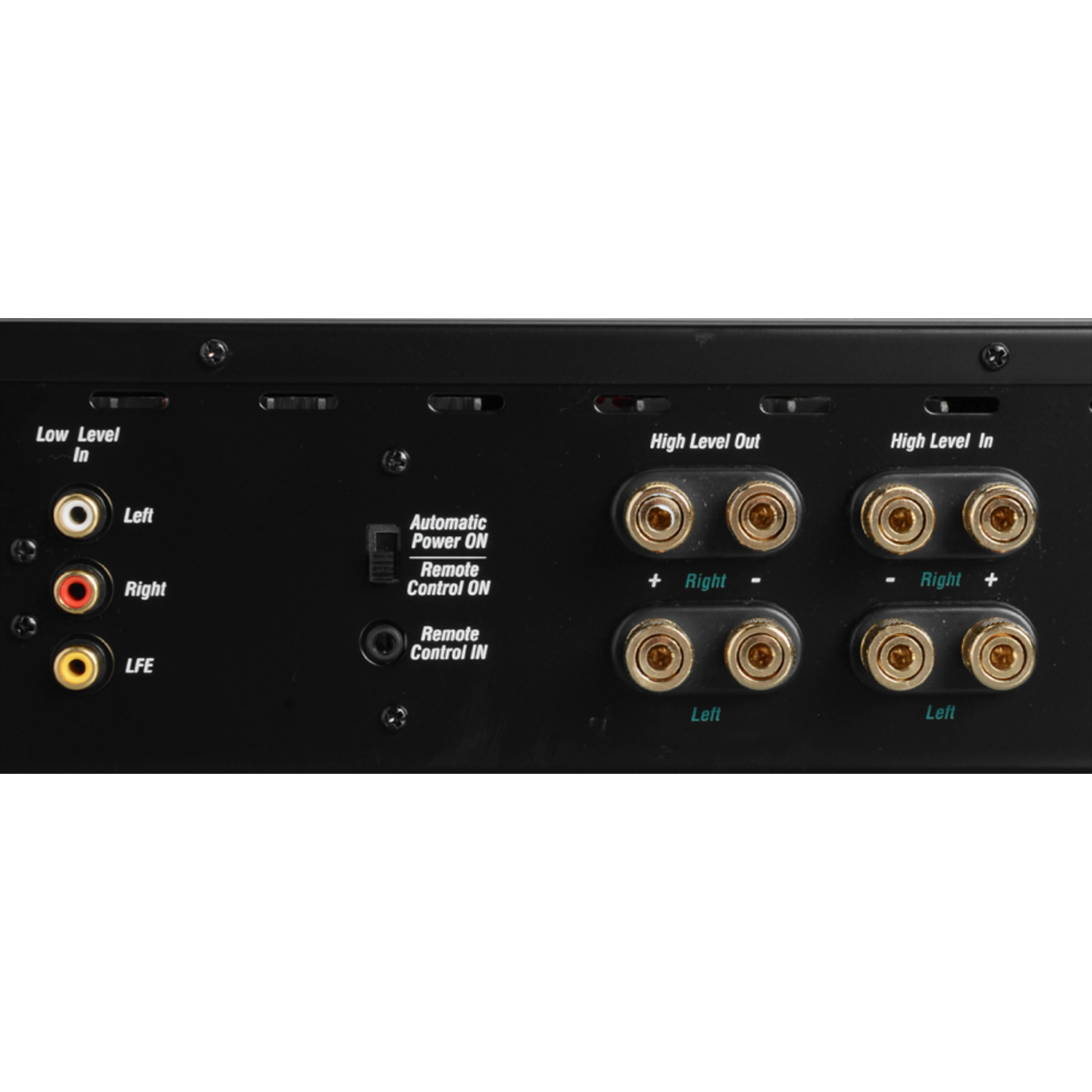

Audio Inputs |
|
|
LFE input |
1 (RCA) |
|
Speaker Level |
2 Pair (Speaker Cable) |
|
Stereo Line Level |
2 (RCA) |
|
Audio Outputs |
|
|
Speaker Level |
4 Pair (Speaker Cable) |
|
Amplifier |
|
|
Power Cycle |
|
|
US |
Switched or Auto On/Off: Signal Sensitive |
|
Power Requirements |
|
|
US |
110 volts A/C |
|
Fuse |
|
|
US |
6.3 amp 250 volt Slo Blo |
|
Installation |
|
|
Product Weight |
|
|
Out of Box |
25 lbs |
|
Dimensions |
|
|
Cabinet Dimensions |
|
|
Height |
3 7/16″ (8.73cm) |
|
Height with Feet |
3 11/16″ (9.37cm) |
|
Width |
17 1/16″ (43.34cm) |
|
Width with Rack Mount |
19 1/16″ (48.42cm) |
|
Depth |
9 5/8″ (24.45cm) |
|
Power |
|
|
Internal Amplifier |
|
|
Channels |
2 (Dual Mono) |
|
Power (One Channel Driven) |
275 watts |
|
Power (Two Channels Driven) |
230 watts |
