Description
Description

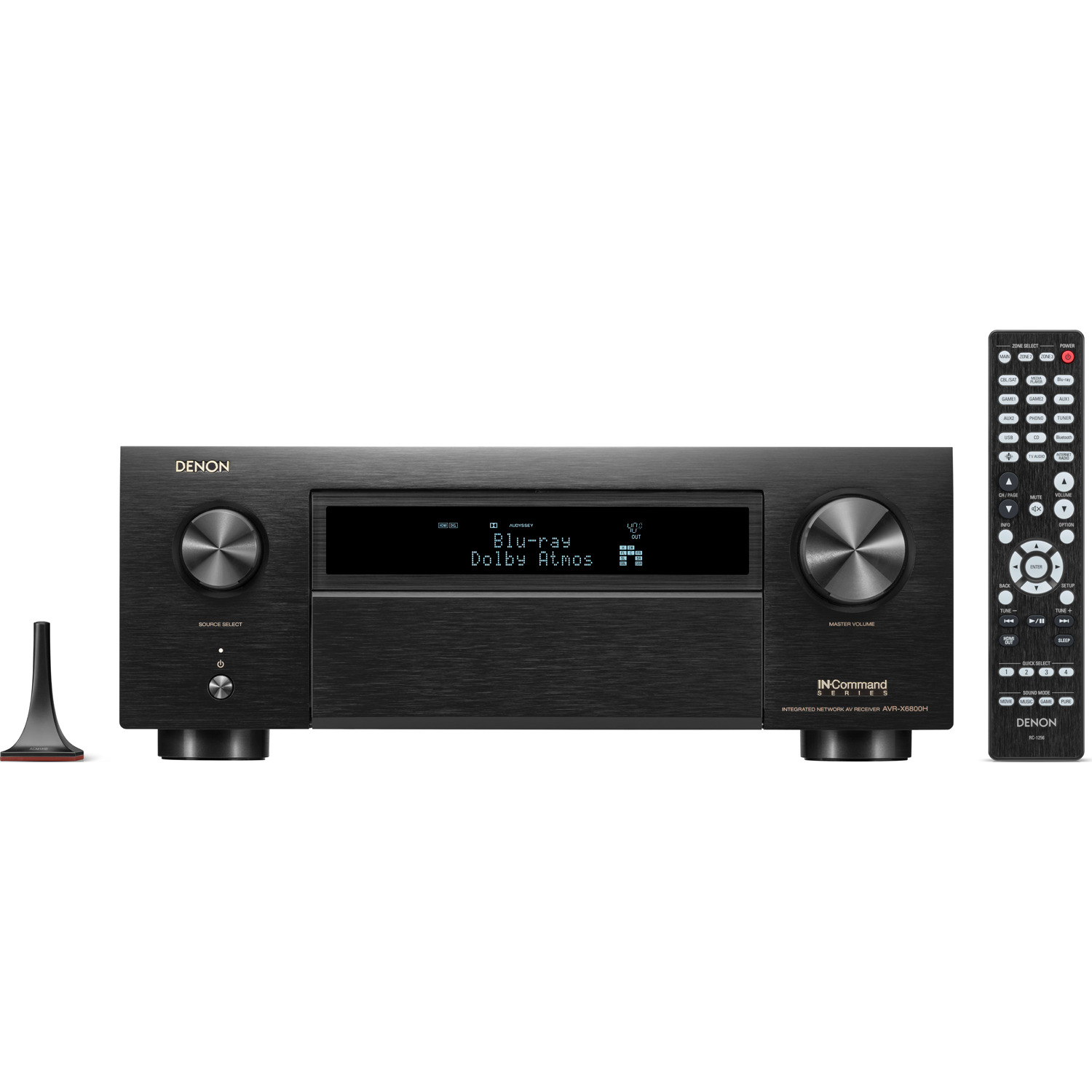

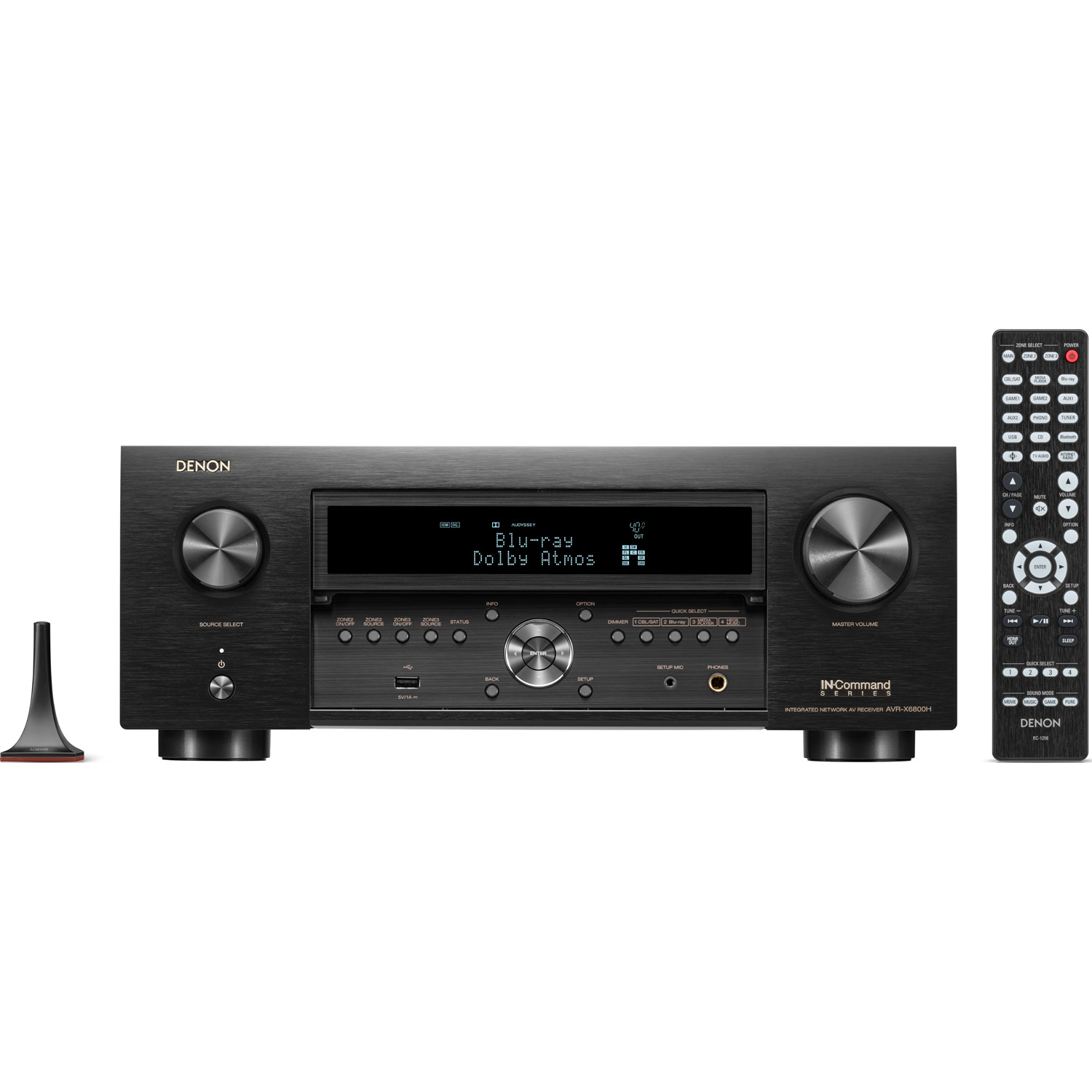

Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
CLICK HERE TO VIEW OWNERS MANUAL
- 11.4 channels
- 140W per channel
- 8K Ultra HD
- 3D Audio
- HEOS® Built-in
- Seven HDMI Inputs
The next level in home theater
Maximize your entertainment with a full suite of audio and video technologies plus smart features
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
Onboard Technologies
Specifications
Specifications
|
Multichannel Surround
|
|
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / Yes |
| DTS Neo:6 / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music | Yes / Yes / Yes / Yes |
| Dolby ProLogic Il / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes / Yes |
| Multichannel Stereo | Yes |
| Max. number of processing (preamp) channels | 13.4 |
|
Sound Enhancements
|
|

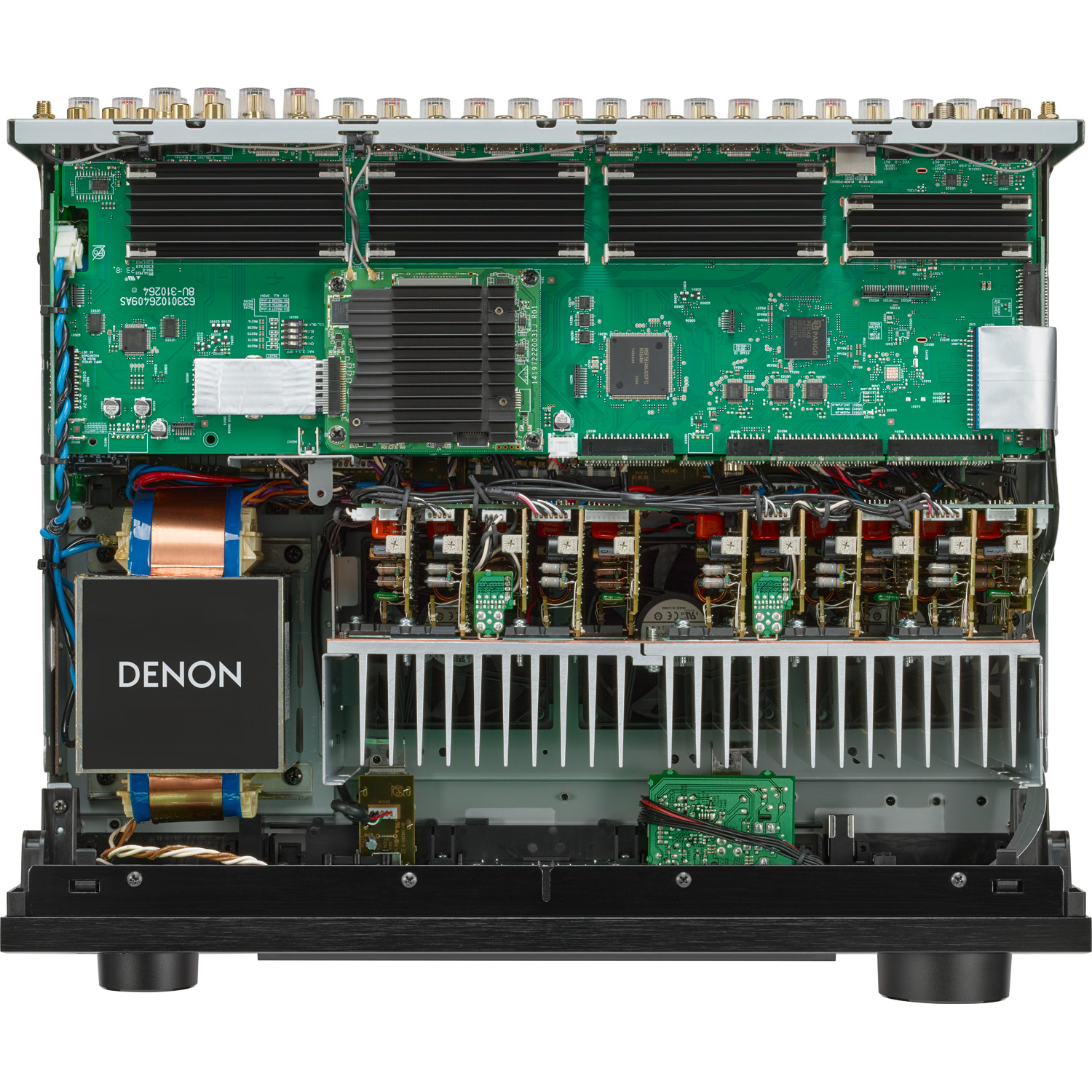

| Mono Block Power Amp Construction | Yes |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live upgradability | Yes |
| Compressed Audio Restorer | Yes |
|
Network
|
|
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes (With volume control) |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify Connect | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
|
HDMI
|
|
| HDMI Inputs: Back, Front | 7 / No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 1-Feb |
| Video conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue | Yes / Yes / Yes / Yes / No |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-Through for Gaming | Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 3D Signal Pass-Through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio capability | Yes |
| Audio Return Channel | ARC, eARC |
| Auto LipSync | Yes |
|
Multi-room / CI
|
|
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | Yes / Yes |
| Zone HDMI output from HDMI source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger output | 3 |
| HDMI Diagnostics | Yes |
|
Others
|
|
| Auto speaker setup by microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 2 Line FLD |
| Graphic User Interface - GUI | Modern HD GUI |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes / No |
| Firmware Update by Network / USB | Yes / Yes |
| Variable cross over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
|

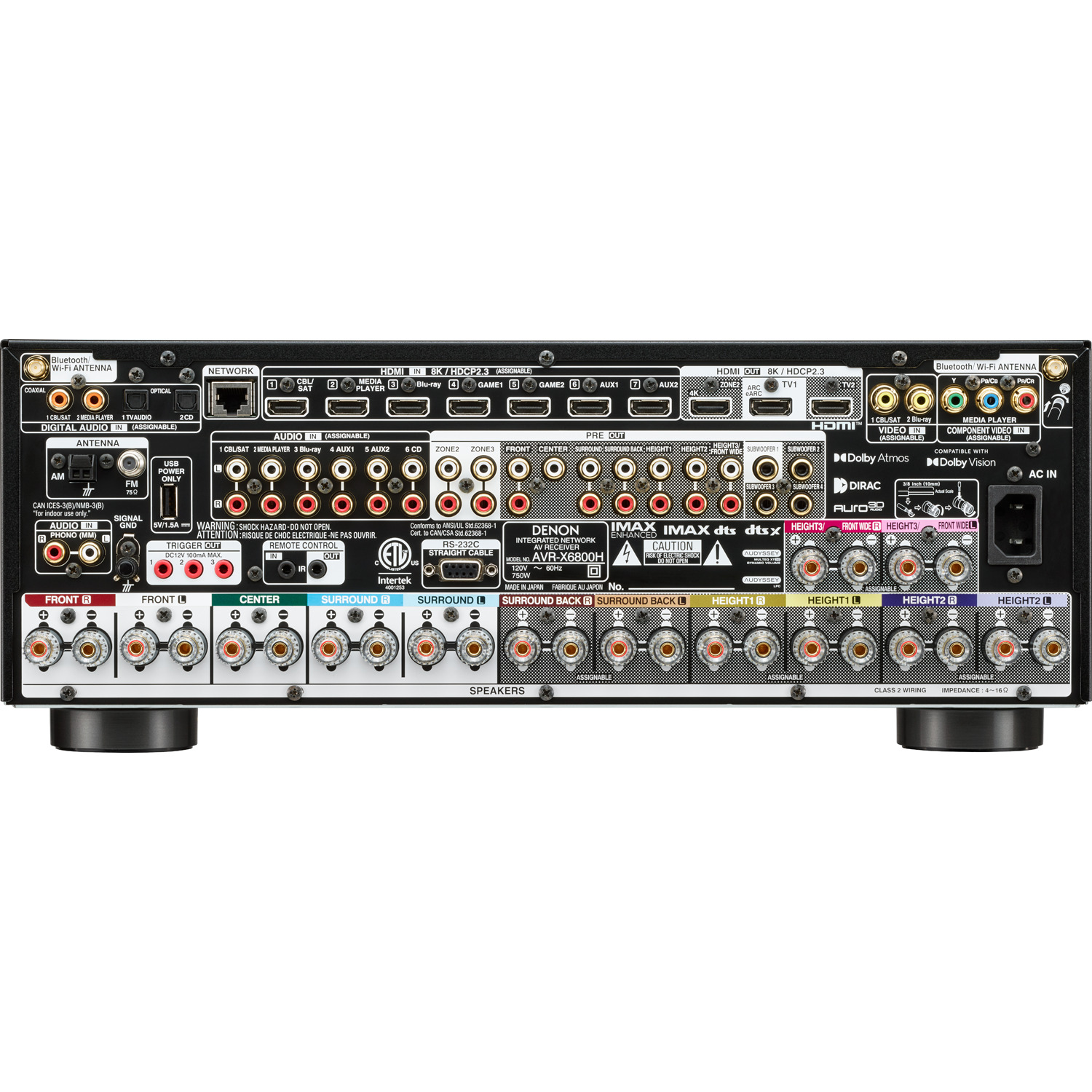

Inputs Outputs
|
|
| VIDEO | |
| Composite In / Out | 2 / No |
| Component In / Out | 1 / No |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| AUDIO | |
| Analog In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital in: Optical/Coaxial | 2 / 2 |
| Multi-Room Out: Analog/Digital | 2 / No |
| Multichannel Pre-out ) | Yes (13.4 |
| Subwoofer Out | 4 (independent) |
| OTHER | |
| Speaker Terminal: Gold-Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Bi-amp drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| USB Power Supply on Rear Panel | Yes |
| AM/FM Tuner | Yes |
|
Specifications
|
|
| Number of Power Amps | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
|
General
|
|
| Metal Front Panel | Yes |
| System Remote Control | RC-1256 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W / 110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |

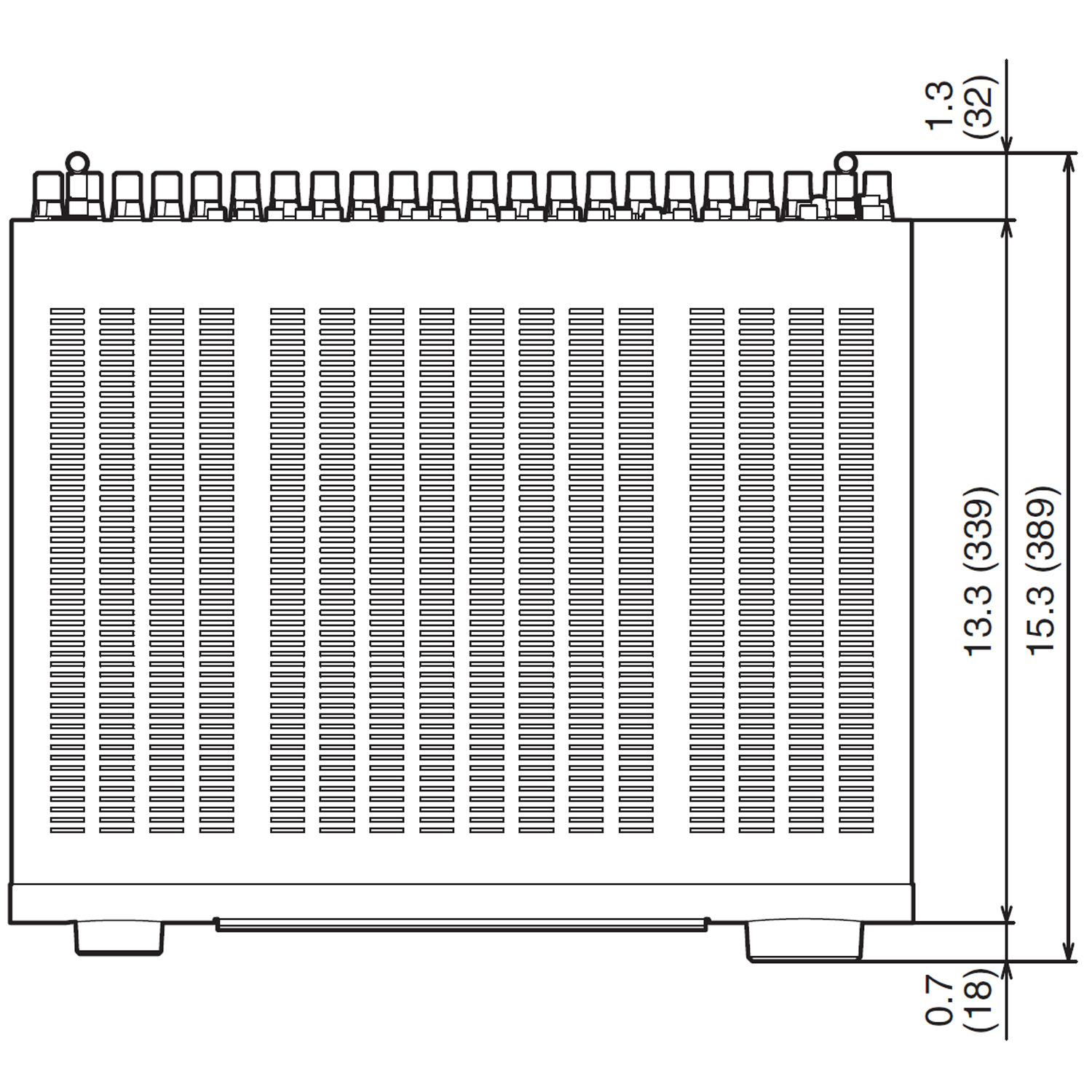

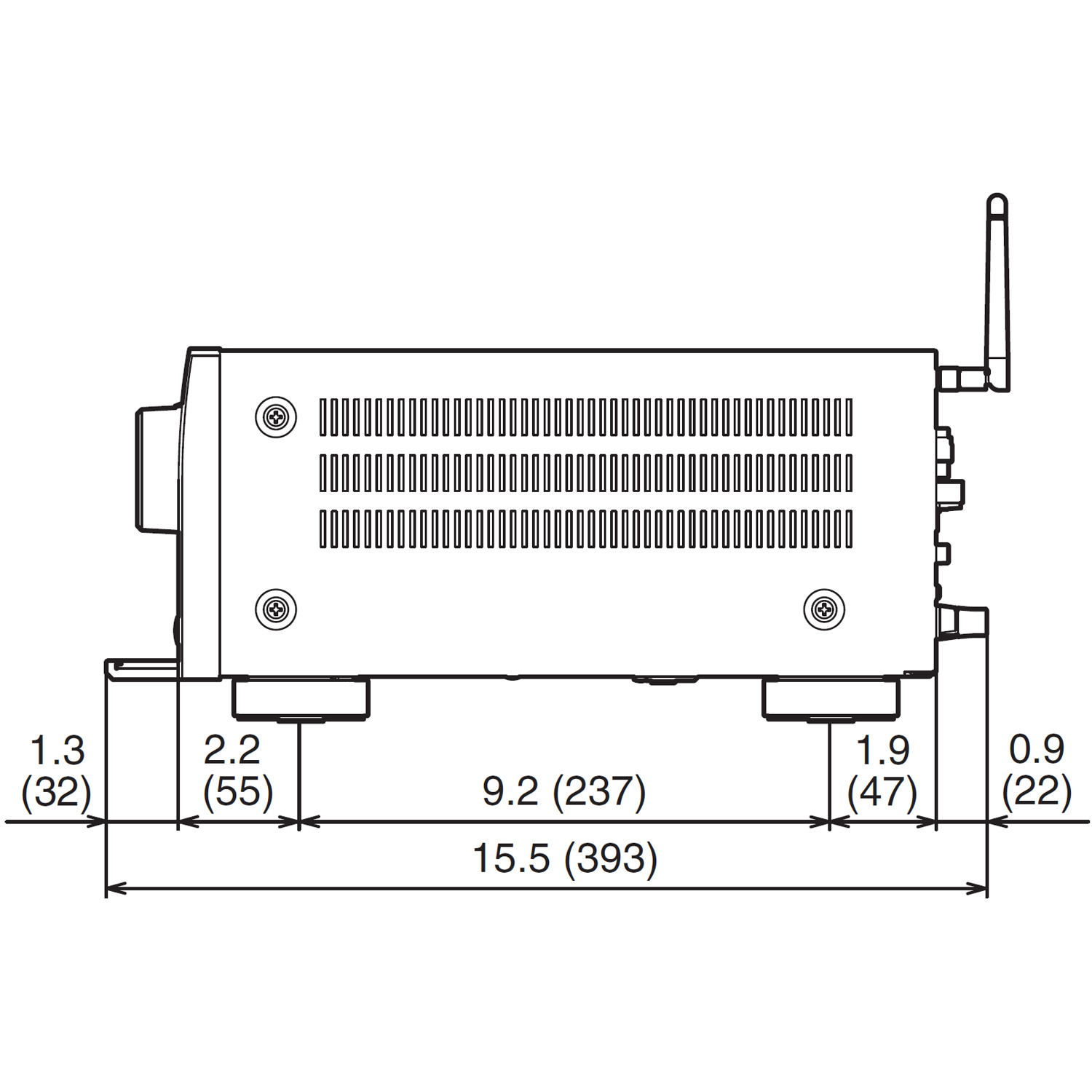

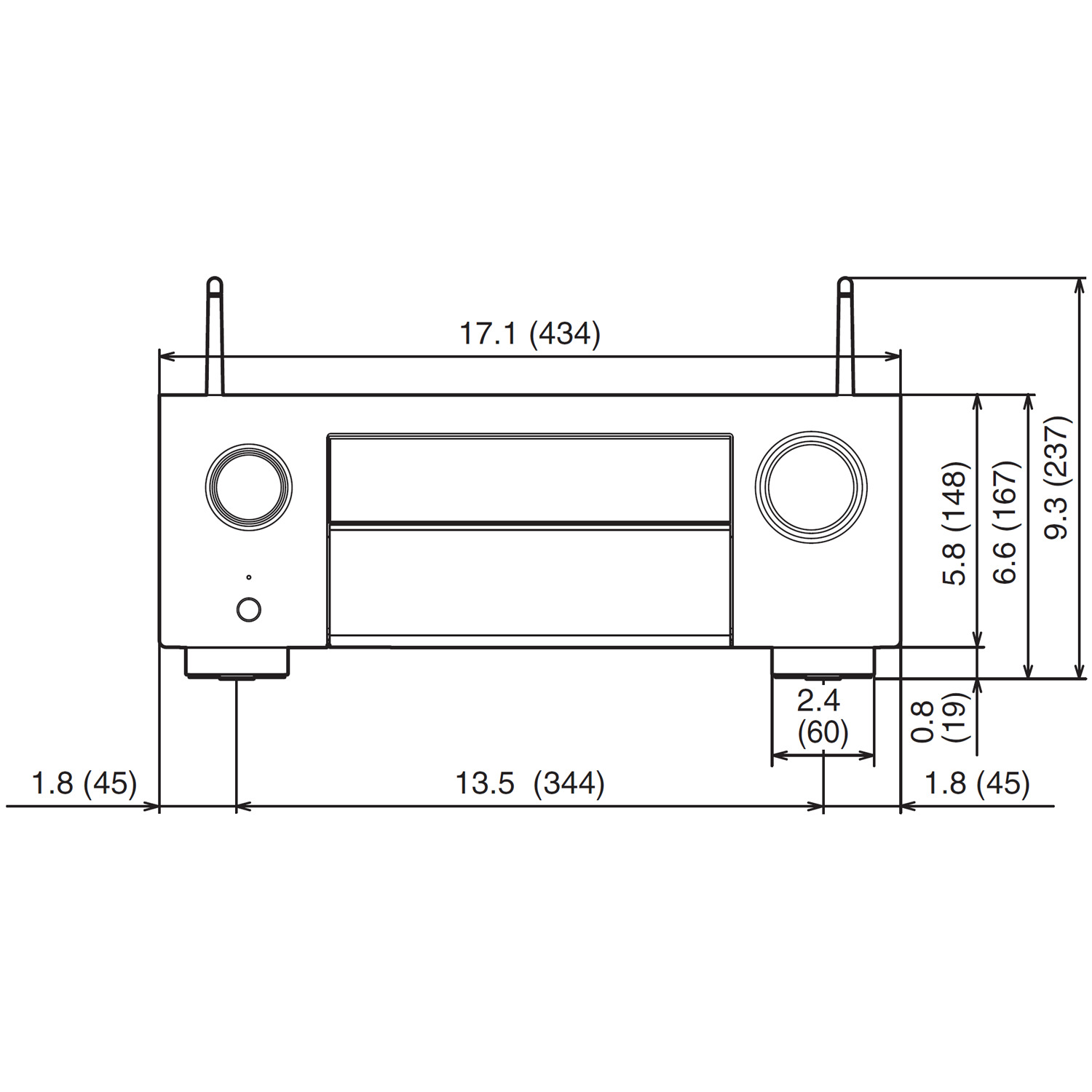

| Maximum Dimensions | |
| Antenna:Horizontal:(W x D x H) in mm | 17.1× 15.3 × 6.6 |
| ( Antenna:Vertical :(W x D x H) in mm) | ( 17.1 x 15.3 x 9.3) |
| 【 w/o Antenna :(W x D x H) in mm】 | ( 17.1 x 14.9 x 6.6) |
| Weight in LBS | 34.4 |
| Power Supply AC | 120 V, 60 Hz |
| Speaker Impedance | 4–16Ω/ohms |
| Pre-Amplifier Section | |
| Input Sensitivity | 200 mV |
| Frequency Response | 10 Hz–100 kHz — +1, –3dB (Direct mode) |
| S/N Ratio | 102dB (IHF-A weighted, Direct mode) |
| Tuner | |
| FM section Tuning Frequency Range | 87.5–107.9 MHz |
| AM sectionTuning Frequency Range | 520 kHz–1710 kHz |
Item Condition
Item Condition
Buying a Denon Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Denon product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Denon repair center (you can look-up locations online here or call 201-762-6665)
Denon, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and can't be resold as new again. The history and reason why a product was returned is not provided to us, thus we can't provide any additional details regarding its past. All products are processed by Denon certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Denon Factory Refurbished" product.
Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can't provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
