HEOS Drive HS2 Network Multi-Room Amplifier

Item #: DENHEOSDRIVEHS2-RB

Availability: IN STOCK, ships out in 1-2 Business Days. LAST ONE!

Item Condition:

Denon Factory Refurbished

Manufacturers Warranty:

2 Year Denon

Manufacturers Part #:

DRIVEHS2

Ask an expert Accessories4Less advisor

1.800.657.0195

Chat Email

Description

Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.

*Sold exclusively within the US only. No shipments allowed outside the US!

CLICK HERE TO DOWNLOAD OWNERS MANUAL

Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).

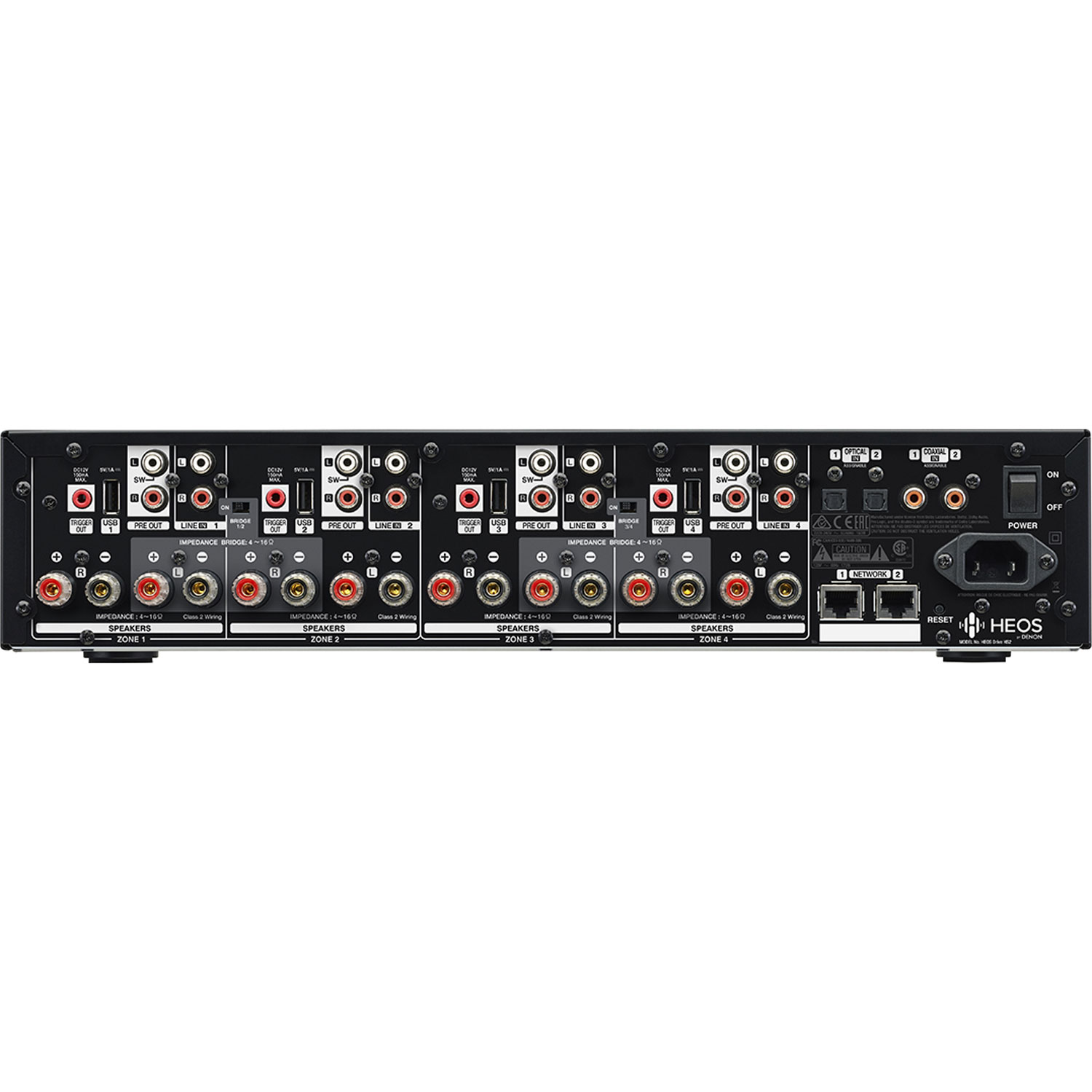

Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS Drive HS2 features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.

Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS Drive HS2 is 3rd party control compatible.

Once installed and connected, HEOS Drive HS2 setup and configuration is fast and easy via our HEOS app (iOS and Android).

Whole home amplified multi-zone audio (4 HEOS zones)
8 Channels Class D digital amplification; 60 wpc 8 ohms; 4 ohms compatible; bridge mode
Pre-amp outputs for each zone
Dual RJ-45 Ethernet LAN ports
Stereo/Mono selectable output
3rd Party Controllable
TV-Sound Grouping allows you to enjoy TV sound throughout the HEOS ecosystem
Dolby Digital/Dolby Digital+ downmixing to stereo

Specifications

Maximum output power
Normal operation	8-channel driving: 60W + 60W (8Ω/ohms, 20Hz - 20kHz, THD 0.05%)
Bridge operation	4-channel driving: 130W + 130W (8Ω/ohms, 20Hz - 20kHz, THD 0.05%)

Rated output
Normal operation	8-channel driving: 60W + 60W (8Ω/ohms, 20Hz - 20kHz, THD 0.07%)
Bridge operation	4-channel driving: 120W + 120W (8Ω/ohms, 20Hz - 20kHz, THD 0.07%)

Output connectors
Normal operation:	4 - 16Ω/ohms
Bridge operation:	4 - 16Ω/ohms

THD + N:	0.05% (20Hz - 20kHz)
S/N:	95dB (IHF-A-weighted
Frequency response:	20Hz to 20kHz ±1dB
Operating temperature:	41°F - 95°F
Power supply	AC 120V, 60Hz
Power consumption	170W
Power consumption in Deep Standby Mode:	0.3W
Dimensions:	15 7/8" x 19 1/8" x 3 3/4"
Weight:	16 lbs. 9 oz.

Item Condition

Denon Factory Refurbished

HEOS Manufacturer Certified Refurbished product is like new and 100% restored and tested to factory settings. These items include a 2-year warranty. It is the same great HEOS product but for a little less money.

OUR GUARANTEE

When you purchase a HEOS Manufacturer Certified Refurbished product you can be assured that it has undergone rigorous testing to ensure it meets our high quality standards for superior sound performance.

Ã‚

100% restored & tested to factory settings

Backed by a Denon 2-year warranty

Dedicated service line provided with purchase to assist with setup as needed

Ã‚

Below are the answers to the most frequently asked questions related to HEOS products. If you don't see your question answered below, please contact our customer support at 201-762-6665.

What are HEOS Certified Refurbished Products?

HEOS Certified Refurbished Products are pre-owned HEOS products that undergo HEOSÃ¢â‚¬â„¢s stringent refurbishment process, which include test procedures defined by specifications to ensure that critical sections of the products are tested and that only units passing the tests are moved to sellable inventory.
Refurbished products can be purchased and shipped within the U.S. and include a notation indicating that they are refurbished products printed on a label on the box.

Ã‚

What should I expect when I purchase a HEOS Certified Refurbished Product?
Each HEOS Certified Refurbished Product:
- Is fully functional.
- Is put through a thorough cleaning process and inspection.
- Is updated to the most recent software version available.
- Is repackaged in plain brown corrugated boxes
- Includes accessories and documentation.
- Is priced much lower than retail price.
- May have some cosmetic blemishes on top, side, back and bottom of unit.
Ã‚
Do your refurbished products come with warranties?

Every HEOS Certified Refurbished product is backed by a full two-year limited warranty. Click here to view our complete warranty on Refurbished products.
Note: This warranty is non-transferable and is only honored in the USA.

Ã‚

A refurbished item that I wanted is no longer available. How can I ensure that I get an item when it's in stock?

Generally, inventory of refurbished items is fairly limited. Therefore, if you see an item in which you are interested, it is best to complete your purchase as soon as possible.

Ã‚

What Support is included with my purchase?

Refurbished HEOS products are entitled to support directly from HEOS. Email and chat technical support is included with your purchase.
