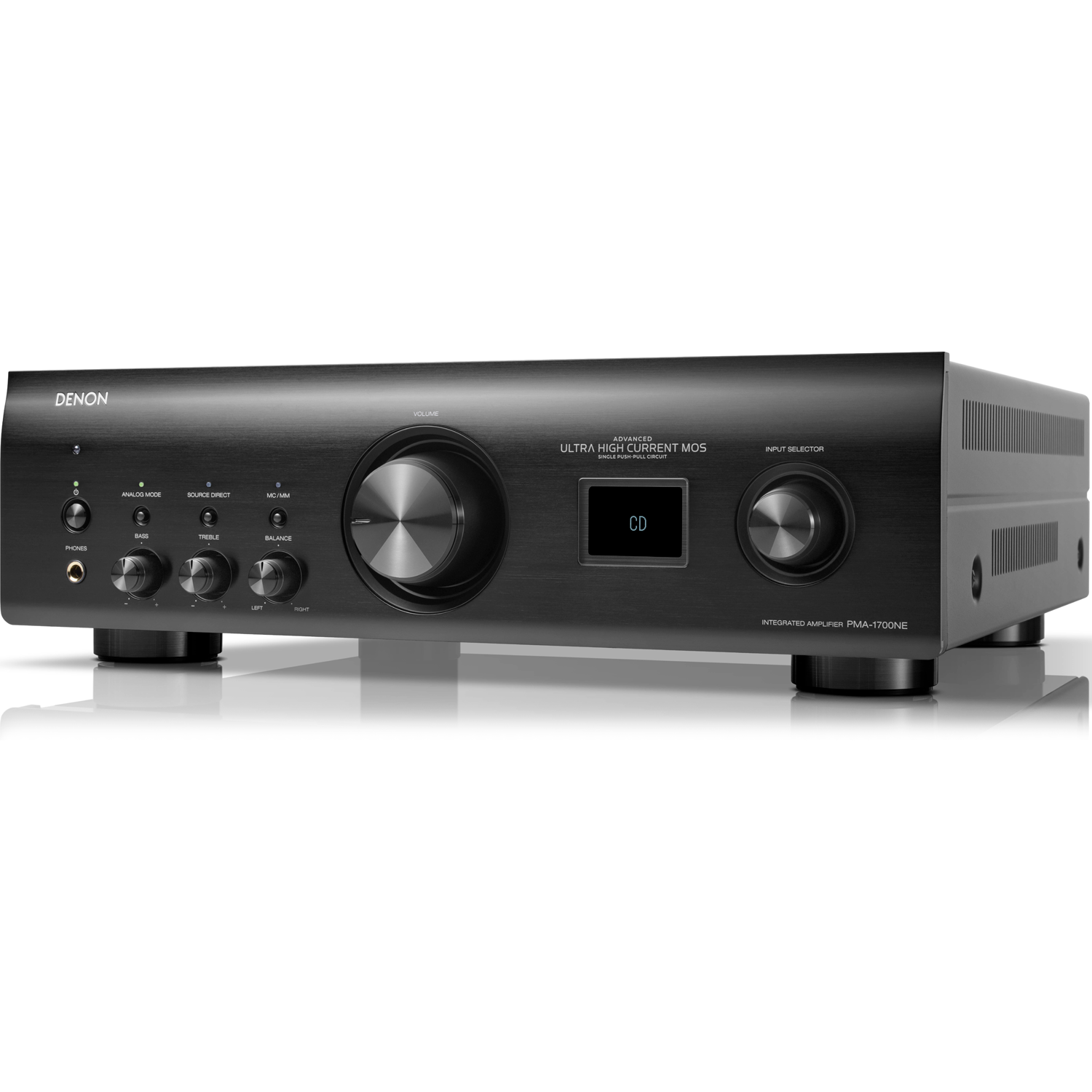

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.
CLICK HERE TO VIEW OWNERS MANUAL
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
Onboard Technologies
Specifications
Specifications
Amplifier
|
|
Amplifier Type | Integrated Amplifier (Preamp/Power Amp Combo) |
Channels | 2 |
Power Output per Channel | 2-Channel Driven: |
70 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD | |
140 W at 4 Ohms / 1 kHz / 0.7% THD | |
Frequency Response | 5 Hz to 100 kHz 0/-3 dB |
THD | 0.01% (8 Ohms, Rated Output -3 dB) |
Speaker Impedance | 4 to 16 Ohms |
Tone Control | Bass (100 Hz): ±8.0 dB |
Treble (10 kHz): ±8.0 dB | |
Damping Factor | > 100 |
Audio Processing
|
|
DAC | 384 kHz / 32-Bit (PCM1795) |

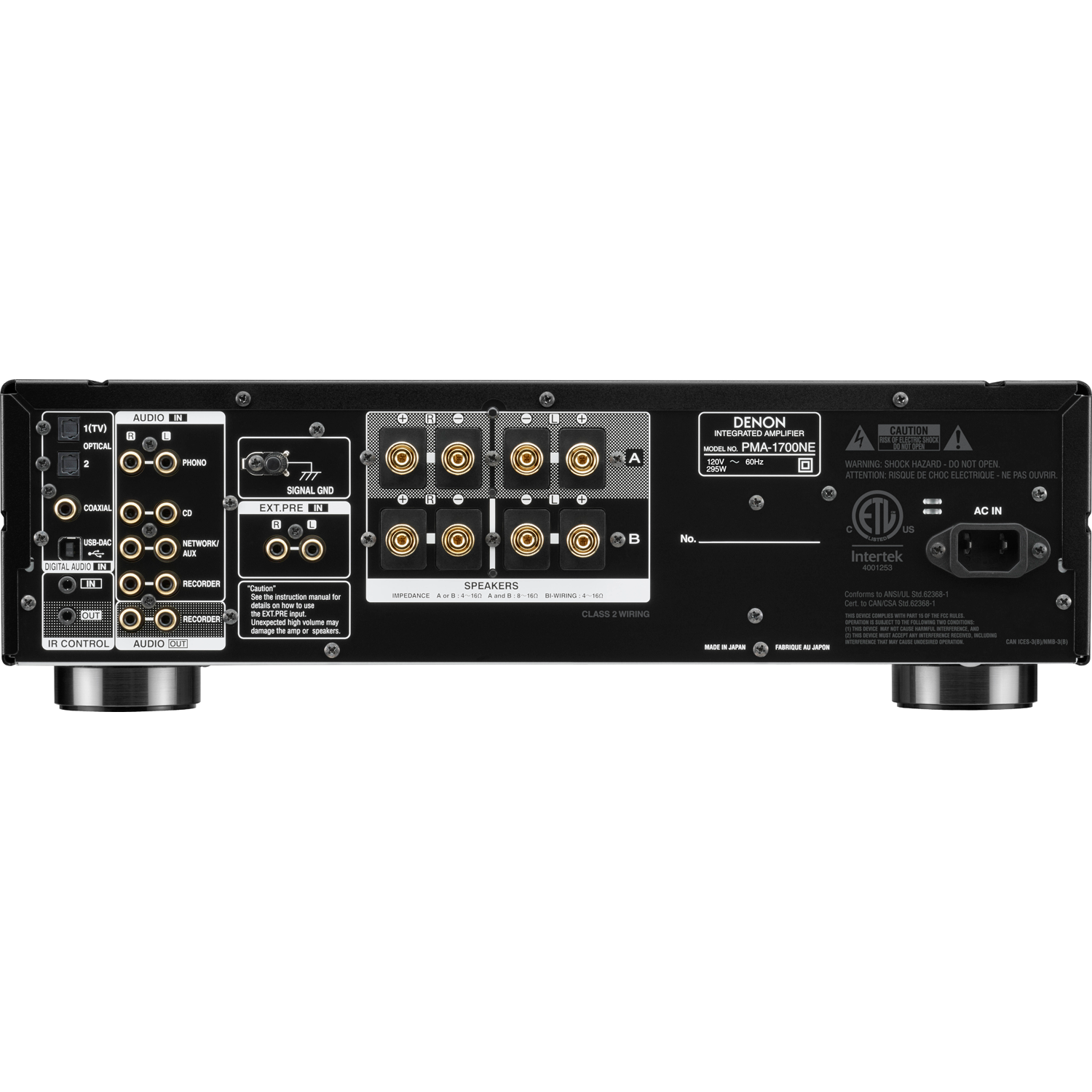

Connectivity
|
|
Rear A/V Inputs | 3 x RCA |
1 x Stereo RCA (Phono MC/MM) with Ground Screw | |
1 x Stereo RCA Power Amp Direct | |
2 x Optical TOSLINK | |
1 x Digital Coaxial | |
1 x USB Type-B DAC | |
Rear A/V Outputs | 1 x RCA Recorder |
Front I/O | 1 x 1/4" / 6.35 mm Headphone Output |
Other Rear I/O | 1 x 1/8" / 3.5 mm (IR) Input |
1 x 1/8" / 3.5 mm (IR) Output | |
Speaker Connectors | 4 x Gold-Plated Binding Post Pairs |
Media Card Slot | None |
A/B Speaker Selection | Yes |
Bi-Amp Capability | Yes |
Input Sensitivity | Phono (MM): 2.5 mV |
Phono (MC): 200 mV | |
Line: 125 mV | |
Power Amp Direct: 0.85 V | |
Max Input Level | Phono (MM): 130 mV (1 kHz) |
Phono (MC): 10 mV (1 kHz) | |
Phono RIAA EQ Deviation | ±0.5 dB (20 Hz to 20 kHz) |
Signal to Noise Ratio | Phono (MM): 89 dB |
Phono (MC): 74 dB | |
RCA: 107 dB | |
Wireless Connectivity
|
|
Wi-Fi | None |
Bluetooth | None |
Power
|
|
AC Input Power | 120 VAC, 60 Hz |
Power Consumption | Active: 295 W |
Auto Off: 0.2 W | |
Physical
|
|

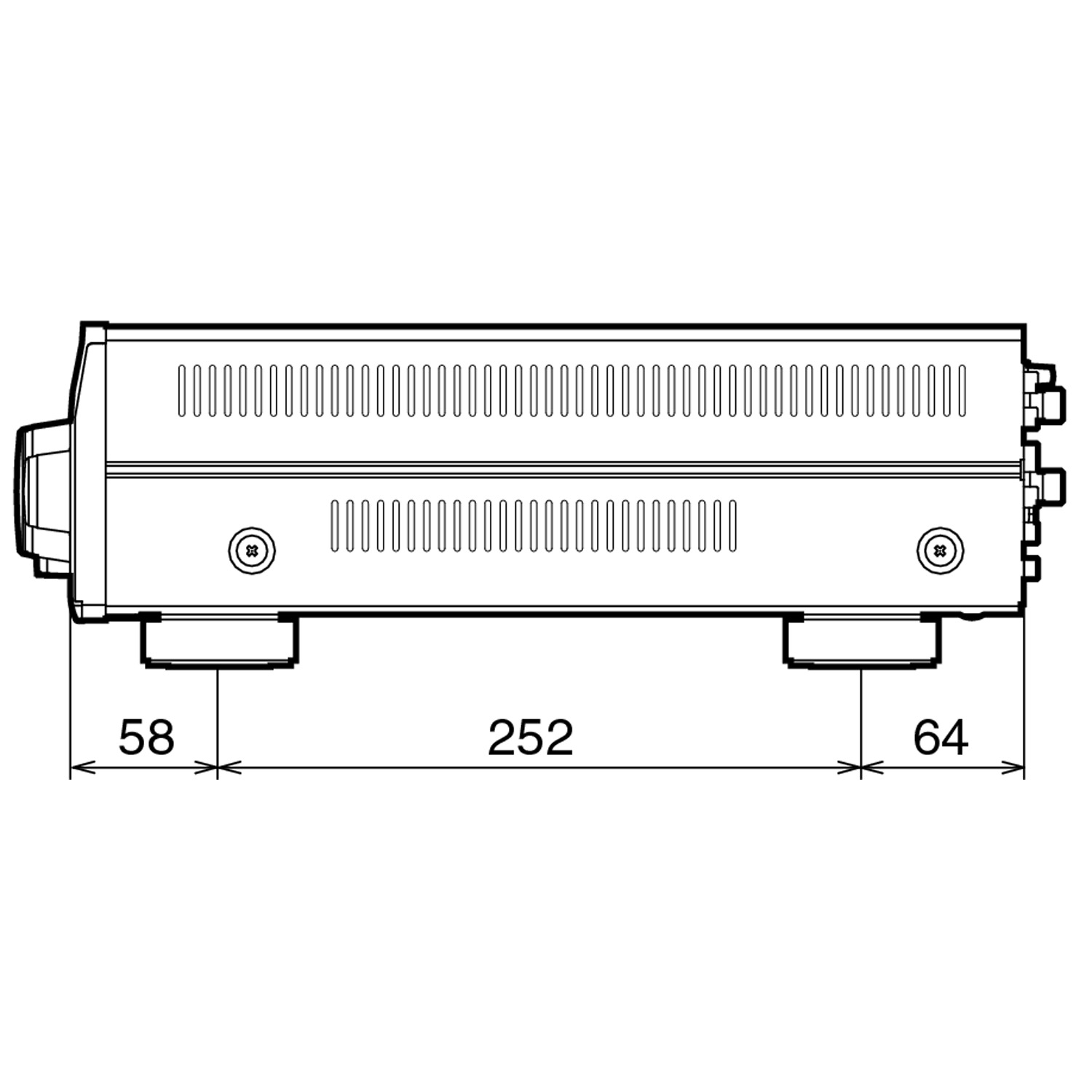

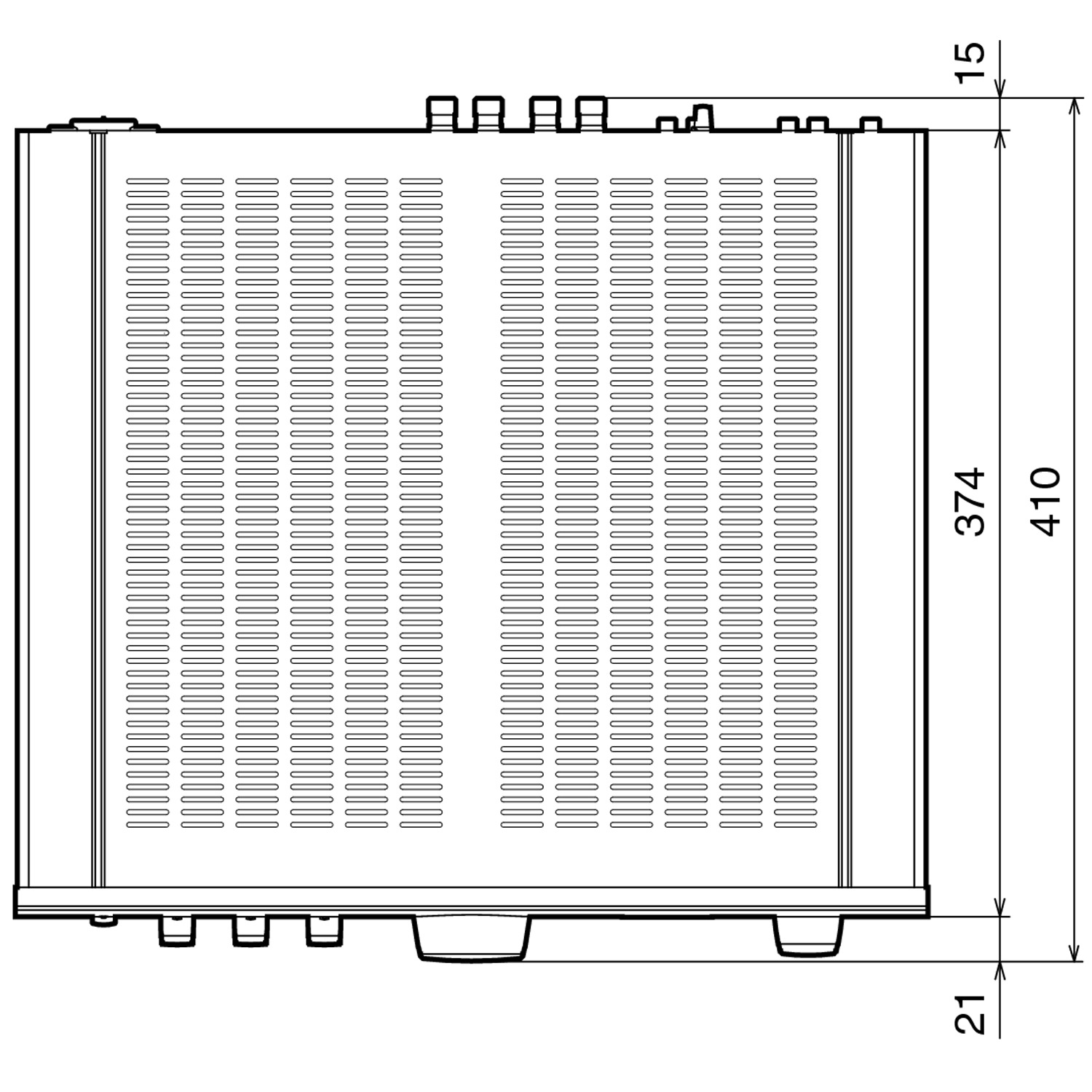

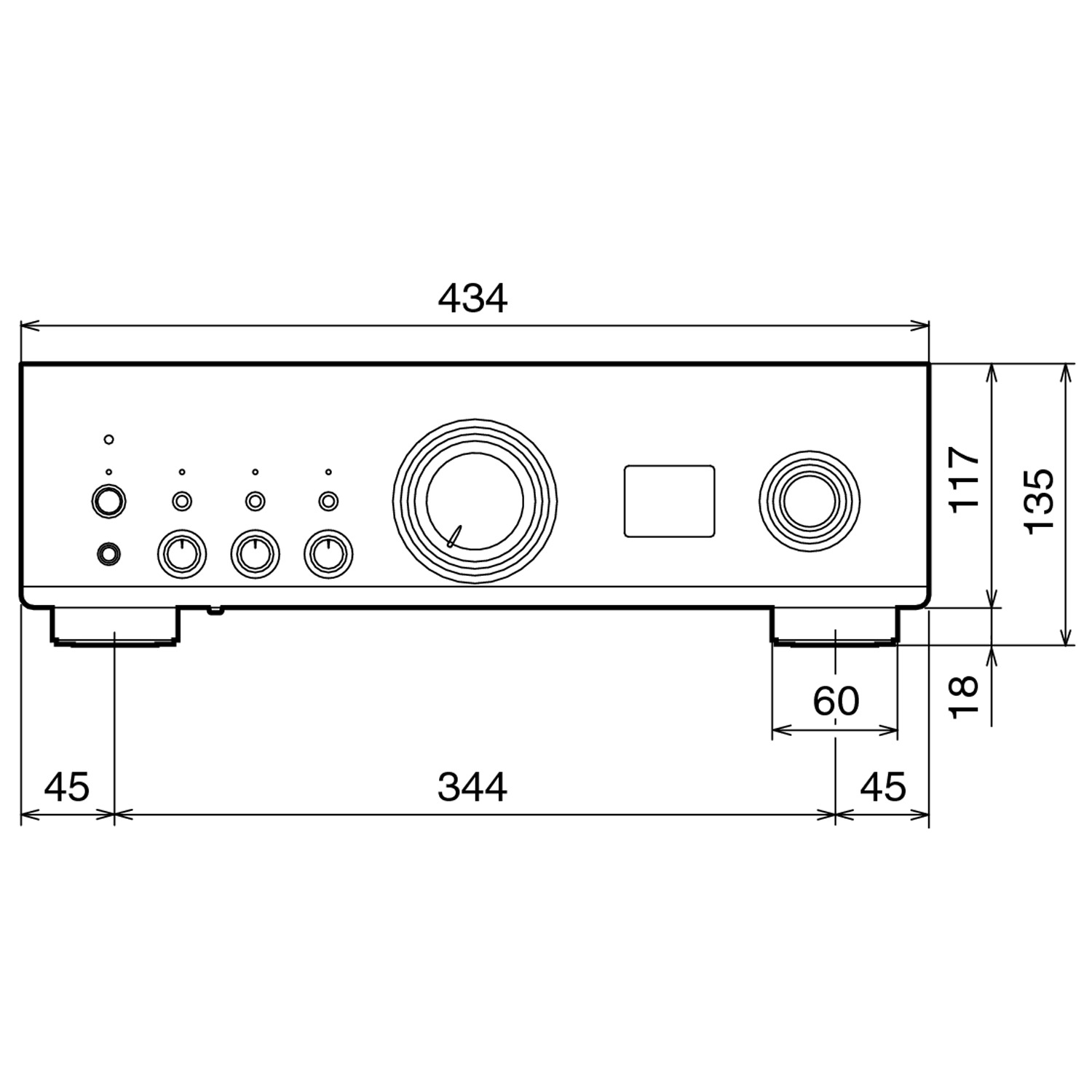

Dimensions (W x H x D) | 17.1 x 5.3 x 16.1" / 434.0 x 135.0 x 410.0 mm |
Weight | 38.8 lb / 17.6 kg |
Item Condition
Item Condition
Denon, like all electronics manufactures, receives products returned for various reasons. In 2019 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! A study revealed 65 percent of respondents decide to return non-defective electronics early on, citing frustration and/or confusion during product unboxing/unpackaging, installation, and first use. Once a product has been opened it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cant provide any additional details regarding its past. All products are processed by Denon certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Denon Factory Refurbished" product.
Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
