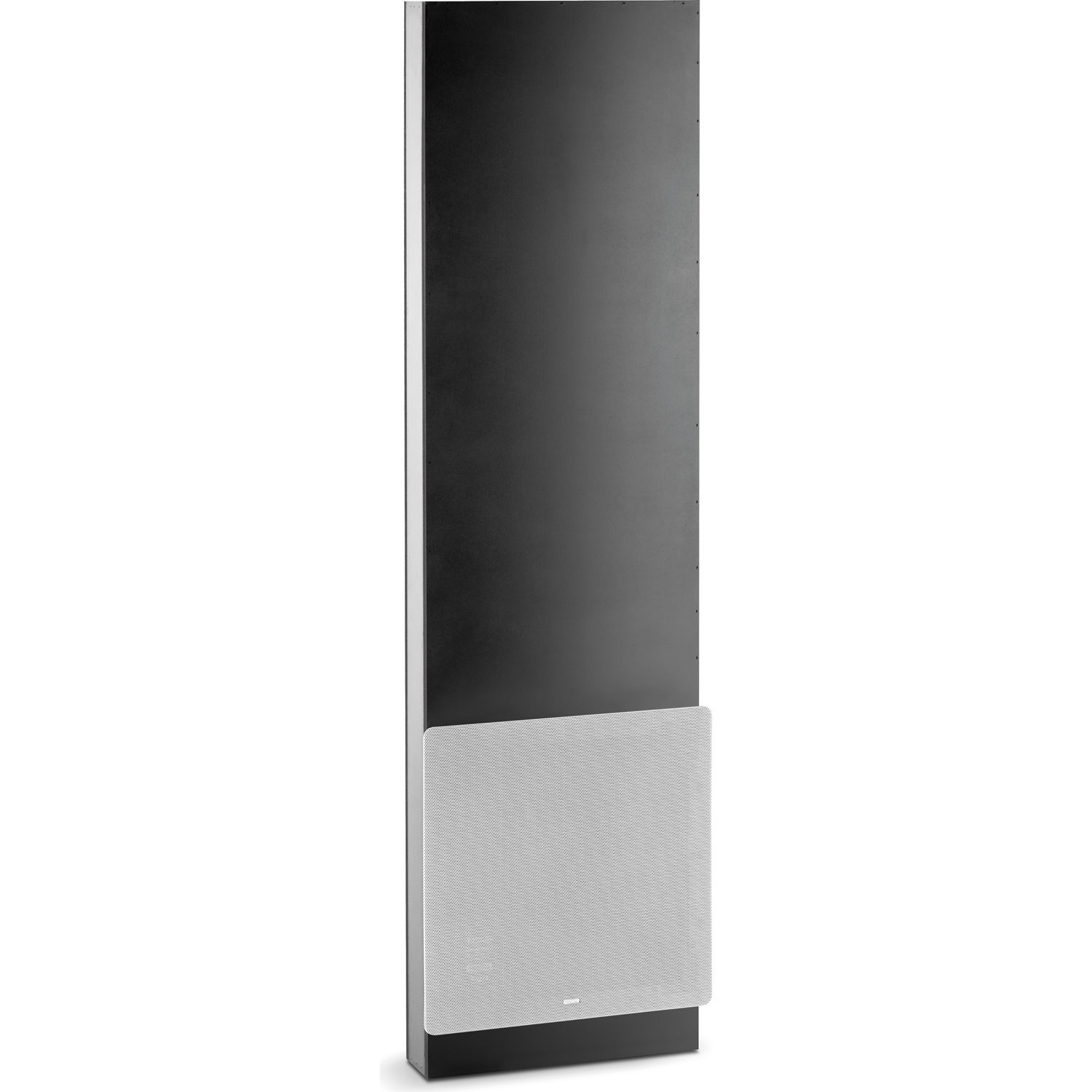

Complete your 100 Series audio/video system with the subwoofer 100 IWSUB8. Including an 8" Polyglass speaker driver and a front vent with a streamlined inner frame to guarantee no-noise operation, this passive bass-reflex subwoofer can be installed during pre-construction of the walls using 16" OC joists. With a shallow in-wall depth (33/8"), a high-quality bass reproduction and covered with a low profile magnetic grille which can be painted, it is as high-performance as it is discreet!
In a bid to design the very best products and combinations of audio solutions for create an unique ambiance, Focal has developed a dedicated easy-install amplifier specially tailored for this subwoofer: 100 IWSUB8 Amplifier.
Key points
-
Bass cut-off frequency: 30Hz to -6db
-
Low depth (3⅜" / 86mm) fitting 16" OC studs in-wall installation.
-
Nominal impedance of 8Ω, able to be connected by pairs with 100 IWSUB8 Amplifier.
-
Dimensions (HxWxD) : 513/16 x 13⅞ x 3⅞" (1,300 x 352 x 98mm)
Ready-to-paint grille
-
metal low profile grille
-
ready-to-paint
-
magnetic fixing on mounting frame
Specifications
Specifications
| Type Passive subwoofer | Speakers 8" (21cm) Polyglass Woofer |
| Sensitivity (2.83V/1m) 89 dB | Bandwith (+/-3dB) 34-140Hz |
| Cut-off frequency (-6dB) 30Hz | Nominal impedance 8Ώ |
| Recommended | amp power Max 200W / 4Ώ |
| Dimensions (WxDxH) | 13-7/8 x 3-7/8 x 51-3/16" (352 x 98 x 1,300mm) |
| Cut-out dimensions (WxH) | 13-7/8 x 51-3/16" (352 x 1,300mm) |
| Depth from wall | 3-3/8" (86mm) |
| Net weight | 32.3lbs (14.6kg) |
