Franklin Audio's A4012 freestanding, twelve channel amplifier was designed for custom multi-room sound distribution. Its intelligently engineered and versatile design integrates easily into high-end whole house audio systems. Can bridge any of the 12 channels to create an amp from 12 to 6 channels total. Add on a HEOS link or Yamaha WX-C50 preamp to make a stand alone 6 room whole house audio streaming system!
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Highlights
- Stable Class-AB design delivers superior audiophile sound quality and performance
- 40wpc x 12ch into 8ohms or 60wpc x 12ch into the 4ohms (0.09% THD).
- Independent and bus inputs enable unparalleled flexibility (each channel can be linked or used independently with own source)
- Bridgeable channel outputs provide additional power when needed. You can combine any pair of channels or all channels (bridge).
- Independent channel gain controls allow the output of each speaker to be perfectly matched
- Multi-stage protection circuitry for reliability and easy troubleshooting of audio system
- Temperature controlled cooling fans
- ENERGY STAR and CE EuP directive compliant, consumes less than 1/2 a watt in standby
- Includes rack mount ears (removable).

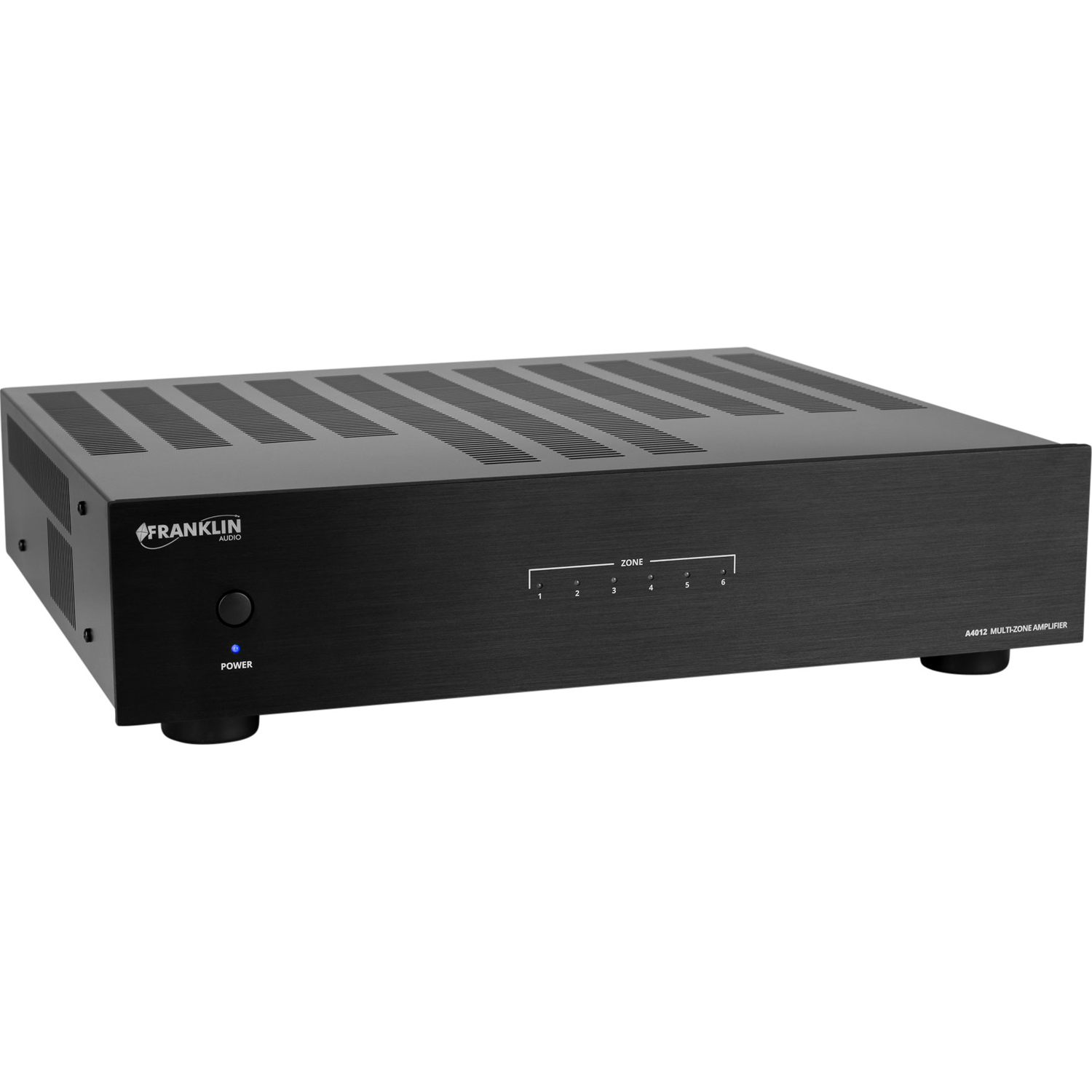

The Franklin Audio A4012 features a Class-AB output circuit that delivers superior audiophile sound quality and steady performance. Each of your installation's zones can benefit from the A4012's clean audio reproduction and excellent functionality. The A4012 can be stacked with other audio components and includes removable ears for mounting in standard audio racks (2RU).

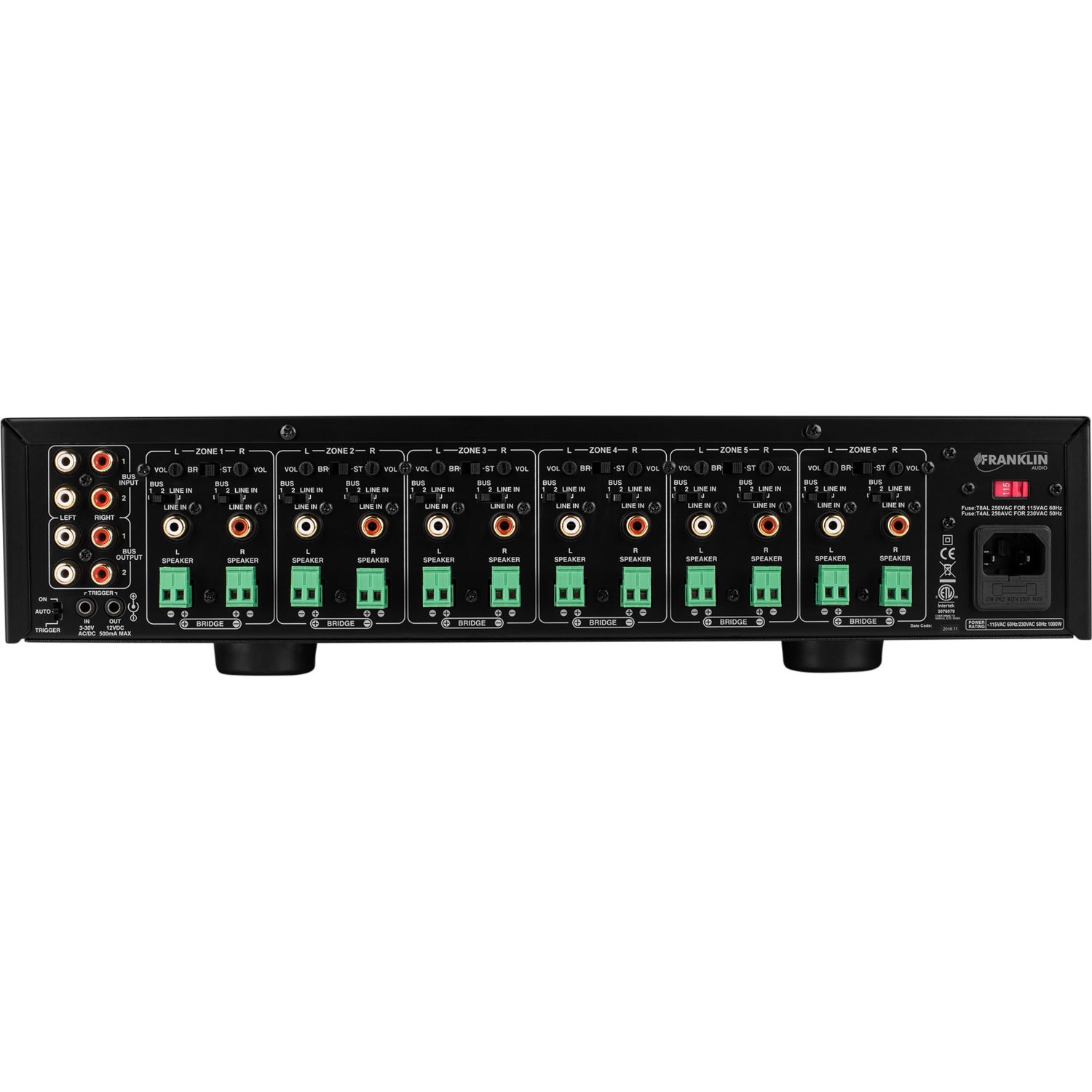

Two common or BUS inputs feed audio signals from standard line-level audio sources to any or all channels. Each of the twelve channels has its own dedicated input and independent level adjustment to provide additional flexibility. By simply flipping a single switch, two channels can be bridged to increase the total power output for that zone. This is helpful when extra power is needed in certain areas.
The A4012 12-channel multi-zone amplifier was designed for those who want a superb-sounding whole-home audio system, but do not want unsightly equipment strewn about their beautiful home.
You can have sweet, luscious sound in every corner of your castle. Each zone can have its own individual source, as well as the choice between two other input sources. You can have all this — with stunning audiophile-level sound quality
For larger or more involved installations, multiple A4012s can be linked together, or additional conventional amplifiers can be added to accommodate more zones.
Specifications
Specifications
| Model Number | A4012 |
| Color | Black |
| UPC | 848864038964 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Height | 4" |
| Product Width | 16.7" |
| Product Depth | 14-1/4" |
| Product Shipping Weight (lbs.) | 38.0000 |
| Amplifier Type | Multi-Zone Amplifiers |
| Power Output | 40 Watts per channel RMS at 8 ohms 80 Watts per channel RMS at 8 ohms (Bridged) |
| Output Channels | 12 |
| Output Connectors | Phoenix, RCA |
| Output Types | 4 ohms, 8 ohms |
| Inputs | 14 |
| Input Connectors | RCA |
| Input Impedance | 18K ohm |
| Signal-to-Noise Ratio | 105 dB A-weighted |
| THD @ Rated Power | .005% THD 20 Hz-20 kHz @ 30W (8 ohm) .010% THD 20 Hz-20 kHz @ 80W (8 ohm) (Bridged) |
| Frequency Response | 5 Hz to 72 kHz |
| Efficiency | 63% |
| Voltage Requirement | 115/230 VAC, 60/50 Hz |
| Auto-on Sensitivity | 13.7mV |
| Stand-by Power Rating | 115V, 0.264W |
| Special Features | Multi-stage protection circuitry Rack mountable Independent channel gain controls 12 channels(6 stereo zones) Individual channel inputs (plus BUS 1 & 2) |
