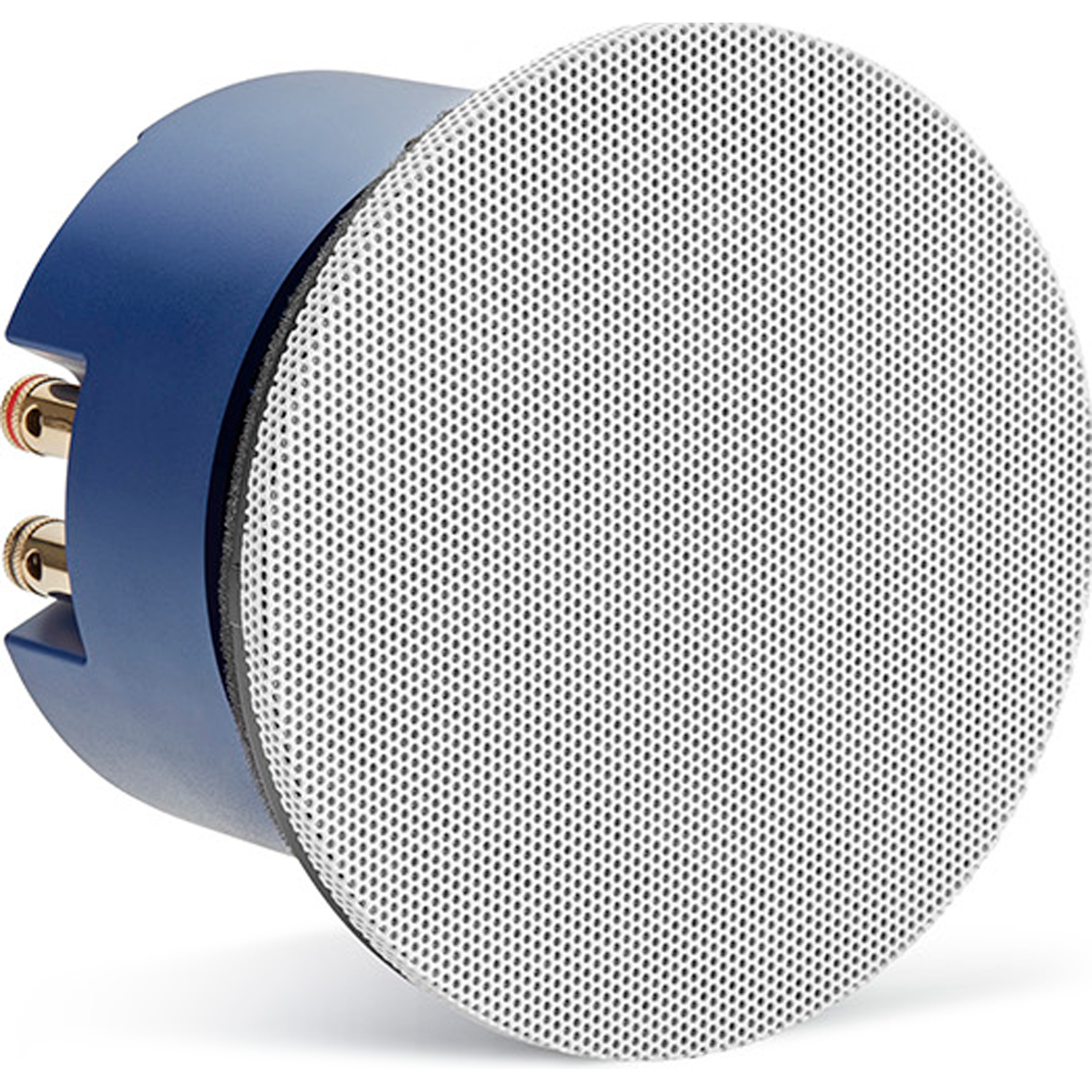

KEF’s Ci130QRfl is a flush-mounted, frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QRfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

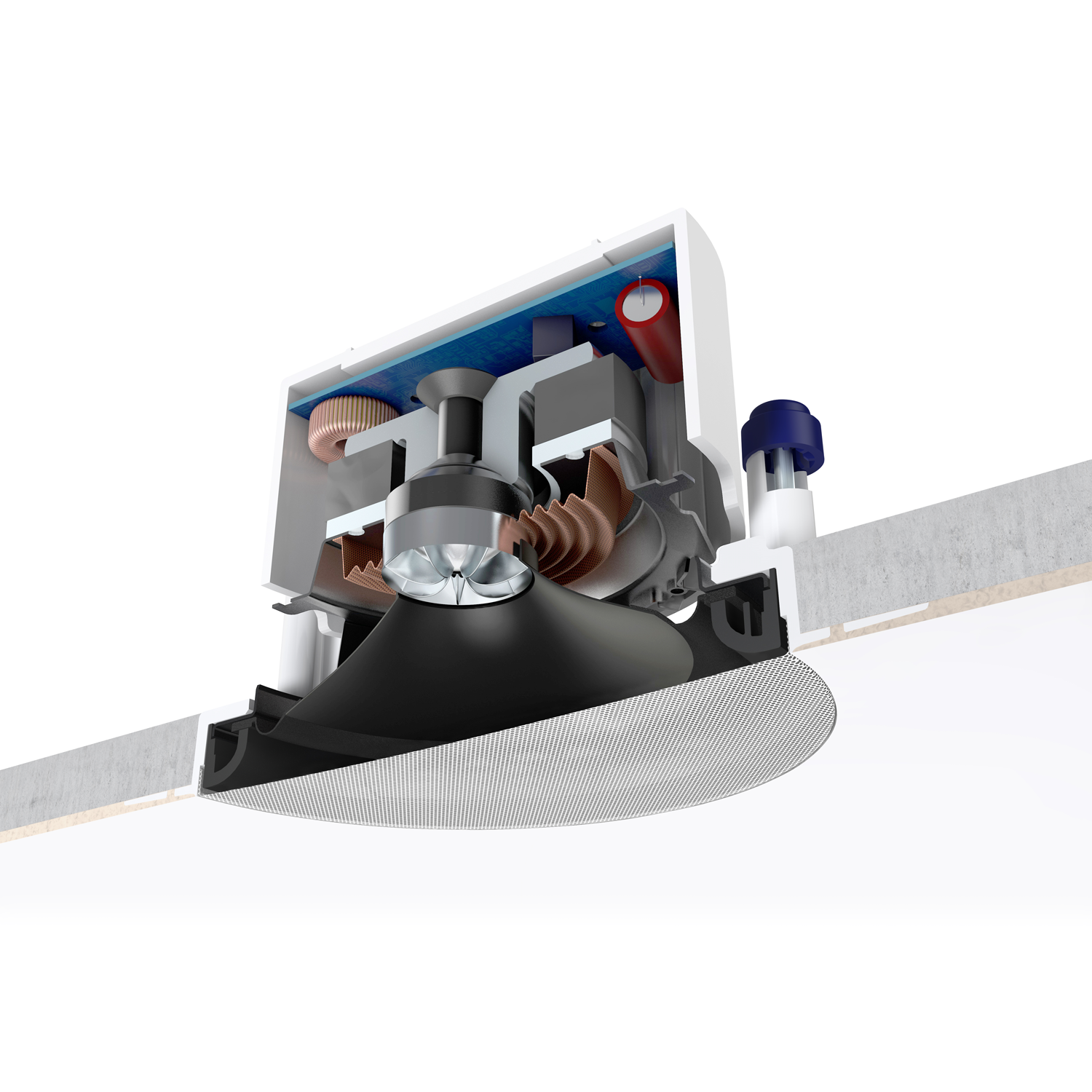

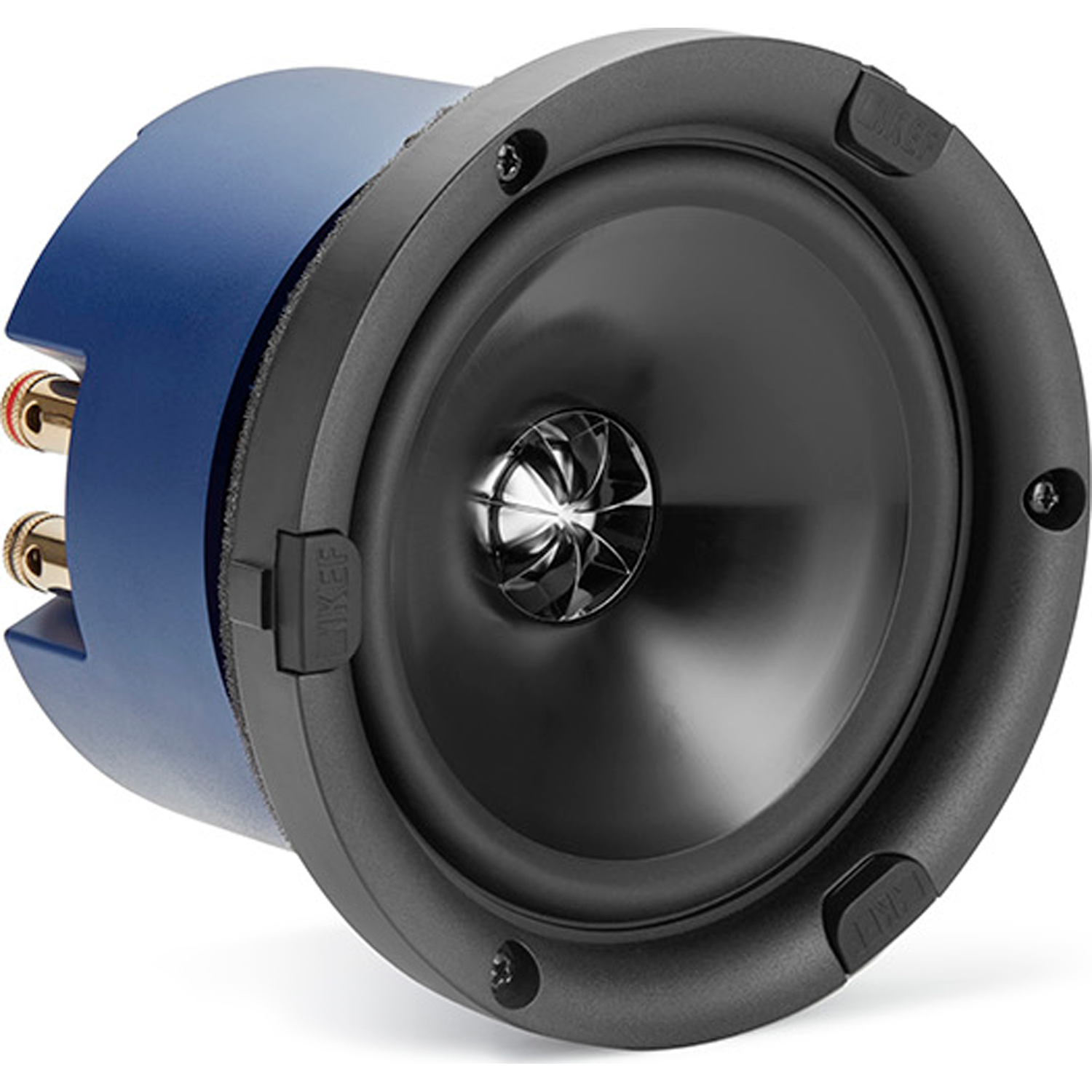

Part of the Ci Q Series, Ci130QRfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QRfl is a round loudspeaker, while the Ci130QSfl features identical drivers in a square format.
Intuitive Installation

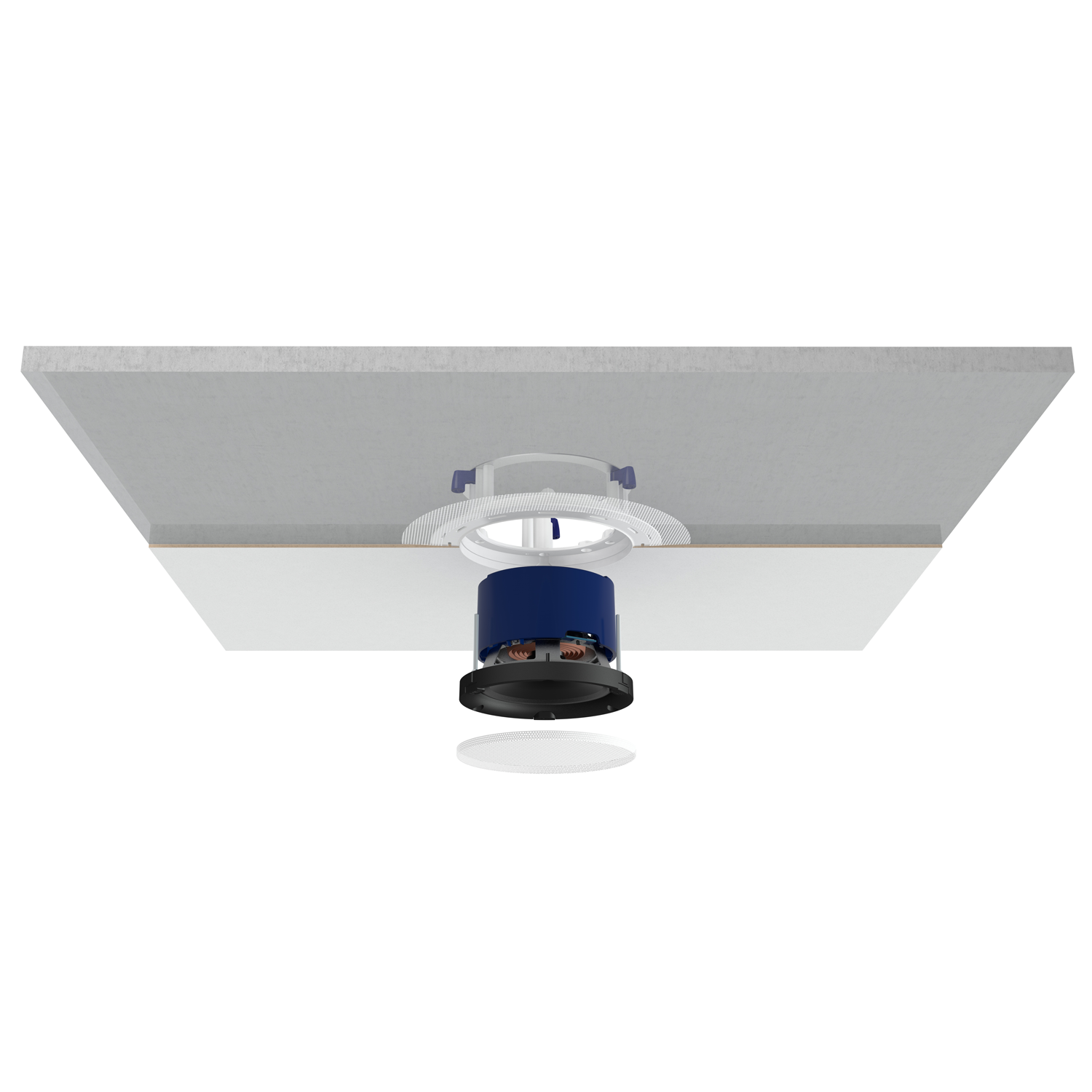

Ci130QRfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QRfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.
| Nominal impedance | 8Ω |
| Sensitivity (2.83V/1m) | 87dB |
| Frequency response (±6dB) open-backed | 45Hz - 34kHz |
| Frequency range (-10dB)" | 38Hz - 30kHz |
| Nominal coverage | 130° |
| Max SPL | 103dB |
| Crossover frequency | 3.8kHz |
| Drive units | LF 130mm (5.25in.) Uni-Q, HF 19mm (0.75in.) |
| Recommended amplifier power | 10 - 100 W |
| Recommended high-pass filter | 50Hz |
| Product external dimensions | Diameter Ø 200.6mm (7.9in.), Depth 104.6mm (4.12in.) |
| Cut-out dimensions | Diameter Ø 158mm (6.22in.) |
| Net weight | 1.45kg (3.19lbs.) |
| Mounting depth from surface | 101mm (3.98in.) |
