Ci3160REF-THX* utilizes REFERENCE technologies to meet the standards of the legendary REFERENCE Series, as well as KEF’s Extreme Theatre and THX® Certified Ultra. It even comes with a REFERENCE Build Certificate signed by the craftsman who made it.
Whether used as a two-channel pair or as part of a complete home theatre system in any combination of KEF Architectural and traditional speakers, Ci3160REF-THX delivers countless possibilities for REFERENCE performance.
Flawless Sound

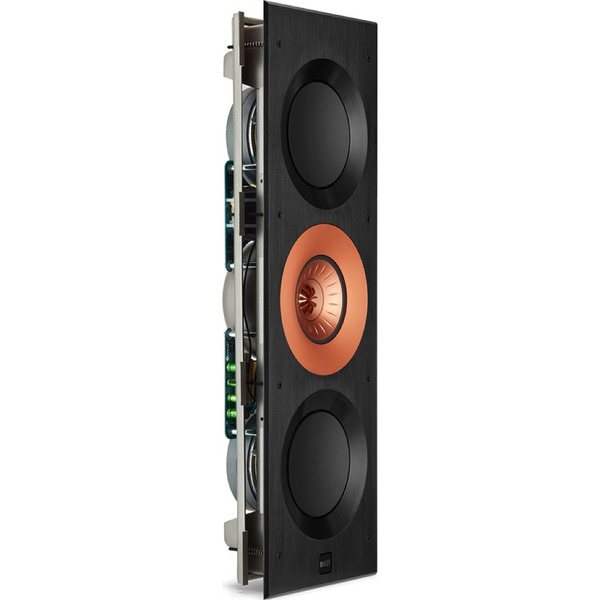

Ci3160REF-THX utilises the latest Uni-Q point source driver array. A 25mm vented aluminium dome tweeter sits at the exact acoustic centre of a 125mm mid-range driver. Together they act as a single source, flooding the listening space evenly with flawlessly natural sound.
Brilliant Bass
Ci3160REF-THX’s bespoke 160mm bass driver is optimised for in-wall performance. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are exceptional.
Auditioning perfection
Ci3160REF-THX’s crossover combines the science of computer-modelling with the rigours of exhaustive auditioning and refinement of each high-grade component. Only components with the lowest distortion and the smoothest response make the grade for this exceptional loudspeaker.

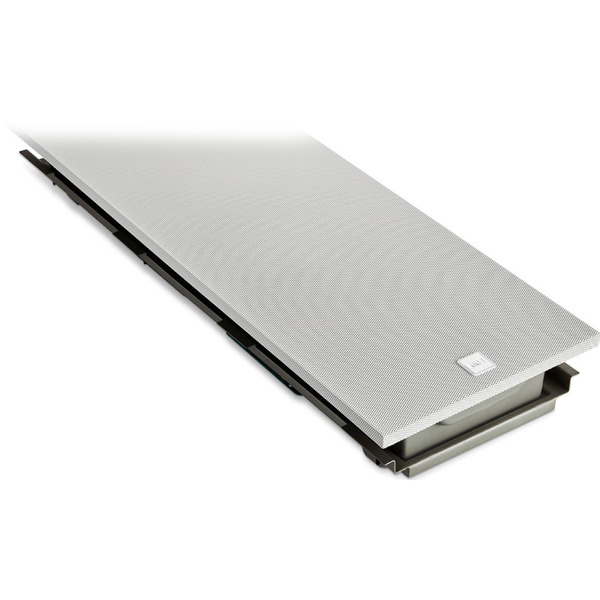

*For optimised performance, THX recommends using the Ci3160REF-THX without grille or fabric grille.
Specifications
Specifications
| Nominal Impedance | 4Ω |
| Sensitivity (2.83V/ 1m) | 90dB |
| Frequency response (±6dB) | 40Hz - 28kHz (±6dB) open backed |
| Frequency range (-10dB) | 32Hz - 30kHz |
| Crossover frequency | 350Hz, 2.7kHz |
| Drive units | LF: 2 x 160mm (6.5 in.) |
| MF: 125mm (5.25 in.) | |
| HF: 25mm (1 in.) Uni-Q | |
| Recommended Amplifier Power | 40 - 350W |
| Product external dimensions (H x W x D) | 26.77 x 9.06 x 4.16 in |
| Cut-out dimensions (H x W) | 25.98 x 8.23 in |
| Net Weight | 29.54 lbs |
| Mounting depth from surface | 3.9 in |
