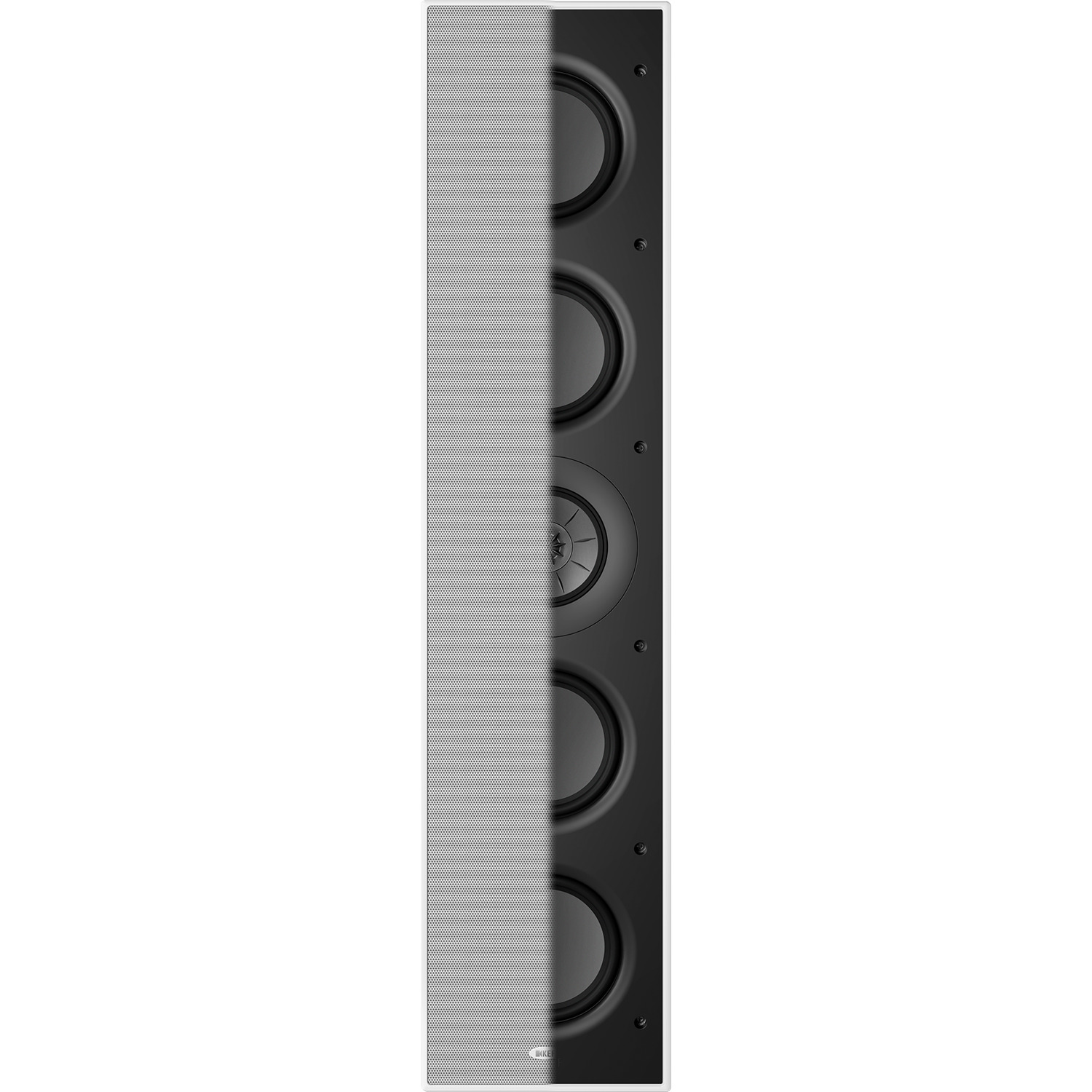

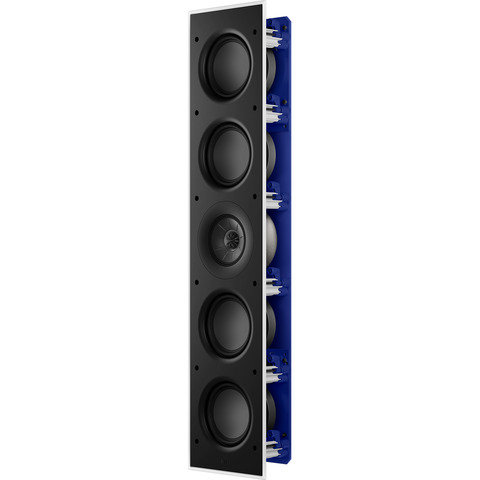

The Ci5120QLM-THX in-wall architectural speaker meets the growing demand for high-performance home theatre solutions in multipurpose rooms, where dedicated spaces are less common. Featuring a 12th generation Uni-Q driver array and our groundbreaking Metamaterial Absorption Technology (MAT), the Ci5120QLM-THX is THX Certified Ultra. It recreates high-impact cinema sound with best-in-class audio fidelity, making it ideal for large-sized rooms.
CLICK HERE TO VIEW OWNERS MANUAL
Metamaterial Absorption Technology
Absorbs 99% of the unwanted sound
Uni-Q®
Acts as a single point source to enlarge the Ësweet spot' and disperse sound more evenly.
THX Certified
Ci5120QLM-THX delivers ultra-high performance with true theatre sound quality for medium-sized theatres and living rooms and it is THX® Certified Select.
Ultra-deep, clean bass"¹
Four specially designed 120mm (4.75 in.) bass drivers provide long throw capabilities and low distortion."¹
Detailed, balanced sound"¹
The 3-way system design and fully optimised crossovers allow each driver to be optimally configured for its specific role, elevating performance to another level."¹
Hide your speakers, not your sound
The paintable magnetic metal grille and Ultra-Thin Bezel (UTB) give it the appearance of a hidden speaker, allowing it to blend seamlessly into any environment.
|
Model
|
Ci5120QLM-THX |
|
Series
|
Q Series |
|
Frequency Response Range
|
45Hz - 20kHz |
|
Frequency Response Remark
|
(±6dB) open-backed |
|
Frequency Range
|
38Hz - 20kHz |
|
Sensitivity
|
89dB |
|
Nominal Impedance
|
4Ω |
|
Nominal Coverage
|
150° |
|
Maximum SPL Measured at 1m
|
105 dB |
|
Drive Units
|
LF: 4 x 120mm (4.75 in.), MF: 100mm (4 in.) Uni-Q, HF: 19mm (0.75 in.) vented aluminium dome with Metamaterial Absorption Technology1 |
|
Crossover Frequency
|
440Hz, 2.75kHz |
|
Recommended Amplifier Power
|
25 - 250 W |
|
Recommended High-Pass Filter (Hz)
|
35Hz-100Hz |
|
Product External Dimensions (H x W x D)
|
818 mm x 186 mm x 96 mm (32.2 in. x 7.3 in. x 3.8 in.) |
|
Cut-Out Dimensions (H x W)
|
795 mm x 163 mm (31.3 in. x 6.4 in.) |
|
Mounting Depth From Surface
|
90mm (3.6") |
|
Mounting Thickness
|
Maximun: 36 mm (1.42 in.), Minimum: 6 mm (0.24 in.) |
|
Ideal Rear Volume (L)
|
70 |
|
Minimum Rear Volume (L)
|
35 |
|
Net Weight
|
9.7KG (21.4 lbs.) |
|
Gross Weight
|
Single box 12.8KG (28.2 lbs.) |
|
Safety And Regulatory Compliance
|
IP64 |
|
THX Certification
|
THX® Certified Ultra |
|
Remarks
|
1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group. |
