Description
Description

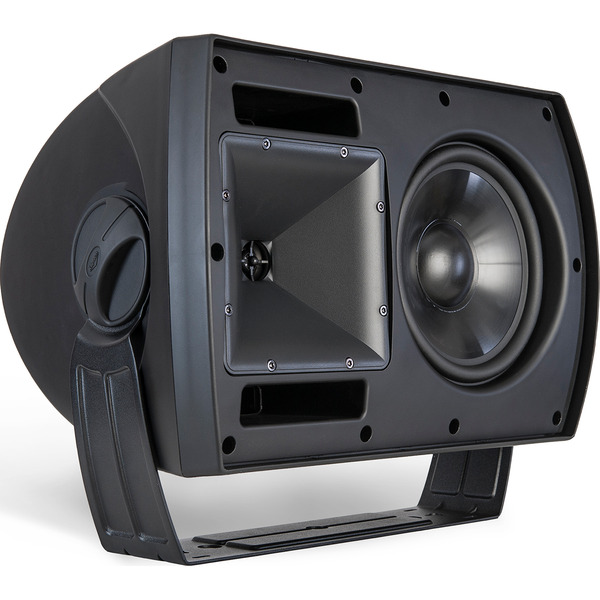

The CA-800T outdoor speaker is perfect for foreground or background distributed sound applications in indoor or outdoor residential commercial or recreational environments, the compact full-range 70-volt CA-800T loudspeaker was designed for those who know better than to expect mediocre output.
- Paintable UV-resistant ABS enclosure with rustproof aluminum grille
- Very high sensitivity and power handling
- Built-in 60-watt 70V/100V multi-tap transformer with 8-ohm bypass
- 90 degree x 90 degree Tractrix Horn tweeter for clean clear highs
- Supplied with C-style mounting bracket and stainless steel hardware
Building on the success of our popular CA-8T model which has been used in a countless number of high-profile installations all over the U.S. the CA-800T version features enhanced cosmetics added mounting flexibility and even better performance.
For efficiency and reliability the CA-800T has been re-voiced and employs a high-power extended range low frequency driver. It features an 8-inch IMG cone woofer and 1-inch titanium dome tweeter coupled to a square-mouth 90-degree by 90-degree Tractrix® Horn which allows the speaker to be mounted horizontally or vertically without affecting the coverage pattern.
The included heavy gauge zinc C-bracket provides added mounting strength. It attaches to the enclosure's integral "center-of-gravity balanced" threaded studs that are positioned inside the speaker and to the oversized knobs ensuring positive position-lock.
Connections are provided via four-position barrier strips. This allows an installer to use two connectors for inputs and two for pass-through making it easier to daisy chain.
The CA-800T's updated grille design stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment. The speaker's improved input cup allows for easier drainage and the added 3/8"-16 threaded insert for use with optional mounts offers better placement flexibility.
Specifications
Specifications
Drivers per speaker | 2 |
Woofer Size (inches) | 8 |
Tweeter Size (inches) | 1 |
System Frequency response | 64-17,000 |
Maximum SPL | 113 |
Power rating | 100 |
Peak Power rating | 0 |
Width (inches) | 11-1/8 |
Height (inches) | 16-3/8 |
Depth (inches) | 12-7/16 |
Weight | 18 lbs |
