The Klipsch Compact Performance Series CP-4T 70/100 Volt speaker is designed to provide high-performance sound with high style for any commercial indoor or outdoor environment.
The integrated bracket design combined with front-access speaker terminals provides for an easy, one-screwdriver installation with the ability to tuck close in a corner for a custom look. Traditional Klipsch efficiency provides maximum output with its single, built-in 5-watt tap setting.
The Klipsch Compact Performance CP-4T with its smaller, aesthetic design is the perfect distributed sound solution when high-value and high-performance are top priorities. It is a versatile 70/100 Volt distributed audio solution whether operation is indoors or out. The proprietary Tractrix® Horn provides high efficiency that reproduces sound with unmatched low-distortion clarity and detail. The conical-shaped, long-throw woofer is designed for minimal cone breakup for more accurate low frequency response and is reinforced with dual, front-firing ports in a bass-reflex design for maximum bass output wherever the speaker is located. Traditional Klipsch efficiency provides maximum output with its single, built-in 5-watt tap setting.
EASY INSTALLATION WITH A REFINED LOOK

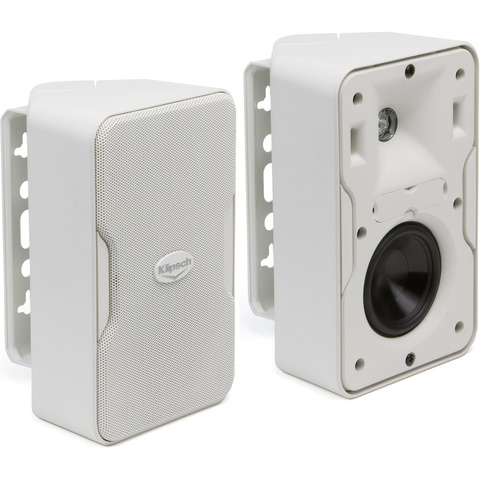

The CP-4T, offered in a paintable Black or White cabinet with matching grille, has the ability to be tightly mounted into a wall-to-wall or wall-to-ceiling corner with its V-shaped rear profile. The solid, reinforced cabinet has an appealing look from all angles with the included bracket an integral part of the design. The unique front-attachment of the bracket combined with front baffle speaker terminals assures a safe, easy, one-screwdriver installation. Tool-free 15° increment angle adjustment makes positioning a breeze. If needed, the CP-4T is provided with dual 1/4”, 20 thread, rear-positioned inserts for utilization of a third party bracket for special applications such as pole-mounting and/or a safety cable attachment.
OUTPUT THAT OUTPACES ITS DIMINUTIVE SIZE
The CP-4T’s high efficiency provides sound reproduction at even foreground music levels with its built-in 5 watt tap setting. The 90° x 90° horn dispersion pattern assures wide, even coverage in either a horizontal or vertical position.
Specifications
Specifications
Frequency Response: | 100Hz-22kHz +/- 3dB |
SENSITIVITY: | 91 dB |
POWER HANDLING: | 5 watt fixed @ 70V/10 watt fixed @ 100V |
MAXIMUM CONTINUOUS OUTPUT: | 94 dB @ 70V/97 dB @ 100V |
NOMINAL IMPEDANCE: | N/A |
TWEETER: | .75" (1.9cm) aluminum dome tweeter |
HIGH FREQUENCY HORN: | 90° x 90° Tractrix® Horn |
WOOFER: | 3.5" (8.9cm) long-throw IMG woofer |
CROSSOVER FREQUENCY: | 3.2kHz 12dB octave |
ENCLOSURE MATERIAL: | Anti-resonant, mineral-filled PPC; paintable, weather resistant |
ENCLOSURE TYPE: | Bass-reflex via dual front-firing ports |
TERMINALS: | Front baffle mounted accessed via rear pull-through |
DIMENSIONS: | 8.8"(22.4cm) H x 5.5"(14.0cm) W x 4.7"(11.9cm) D |
MOUNTING DEPTH: | 5.5"(14.0cm) D |
DIMENSIONS (PACKAGING): | 12.6"(320mm) H x 17.3"(440mm) W x 9"(230mm) D |
WEIGHT: | 4.8 lbs. (2.2kg); Shipping (pair): 10.8 lbs.(4.9kg) |
MOUNTING OPTIONS: | 1/4", 20-thread inserts on cabinet rear |
FINISHES: | White/Black enclosure and grille |
FEATURES: | Powder-coated aluminum grille w/rotatable logo |
WIRE GAUGE ACCOMMODATED: | up to 16AWG |
