Description
Description

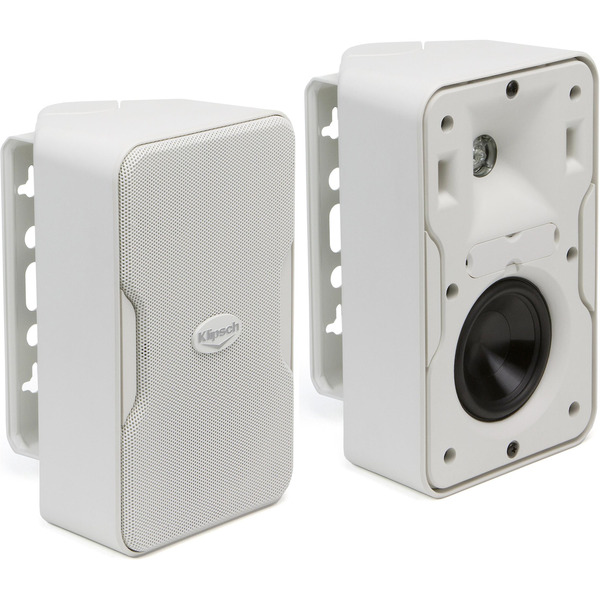

The Klipsch Compact Performance Series CP-6T is a versatile 70/100 Volt speaker that brings powerful musical sound quality to retail, hospitality, restaurant and bar environments, indoors or out. Proprietary Tractrix® Horn technology for highly-efficient, low-distortion, musical sound.
The CP-6T presents an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a corner with its V-shaped rear profile.
The Klipsch Compact Performance CP-6T cabinet speaker, with its weather-resistant design combined with its small stature, is the perfect 70/100 Volt distributed audio solution for retail, hospitality, restaurants and bars, whether operation is indoors or out. The proprietary Tractrix® Horn assures a highly efficient design that reproduces sound with unmatched low-distortion clarity and detail at both foreground and background volume levels. The conical-shaped, long-throw woofer is designed for minimal cone breakup for more accurate low frequency response and is reinforced with dual, front-firing ports in a bass-reflex design for maximum bass output wherever the speaker is located. The 90° x 90° horn dispersion assures wide, even coverage pattern in either a horizontal or vertical position. Traditional Klipsch efficiency provides maximum output with minimum wattage.
FAST, EASY INSTALLATION WITH A REFINED LOOK
The CP-6T makes a highly aesthetic statement, designed to have an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a wall-to-wall or wall-to-ceiling corner due to its V-shaped rear profile. The front bracket attachment combined with front baffle speaker terminals assures a safe, easy, one-screwdriver installation. Tool-free 15° increment angle adjustment makes positioning a breeze. Tap settings are also conveniently front-baffle placed for quick access. If needed, the CP-6T is provided with dual 1/4”, 20 thread, rear-positioned inserts for utilization of a third party bracket and/or a safety cable attachment. The CP-6T is offered in a paintable Black or White cabinet with matching grille.
OUTPUT THAT OUTPACES ITS DIMINUTIVE SIZE
With high sensitivity combined with multiple tap settings, the CP-6T is the perfect choice for numerous commercial applications of varying sizes. Its 8 ohm bypass allows quick adaptability for venues that specify separate 70/100 Volt and low impedance zones in the same system. Available in a paintable Black or White cabinet.
Specifications
Specifications
Frequency Response | 83 Hz - 22 kHz ± 3 dB |
Dimensions (W x H x D) | 7.0"(17.8cm) X 11.0"(27.9cm) X 6.1"(15.5cm) |
Finish | Black enclosure and grille |
Mounting | 1/4", 20-thread inserts on cabinet rear |
Weight | 6.85 lbs. (3.1 kg) |
Crossover Frequency | 3kHz 12dB octave |
Speaker Dispersion Angle | 90˚ X 90˚ |
Speaker Grille | Powder-coated aluminum w/rotatable logo |
Nominal Impedance | 8 Ohm |
Power Peak | 300W |
Power RMS | 75W |
Sensitivity | 92 dB |
Transformer Tap Settings | 30 watt Tap: 105 dB 70 V/108 dB 100V, 15 watt Tap: 102 dB 70 V/105 dB 100V, 7v Tap: 99 dB 70 V/102 dB 100V, 3.75 watt Tap: 96 dB 70V/99 dB 100V, 111 dB (8 ohm bypass) |
Tweeter | .75" (1.9cm) aluminum dome tweeter |
Woofer | 5.25" (13.3cm) long-throw IMG woofer |
