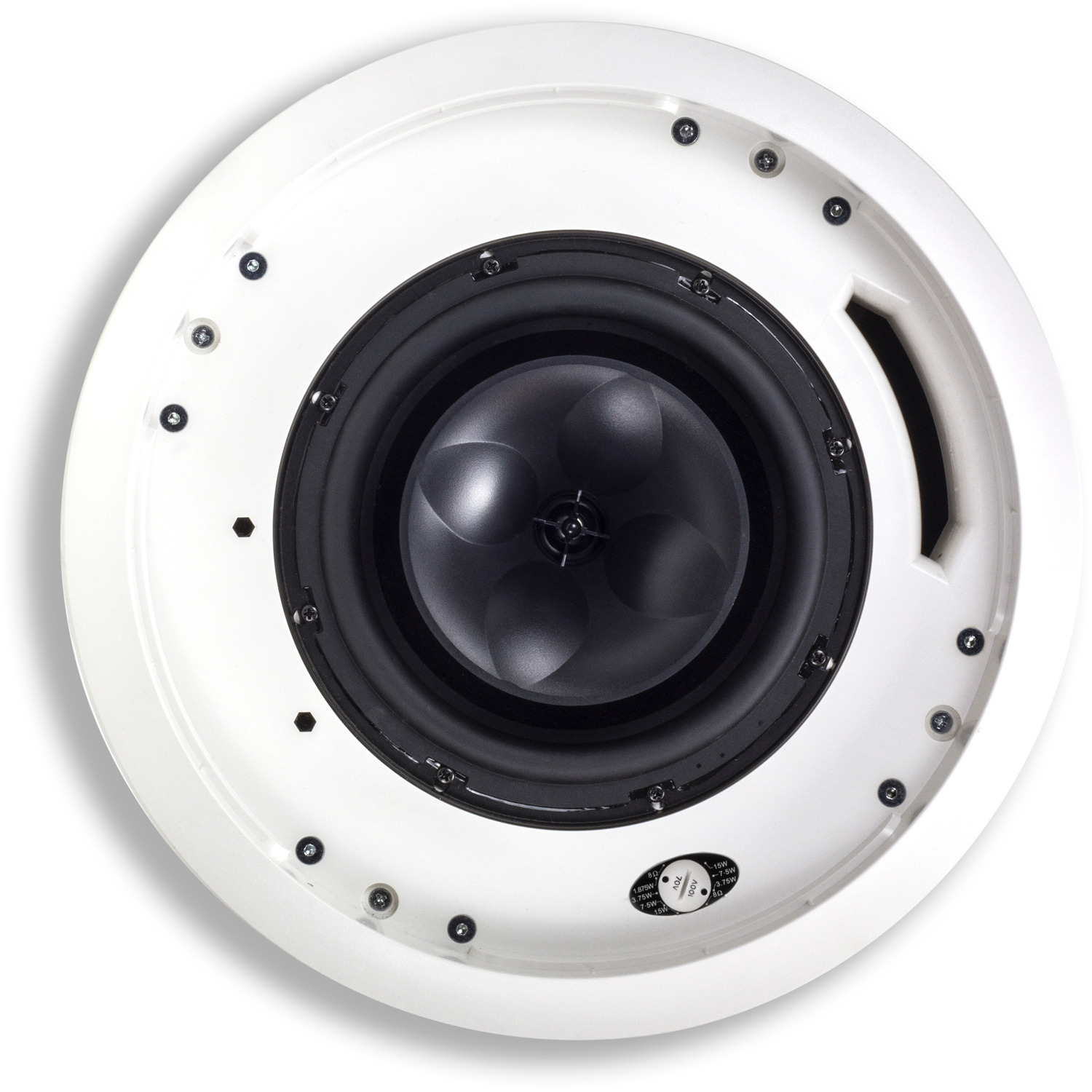

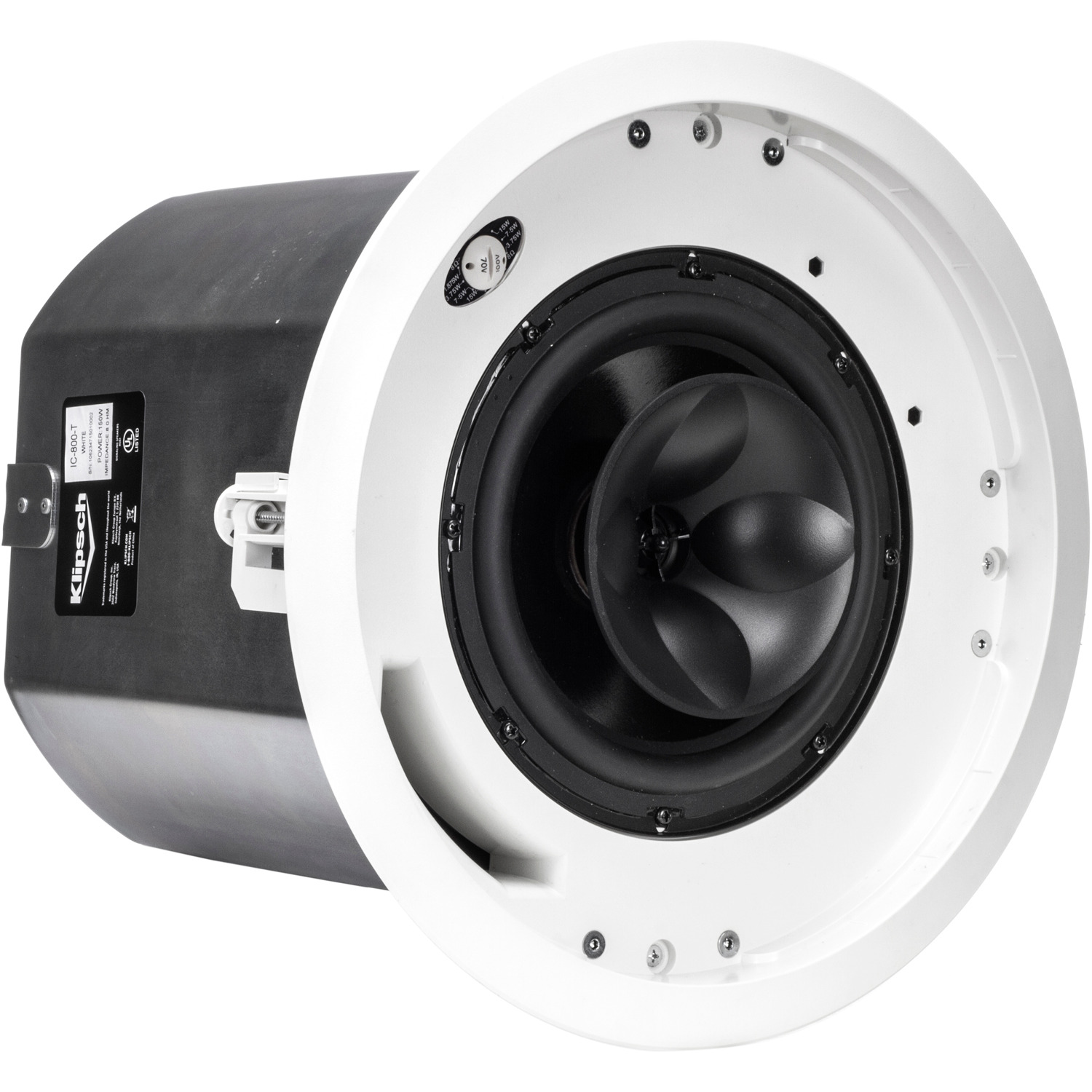

KLIPSCH OPEN BOX IC-800-T EACH 70/100V Commerical 8" 2-Way In-Ceiling Speaker White

The IC-800-T packs proven materials and Tractrix® horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.

• Tight 75 degree coverage pattern for high ceiling applications
• 100 watt, low insertion loss, multitap transformer for high output and less compression
• 70-volt, 100-volt or low impedance operation selectable via a front baffle switch
• Tractrix port design for deep bass with improved linear response
• Excellent low-frequency performance for applications where low-frequency bass extension is required
• Designed to mix & match with Klipsch CA-T speakers

The two-way IC-800-T features an 8-inch woofer and 1 inch titanium diaphragm compression driver on a 3.5 inch Tractrix Horn for smooth response and exceptional off-axis performance. The Tractrix port design helps provide deeper, extended bass with less distortion. The low insertion loss 100 watt transformer means you’ll be able to achieve higher output levels with less compression due to transformer saturation. The IC-800-T is shipped complete with a tile-bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.

FREQUENCY RESPONSE	1 (+/- 4 dB) 49 Hz - 20 kHz
POWER HANDLING2	100 watts (22V), 400 watts peak
MAXIMUM SPL	3 111 dB Continuous, 117 dB Peak
SENSITIVITY	4 92 dB
COVERAGE ANGLE	75º
DIRECTIVITY INDEX (DI)	8 dB
DIRECTIVITY FACTOR (Q)	6.3
NOMINAL IMPEDANCE (IN 8 OHM BYPASS MODE)	6.5 ohms, 4.2 ohm minimum
COMPONENTS	One 8" (20.32cm) woofer, 1” (2.54cm) Titanium diaphragm, compression driver
INPUT CONNECTION	Terminal Strip
TAP SETTINGS	70V: 100w, 50w, 25w, 12.5w, 100V: 100w, 50w, 25w
ENCLOSURE TYPE	Bass-reflex via Tractrix port
SAFETY AGENCY RATING	UL-1480, UL-2043
WIRE GAUGE ACCOMMODATED	14 AWG
CUTOUT DIMENSIONS	12.625” (32.1cm) diameter
MOUNTING DEPTH	12.75” (32.4cm)
OVERALL DEPTH	13.125” (33.3cm)
OVERALL WIDTH	14.15” (35.9cm) diameter
THRU HOLE WIDTH	12.5” (31.75cm)
WEIGHT	21 lbs. (9.5kg)
