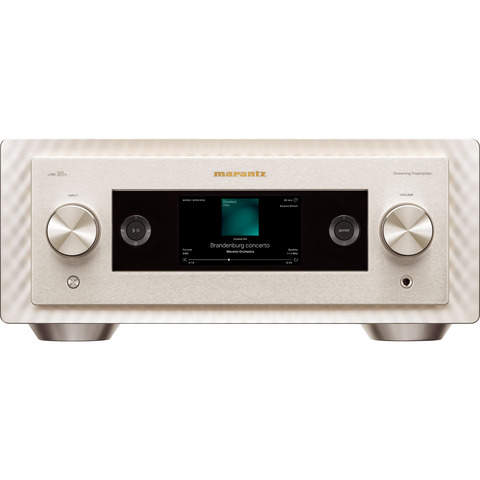

LINK 10n is a reference-class network audio player engineered using the same technology and artisanship that establish MODEL 10 and SACD 10 as class leaders.
CLICK HERE TO VIEW OWNERS MANUAL
Inspired by our past, engineered for our future
LINK 10n is a streamer and a fully featured preamplifier featuring a fully balanced architecture, analog and digital inputs, and a high resolution full-color display.
The Best of the Best
From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. It sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Sound Master Tuned
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.
Intuitive Display
LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.
Marantz Industrial Design
Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.
Preamplifier Function
LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.
|
Audio
|
|
| Frequency Response | PCM 2Hz–50kHz (-3dB) |
| Harmonic distortion | PCM 0.0004% |
| S/N | PCM 0.0004% |
| Dynamic range | PCM 0.0004% |
| Line Output Level | UNBALANCED : 2.0Vrms, BALANCED : 4.0Vrms |
| Headphone Output Level | 130mW / 32 ohms |
| Frequency Response (analog input) | 5 Hz–100 kHz (+0dB/-3 dB) |
| Harmonic distortion (analog input) | 0.001% (20Hz–20kHz) |
| S/N | PHONO (MC) : 76dB, PHONO (MM) : 88dB, BALANCED : 122dB, LINE : 122dB |
| Phono Input sensitivity | MM : 8mV, MC : 80mV |
| Phono Input impedance | MC Low : 32 ohms, MC Mid : 100 ohms, MC High : 390 ohms, MM : 39 kohms |
| Power Consumption | 7W, Less than 0.3W (at Standby), Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB) |
|
Audio Features
|
|
| Output Circuit | New HDAM |
| Power Transformer | Toroidal |
| Pre Amplifier Circuit | New HDAM High Grade, Full balance |
| Volume | Electric (MUSES 72323), Variable gain |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric |
| Headphone Circuit | Discrete |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| H/P On.Off Setting | H/P Off automatically, when in use |
| DAC Circuit | New MMM-Conversion |
| Dither | MMM-Stream, (Dither 1, 2, Off) |
| Noise Shaper | MMM-Stream, Balanced, Natural, Dynamic Music, Dymanic Voice) |
| Digital Filter | MMM-Stream, Filter 1, 2 Selectable |
| Jitter Reducer | Yes |
| DAC Master Clock Design (USB-DAC) | Yes |
| Asynchronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) |
| Fixed Analog Output (RCA) | Cinch × 1, Thick nickel plated independent terminals |
| Pre / Variable Audio Output (RCA) | Cinch × 1, Thick nickel plated independent terminals |
| Fixed Balanced XLR Output | Yes (1 Pair) |
| Pre/ Variable Balanced XLR Output | Yes (1 Pair) |
| RCA Input | Cinch × 1, Thick nickel plated independent terminals |
| Balanced XLR Input | Yes (1 Pair) |
| Phono input | Yes (MM / MC), Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position), Thick nickel plated independent terminals |
| Optical input / output (Maximum Support) | 2 / 1 (on/off switchable), 44.1 kHz - 192 kHz |
| Coaxial input / output (Maximum Support) | 1 / 1 (on/off switchable), 44.1 kHz - 192 kHz |
| HDMI input / output | No / Yes (ARC) |
| Headphone Output | Yes (Φ6.3 ×1) |
| Subwoofer | Yes with LP filter adjustable |
|
Easy to Use
|
|
| App | HEOS app |
| Remote Controller | 10 series universal Remote control |
| Front Panel Display | New HD TFT Color Display |
| Display Language | N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian) |
| Dimmer for Front Display | 20 steps |
| Level meter | No |
| Volume Display | 0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable |
| Voice Assistant | Apple Siri, Google Assistant |
| Control with App via Network Player (Use Remote Control Bus) | No |
| External Amp Control with App (Use Remote Control Bus) | Yes |
| Synchronously turn on amplifier and switch the input (Use Remote Control Bus) | Yes |
| HDMI CEC | Yes |
| Remote Controller | RC004PMND |
|
General
|
|

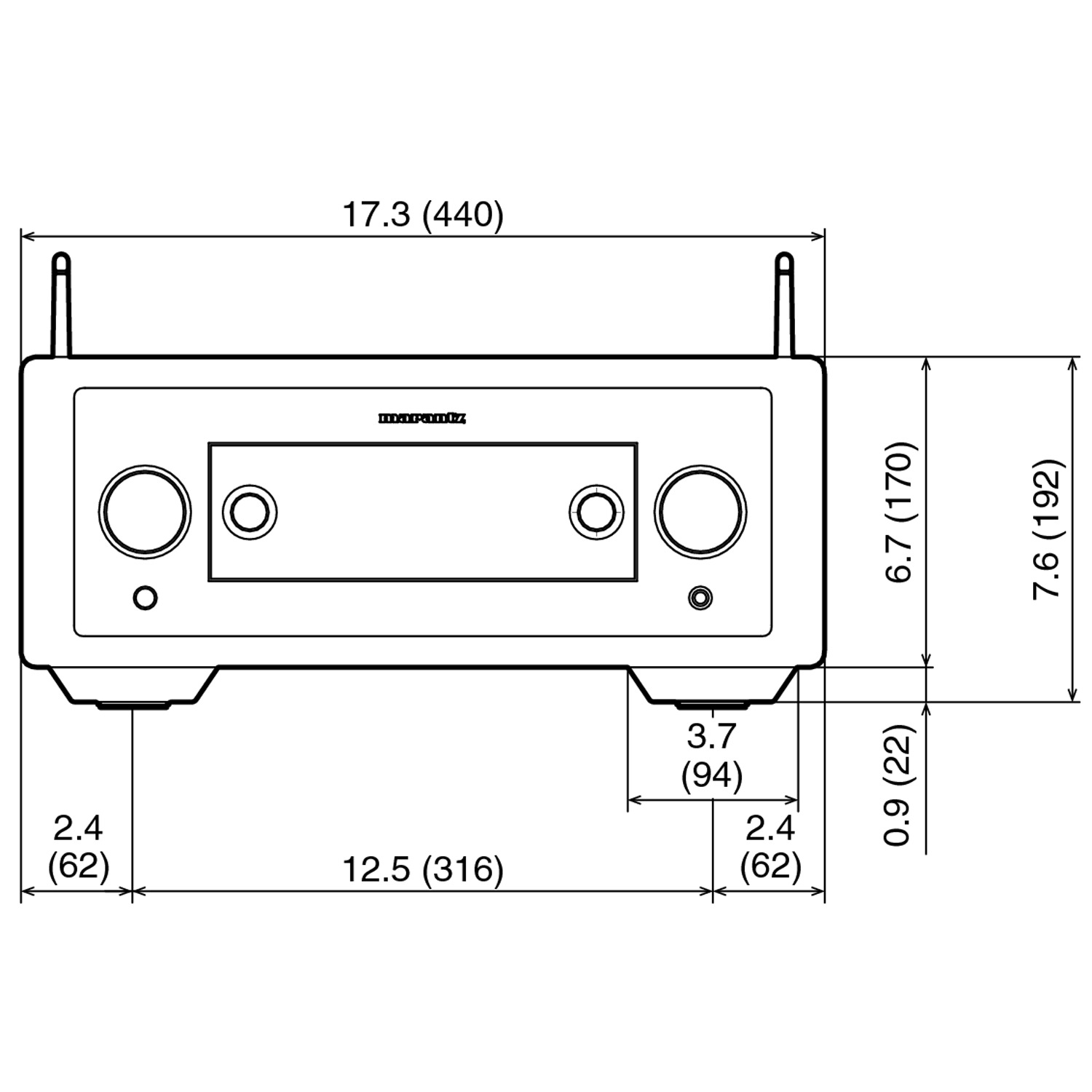

| Unit (W × H × D mm) | 17.3" × 7.6" × 18.6" (with antenna) |
| Cabinet Size | 17.3" × 7.6" × 16.6" |
| Net weight | 73.4 lbs |
| Front (Center) Panel | Aluminum |
| Back-shell | Aluminum |
| Front panel illumination | Yes (All sides, Dimmer) |
| Side cover | Aluminum (Thickness: Max 15.8mm) |
| Interior ilumination | No |
| Rear Panel | Triple layer Copper-plated |
| Chassis Material | Copper-plated |
| Bottom Layer / Bottom plate | Copper-plated |
| Volume Knob | Solid aluminum (Bearing construction) |
| Input Selector | Solid aluminum (Bearing construction) |
| Foot | Solid aluminum with Copper |
Buying a Marantz Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Marantz product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Marantz repair center (you can look-up locations online here or call 800-654-6633)
Marantz, like all electronics manufactures, receives products returned for various reasons. In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cannot provide any additional details regarding its past. All products are processed by Marantz certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Marantz Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
