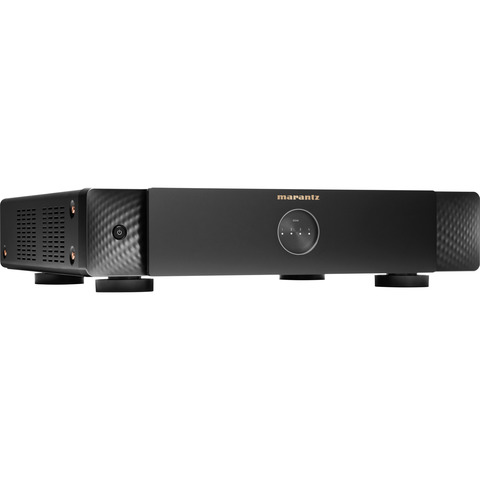

MODEL M4 is a four-zone, rack-mountable distribution amplifier engineered to offer superb Marantz sound from a wide range of streamed music services, locally connected music sources, and your TV.
CLICK HERE TO VIEW OWNERS MANUAL
Distribution Done Differently
MODEL M4 offers an innovative and intelligent take on traditional distribution amplifier designs. A rack-mountable distribution amplifier for dedicated music lovers, it delivers superior sound from a wide range of streamed music services, locally connected music sources, and your TV (via the Optical inputs). MODEL M4€™s industrial design complements the latest generation of Marantz hi-fi and AVR products. It has been carefully engineered to deliver the extreme robustness, simple control functionality, and flexible configuration that is essential to successful home integration.
Power Where You Need It
MODEL M4 delivers enough power to drive speakers across four rooms in your home. For even more power, use Bridge Mode which offers up to 4 x 200W of output.
Any Sound, Anywhere
Stream your favorite music or TV audio (via the Optical inputs), independently or grouped, in four different rooms with MODEL M4€™s four built-in HEOS modules.
Fully Featured, Fully Flexible
With all the Key features every integrator could need, MODEL M4 is extremely robust, easy to use, and flexible, making multi-room effortless.
Engineered for High Resolution
Whether it€™s using streamed services, your network, optical digital, or USB, with MODEL M4 you€™ll experience your sound with the high resolution it deserves.
Marantz Musical Digital Filtering
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
|
Amplifier
|
|
| Power Amplifier Rated output & THD (8 ohm) | 8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %) |
| Power Amplifier Rated output & THD (4ohm) | 8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1% |
| Frequency Response | 20 Hz to 20 kHz : ±1 dB |
| Connected loudspeaker Impedance | 4 – 16 Ω/ohms |
|
Audio Inputs / Outputs
|
|
| Loudspeaker Binding Posts | 4-way binding posts |
| Digital Inputs | TOSLINK (2) |
| Analog Inputs | RCA L/R (4) |
| Preouts | RCA L/R (4) |
| Subwoofer Out | RCA Mono (4) (selectable) |
|
Inputs Audio Options
|
|
| Channel Assignments | Stereo (Default), Dual Mono |
| Volume Limit | 80-100% |
| Balance | -15dB to +15dB |
| Adjustable High Pass / Low Pass Filters | 40-250 Hz / 40-120 Hz |
| EQ Bass, Treble | -5dB to +5dB |
| Sound Modes | Stereo, Direct, Virtual, Dialog Enhancer, Night Mode |
| TV Sound Grouping | Yes |
|
Audio Format Support
|
|
| Decoding | Dolby Digital, LPCM, DSD |
| Stereo PCM / Multi-channel PCM | Yes / Yes |
| Stereo File Formats (HEOS network share or USB) | WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz |
|
Streaming Technologies
|
|
| Bluetooth Receive | N/A |
| Bluetooth Trasmit | N/A |
| AirPlay | AirPlay 2 |
| Spotify | Spotify Connect |
|
Music Services and Sources
|
|
| Music Services Supported ((HEOS®, subject to change and local availability) | Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud. |
| Music stored on mobile device | Yes (iOS, Android or Kindle Fire) |
| NAS (Network Attached Storage) | Network share |
| USB Storage Device Playback | Yes (4) (FAT32, NTFS formatted drives) |
|
Networking & Control
|
|
| Wired Connectivity | Ethernet (2) |
| Wireless Connectivity | N/A |
| IR Input | N/A |
| IR Learning | N/A |
| Control System Compatibility via TCP/IP | Creston, Control4, AMX |
| HEOS® App | iOS, Android, Kindle Fire |
| Trigger Output DC 12V | Yes (4) |
|
General
|
|
| Product Color | Black |
| User Interface | Reset button, Front power button, Rear power switch |
| Dimensions (W x D x H) Inches | 16.34 x 4.17 x 17.4 |
| Dimensions (W x D x H) mm | 415 x 106 x 442 |
| Weight (lbs) | 18.01 |
Buying a Marantz Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Marantz product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Marantz repair center (you can look-up locations online here or call 800-654-6633)
Marantz, like all electronics manufactures, receives products returned for various reasons. In 2023 consumers returned 23 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and cannot be resold as new again. The history and reason why a product was returned is not provided to us, thus we cannot provide any additional details regarding its past. All products are processed by Marantz certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Marantz Factory Refurbished" product.
Most (not all) units are cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we cannot provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
