To celebrate our 50th anniversary (1973 - 2023) and all these years of shared passion for sound, we pay homage to our iconic integrated amplifier: NAIT 1. Made in England, NAIT 50 is presented in a limited-edition of 1973 pieces.
- Aesthetically styled on the original NAIT 1, released in 1983.
- Full linear integrated amplifier with 25W class AB power stage.
- High-end manufacturing in the United Kingdom.
- 3 input selection buttons. Locking switches control 3 relays for input selection. This input selection has been significantly improved compared to NAIT 1.
- Headphone output jack (6.35mm). This output uses a new preamp/headphone amplifier with a gain of 16dB.
- Stand-by power 0.5W. Using two internal power supplies; one is a high-quality audiophile linear type, based on a large toroidal transformer. The other is a highly efficient SMPSU for 0.5W power consumption in standby during standby mode.
- Soft start power-up sequence, to minimize power-up inrush current.
- Automatic shutdown after 17 minutes. Auto-off can be disabled.
- New MM phono stage with discrete transistors, for improved sound performance.
- Aluminum construction using rectangular extrusion for a chrome bumper style.
- 5mm domed white LED power switch.
Back to the future
NAIT 50 is the worthy successor of NAIT 1, Naim’s integrated amplifier released in 1983.
Every part of the NAIT 50 has been redesigned. It is a ‘big box’ audiophile Naim integrated in a small box. Some of the new features on this anniversary edition include the new discrete transistor headphone amplifier found in the New Classic series, so you can enjoy all types of listening. Behind its sleek design, NAIT 50 also delivers top-notch sound quality.
The ultimate listening experience
25W of power per channel with peaks of 225W, three analogue inputs, including a discrete transistor MM phono stage: NAIT 50 combines power, performance, and versatility. It reproduces the most exacting dynamics with all the confidence and authority we have come to expect from a Naim amplifier. It can be linked with all loudspeaker types, as well as a streamer, for the ultimate hi-fi system.
Assertive
Naim products are designed to be both contemporary and timeless. Our creations forgo any unnecessary adornments that detract from performance and sound quality.
Handcrafted in the Naim workshops, NAIT 50 benefits from uncompromising design quality and presents a meticulous aesthetic. The front panel combines tradition and modernity, with a nod to the design codes of NAIT 1.
Specifications
Specifications
| Product Type | Integrated amplifier |
| Damping factor into 8 | 36 |
| Input signal for clipping | Line: 88mV |
| Phono: 710mV | |
| Peak current into 1 (1kHz 1mS) | Peak +/- 15 (peak power at 225W) |

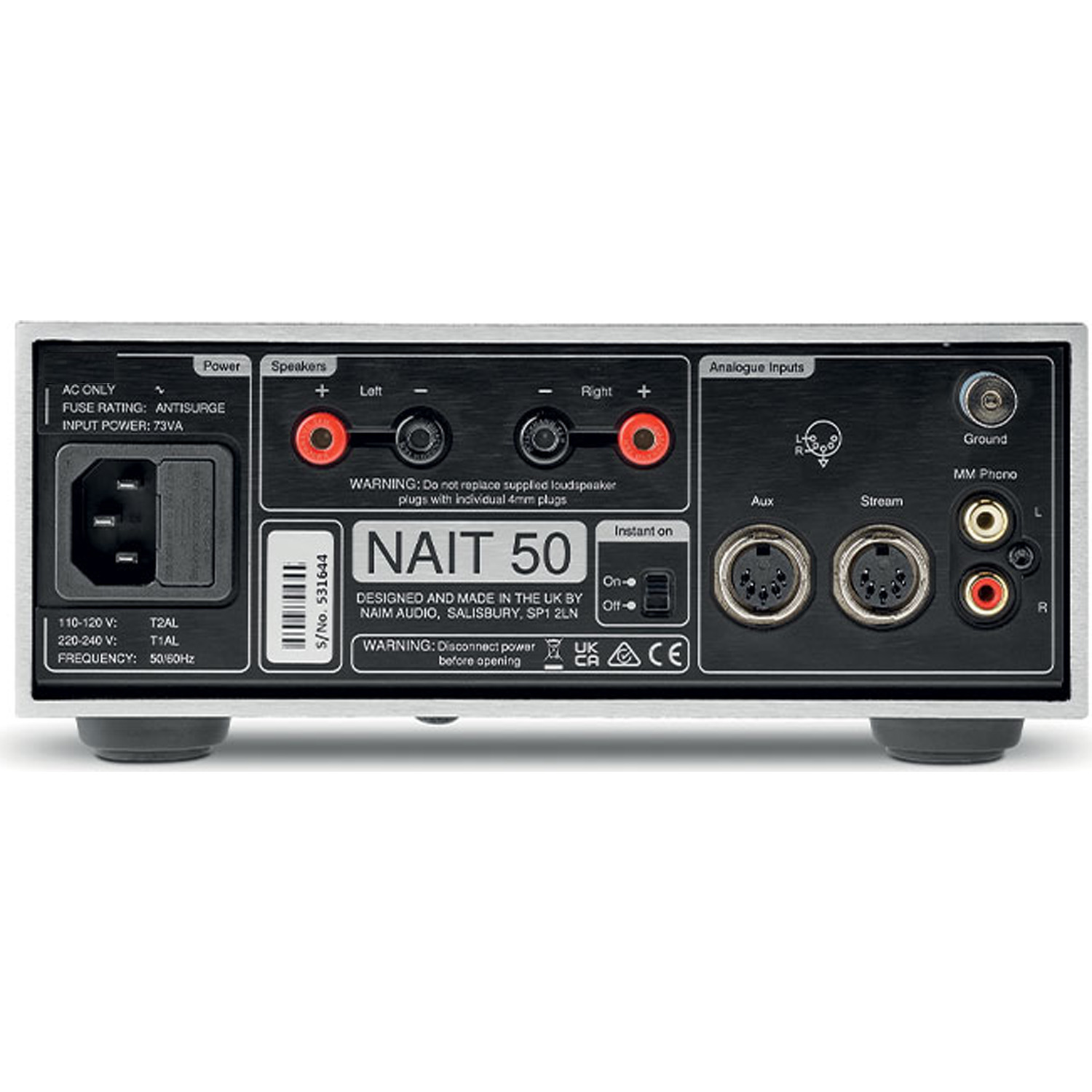

| Audio Inputs | 1 x RCA pair (47kΩ), in MM phono level 5mV |
| 2 x 5-pin DIN (stereo, 47kΩ), line leve | |
| MM Phono Input | 47kΩ and 100pF |
| Crosstalk | Line: 85dB, (at 1kHz, 25Watts 8Ω) |
| Phono: 80dB | |
| THD + N | 0.02% |
| Headphone Output | 1.5Watts 16Ω |
| Signal-to-Noise Ratio | Ref. 1Watt 8Ω, A-weighted : Line: 80dB, 1V input / Phono: 78dB, 5mV input |
| Ref. 25Watt 8Ω, A-weighted: Line: 93dB, 1V input / Phono: 84dB, 5mV input | |
| Power Outputs | 25Watts 8Ω @0,1% THD+N |
| 40Watts 4Ω @0,1% THD+N | |
| 60Watts 2Ω @1% THD+N | |
| Frequency Response | Line: -3dB @ 4Hz to 45kHz |
| Phono: -3dB @ 6Hz to 30kHz | |
| Gain | Phono: +40dB (@1kHz RIAA) |
| Pre-amplication (and headphone): +16dB | |
| Power Amplifier: +29dB | |
| Weight | 9.9lbs (4.5kg) |
| Dimensions (HxWxD) | 33/8 x 81/8 x 125/8" (8.7x20.7x32.1cm) |
| Mains Supply | 115V or 230V, 50/60Hz |
| Power Consumption | Typical use consumption: 20W |
| Stand-by mode consumption: <0.5W |
