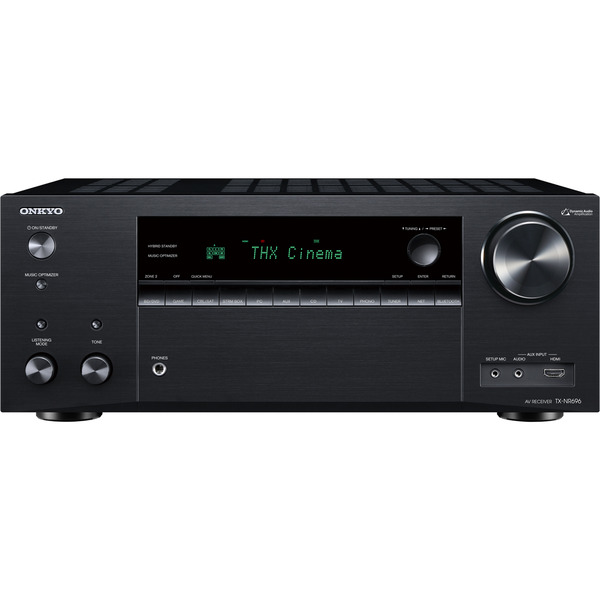

ONKYO TX-NR696 7.2-Ch x 100 Watts A/V Receiver

A harmonious mix of tech and tradition, the TX-NR696 adapts to entertainment life and finds the emotion in every sound source, from 3D film-scores to vinyl records. SMART AV Receiver™ gathers Chromecast built-in, Works with Sonos, AirPlay 2, and DTS Play-Fi^® with streaming services for smooth multi-room audio evolved by support for the new high-speed 802.11ac (2x2 MIMO) Wi-Fi^® specification. Dolby Atmos^® and DTS:X^® pull audiences deep into movies and games, THX Certified Select assuring a theater-reference experience. If a 5.2.2-ch setup isn’t possible, Dolby Atmos Height Virtualizer and DTS Virtual:X™ can create a 3D sound-field from horizontal speaker layouts. Separate Zone 2 outputs with switching also enable 7-ch layouts in Main plus Zone 2 speakers. With revitalized DAA system, 4K/60p/HDR HDMI^® terminals, and many extras, this product excels in every aspect.

CLICK HERE TO DOWNLOAD OWNERS MANUAL

• 100 W/Ch (8 Ohms), 210 W/Ch (6 Ohms) THX® Certified Select™ DAA system
• SMART AV Receiver™ Works with Sonos^*1, Chromecast built-in, AirPlay 2, DTS Play-Fi®, FlareConnect, Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, TuneIn
• Supports 5.2.2-ch Dolby Atmos® and DTS:X® playback
• Dolby Atmos Height Virtualizer^*2 and DTS Virtual:X™^*2
• Refined HDMI® grounds, separate SoC board, enhanced power amps
• HDMI Sub/Zone 2 output shares media to a second display or projector
• Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi® specification
• Zone 2/Zone B line-out with DAC shares D/A audio (including HDMI/SPDIF)
• Separate Zone 2 outputs distribute D/A audio sources (including HDMI/SPDIF)
• Stereo Assign Mode to switch Front playback to Height channels
• DSP-based Vocal Enhancer improves dialog audibility
• GUI with OSD via HDMI features media input/output data display function
• HDMI supports 4K/60p, 4K HDR, 4:4:4/24-bit, BT.2020, HDCP 2.3^*3
• AccuEQ Advance with AccuReflex™
• One-touch volume memory-presets for A/V inputs

*1 Sonos Connect sold separately .
*2 Available via firmware update.
*3 HDCP 2.3 compatibility enabled with a future firmware update.

SMART AV Receiver™ leads in multi-room audio^™

SMART AV Receiver is the heart of your home entertainment system. Access streaming content from Amazon Music, Pandora®, Spotify®, TIDAL, Deezer, and TuneIn and share sound as part of a multi-room system via Works with Sonos, Chromecast built-in*, AirPlay 2, DTS Play-Fi®, and FlareConnect™.
* The unit may automatically download and apply an Over-the-Air software update during setup.

Works with Sonos

The TX-NR696 can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Connect*. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app*.
*Sonos Connect sold separately. Sonos app is available free for iPad, iPhone, and Android™ at the App Store and Google Play. Please check device and OS compatibility before installation.

Chromecast built-in^* with the Google Assistant

Stream any music from your smartphone, laptop, or PC to the receiver with ease. Control playback with Chromecast-enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac or Windows® laptop, or Chromebook™. If you have a smart speaker featuring the Google Assistant, you can cue, play, and control music playback by voice.
*The unit may automatically download and apply an Over-the-Air software update during setup.

THX^® Certified Select^™ theater-reference sound

THX Certified Select guarantees the same reference volume and sound quality of at a commercial theater in rooms where the viewing position is about 10-12 ft. from the screen. To deliver THX reference movie sound, receivers must pass 2,000 bench-tests in 75 categories covering 14,000 data points.

Dolby Atmos^® and DTS:X^®- setting sound free

Dolby Atmos® and DTS:X®formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.

Dolby Atmos Height Virtualizer

When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer* enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

Flexible 3D sound with DTS Virtual:X^®

DTS Virtual:X* is a surround virtualization technology that creates an immersive 3D sound-field from horizontal speaker layouts without requiring height-speaker connection. It uses DSP algorithms to create a sense of 3D spatiality and is effective in rooms of any size and shape. DTS Virtual:X works with DTS:X, DTS® formats, and non-encoded stereo soundtracks.

Ready for 4K HDR entertainment^®

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.3^* compliant.
*HDCP 2.3 compatibility enabled with a future firmware update.

Rich analog sound from any digital source

High-quality AKM 384 kHz/32-bit D/A conversion is enhanced by VLSC™ filtering (Front L/R channels), an original technology that erases digital noise arising from D/A conversion. Enjoy the purity of Hi-Res Audio sources, CD, and streaming music.

Dynamic Audio Amplification

Refined over 70 years to deliver an emotional listening experience, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stage. Unique circuit topology prevents phase-shift for accurate sound, while high current improves speaker control for thrilling dynamics. Driving 4-ohm loads through all channels, DAA has power to move you.

Key design enhancements improve sound

While cosmetically familiar, the TX-NR696 has significant upgrades inside that control noise, boost driving power, and improve S/N performance. A new HDMI® board features larger, stronger, better-finished grounds and shortened signal-paths for clean and accurate A/V signals. New SoC processor has its own board remote from audio signal-paths to reduce noise. Key aspects of the power-supply line have been strengthened and upgraded in pursuit of driving power, which you can hear in the blistering attack speed and force of the bass, and in the clearer separation and localization of instruments across a large and spacious soundstage.

AccuEQ Room Acoustic Calibration with AccuReflex^™

AccuEQ creates a harmonious sound-field in your room. It detects speaker presence, size, impedance, and distance from a measurement position, and sets sound-pressure levels. It then selects the subwoofer crossover and EQ's all speakers, including the sub. AccuReflex optimizes 3D audio reproduction through Dolby Atmos-enabled speakers. It resolves phase-shift arising from path differences between directional and non-directional sounds. Enjoy a cohesive 3D sound-field with vertical movement and overhead dimensionality.

Zone 2 outputs share audio flexibly

Zone 2 outputs enable 7-ch surround in Main plus stereo speakers in Zone 2. Distribute different analog, NET, Bluetooth®, SPDIF, and HDMI audio sources in either or both zones at the same time (there's a Zone 2 DAC) just by switching to a 5.1-ch + Zone 2 layout. Output from Zone 2 and Zone 2 line-out is enabled.
*HDMI and SPDIF supports PCM audio only. HDMI audio available on inputs 1-3.           

Quad-core SoC supports 802.11ac Wi-Fi^®

A quad-core SoC (System on a Chip) has power to perform multiple processing tasks at once. It evolves network functions and supports the latest high-speed 802.11ac (2x2 MIMO) specification while compatible with 802.11b/g/n dual-band routers.
*Note: Some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels.

Clearer dialog at the touch of a button

This technology solves inaudible dialog in TV programs and movies. DSP-controlled Vocal Enhancer identifies voice frequencies so you can raise or lower them with keys on the remote or via the controls on the front panel.

Share audio or listen privately

Connect an audio system via analog RCA input and the AVR's Zone 2/Zone B line-out. With Zone 2, you can play the same or different analog/digital sources (including SPDIF and HDMI) in either or both rooms at the same time. Zone B is ideal for connecting a compatible transmitter so you can listen to any source-including the TV-through wireless headphones, perfect for midnight movies and TV.

Relax with Stereo Assign Mode

At the touch of a button, Stereo Assign Mode switches playback from Front speakers to either Surround, Rear Surround, or Height speaker pairs. Ideal for ambient listening, BGM, or any time you want to create a relaxing atmosphere.

Amplifier
# Channels	7.2
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)	100 Watts, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven)	210 Watts, 10% THD
Dynamic Audio Amplification	✓ (for Clear and Realistic Sound)
H.C.P.S. (High Current Power Supply)	✓
Non-Phase Shift Amplifier	✓
THX Certified	✓
Continuous 6 Ohms Rated	✓
Certified 4 Ohms Performance	✓
Discrete Output Stage Circuitry	✓
Amplifier Design	Linear Class A/B
Independent Block Construction (Amp/Preprocessor)	-
Bi-amp Capability For Front	✓
Processing
Dolby Atmos	✓ (5.2.2)
Dolby Atmos Height Virtualizer	✓ (Enabled with a future firmware update)
32-Bit Digital Signal Processing Engine	✓
Dolby Decoder	Dolby Atmos, Dolby True HD
DTS:X	✓ (5.2.2)
DTS Virtual:X	✓ (Enabled with a future firmware update)
DTS Decoder	DTS:X, DTS: Neural:X, DTS-HD Master Audio
ONKYO GAME Surround Modes	✓ (Rock, Sports, Action, RPG)
VLSC for Noiseless Audio Processing	✓ (Front L/R Channels)
THX Processing Mode	✓
CinemaFILTER	-
AccuEQ Room Calibration	✓ (w/ AccuReflex)
Phase-Matching Bass Boost	✓
Direct/Pure Mode	✓ / -
Pure Direct Analog Path Mode	-
Advanced Music Optimizer	✓
384K/32 Bit DACs	✓
192K/24 Bit DACs	-

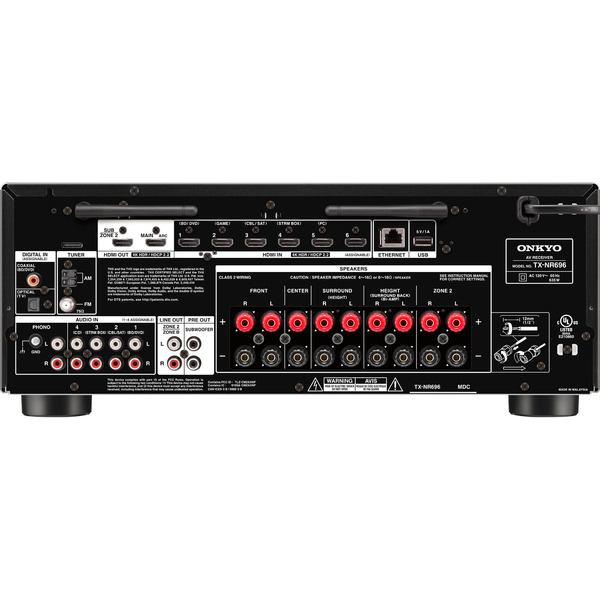

Connectivity
Analog Audio IN	4
Phono Input	✓
Digital Audio IN (OPT/COAX)	1 / 1
Composite Video I/O	-
Component Video I/O	-
Front Panel HDMI	✓
Front-Panel A/V	1 (Analog)
USB Input	✓ (Rear)
HDMI I/O	6 / 2 (Main/Sub)
HDMI 4K/60 Hz- Capable HDMI Terminals	✓
HDCP 2.3 Copy-Protection Compatibility	✓ (Enabled with a future firmware update)
HDMI Support for High Dynamic Range	✓ (HDR10 and Dolby Vision)
HDMI Support for 3D, Audio Return Channel and CEC	✓
BT.2020 Support	✓
HDMI Support for Deep Color, x.v.Color, LipSync	✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM	✓
Analog To HDMI Upconversion	-
1080p to 4K Upscaling	✓
4K Passthrough	✓
Analog Pre-Outs	Subwoofer (x2)
Speaker A/+B	-
Powered Zone 2	✓
Powered Zone 3	-
Zone 2/ Zone B Line Out	✓
Zone 2 Video Out	-
Zone 2 Digital to Analog Audio Conversion	✓ (Net/SPDIF/HDMI)
Zone 3 Line Out	-
Whole House Mode	-
FlareConnect Multi-room Audio	✓
Airplay & Airplay 2	✓
Chromecast built-in	✓
Works with Google Assistant	✓
Supports Onkyo Remote App	✓
Internet Radio Capable	✓
Spotify Connect Support	✓
Tidal	✓
Amazon Music	✓ (through Onkyo Music Control app)
Streaming Audio From PC / Network	✓
Hi-Res Streaming Audio Formats	✓ (DSD 11.2 MHz/5.6 MHz/2.8 MHz, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC)
Streaming Audio From USB memory	✓
Wireless Network	5GHz(11ac/a/n), 2.4GHz(11b/g/n)
Bluetooth	✓ (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
Integration Access
RS-232	-
IR Input	-
IR Output	-
Ethernet	✓
ONKYO-RI System Control	-
RIHD (Remote Interactive Over HDMI)	-
12V Trigger	-
Miscellaneous
Pre-Programmed Remote	-
Hybrid Standby Function	✓
Smart Grid-Ready	✓
Auto Speaker Calibration W/Mic.	AccuEQ w/ AccuReflex
OSD Out	-
Solid Aluminum Front	-
Transparent High-Grade Speaker Terminals	-
Detachable AC Cord	-

Onkyo Factory Refurbished

Buying a Onkyo Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with accessories included. When you consider that a factory-renewed Onkyo product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Onkyo repair center (you can look-up locations online here or call 201-785-2600)

Onkyo, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and can't be resold as new again. The history and reason why a product was returned is not provided to us, thus we can't provide any additional details regarding its past. All products are processed by Onkyo certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Onkyo Factory Refurbished" product.

Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can't provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
