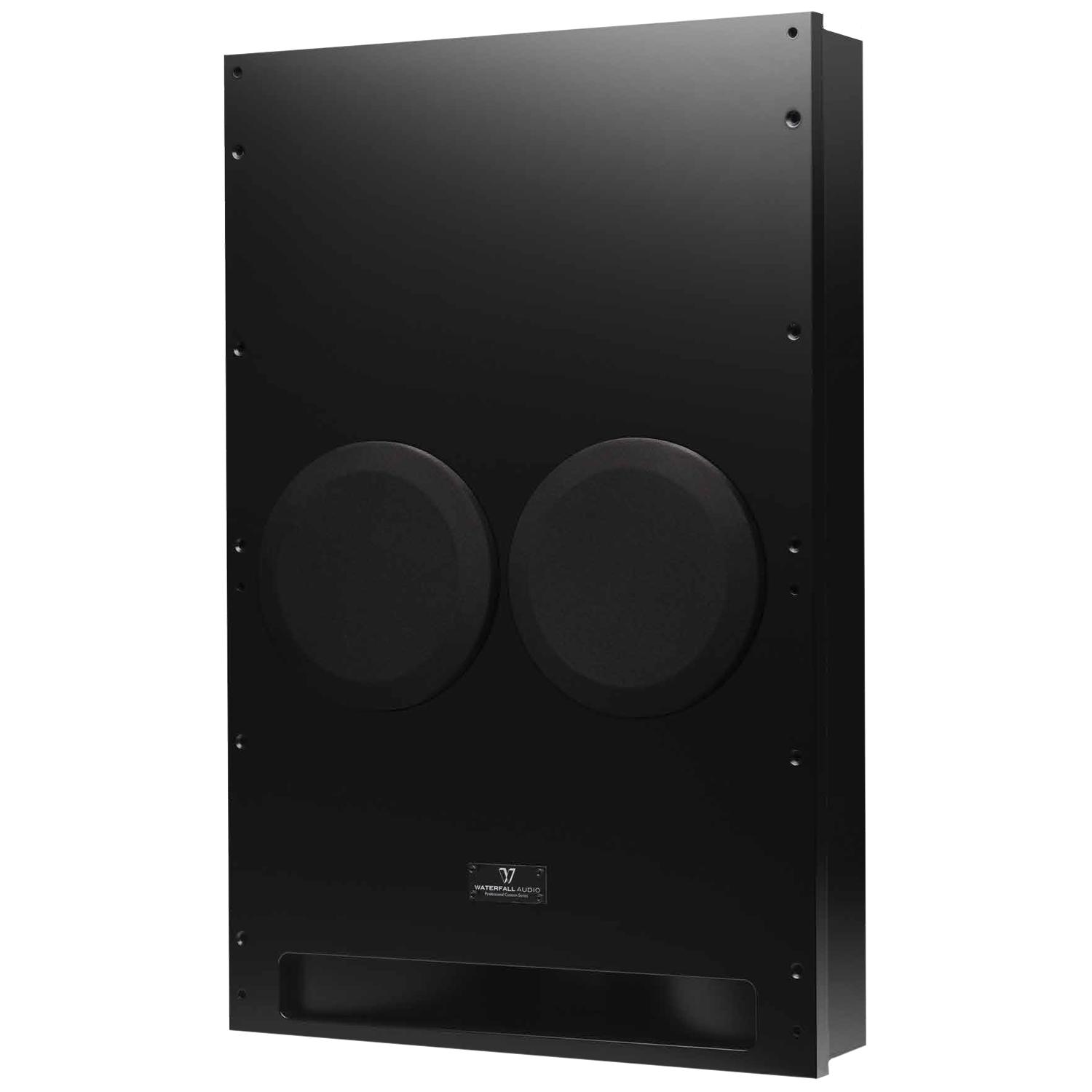

WATERFALL AUDIO Pro Custom Series SUB 600 Passive Dual 9" Subwoofer Requires Amplifier
Free shipping
WATERFALL AUDIO Pro Custom Series SUB 600 Passive Dual 9

WATERFALL AUDIO Pro Custom Series SUB 600 Passive Dual 9" Subwoofer Requires Amplifier

Item #: WTRFALL-SUB600-OB
Availability: IN STOCK, ships out in 1-2 Business Days.
$2,499.00
$1499.00
40% off msrp

Item Condition:
Open Box
Manufacturers Warranty:
5 Year Accessories4less
Manufacturers Part #:
A051
Ask an expert Accessories4Less advisor
1.800.657.0195
Chat



Description

Description

With the SUB600S you will experience low frequency in a new dimension like never before. Its 2 x 23 cm (9″) long excursion drivers (32mm / 1 ¼” ) move more air than a traditional 30cm/12″ driver and much quicker as well (2 drivers versus one). Two SUB600S deliver more energy than a 15″ Driver with amazing precision and speed.

Features:

  • Powerful cinema subwoofer for in-wall installation.
  • 900 Watts peak power
  • Equipped with 2 x 23 cm / 9″ Atohm LD230 long-excursion drivers (32mm / 1,25″ membrane stroke)
  • For installation behind an acoustically transparent screen.
  • Reduced depth: less than 20 cm / 7.90″
  • High resilience*
  • High sound pressure
  • Low distortion (musical and acoustic low frequencies)

ATOHM LD230

The driver’s cone is a mechanical piece which reproduces the signal by oscillating around a rest point so the ideal driver has to move back and forth in a perfectly symmetric way.

During our long years of research and development in France, we have worked to optimize the following parameters to produce such high performance drivers. These optimized parameters are: symmetrical movement of the suspensions, symmetrical force factor of the magnetic field generated by the magnet, stability of the inductive value of the driver and heat dissipation. Thanks to the use of our ultra-powerful engine, the Atohm LD230 driver produces a fabulous bass extension, without any distortion and a phenomenal power handling.

Technical Design

The Innovating design “DPA” (Down pipe airflow) of our SUB600S allows for space reduction behind the screen. In addition to the DPA design, we have a wide and narrow shaped air vent which lets the air flow towards the ground with maximum efficiency, allowing to reduce space between the screen and the Subwoofer. When some other products on the market might need up to 1m (4’) space between the back wall and the screen, the use of 1 or more SUB600S requires a max distance of 30cm (12″)between the back wall and the screen.

Specifications

Specifications

TYPE 2 drivers, bass reflex
RECOMMENDED AMPLIFIER (WITHOUT CLIPPING)* 400 to 600 W
PEAK POWER 800 W
IMPEDANCE (AVERAGE/MINI) 8 / 4 Ohms
EFFICIENCY (2.83V/1M) 90 dB
FREQUENCY RESPONSE (+/- 3 dB) 29 Hz - 150 Hz
BASS DRIVER 2 x 230 mm / 9“ Atohm LD230EX
DIMENSIONS (width x depth x height in mm) (approx. inches) 570 x 197 x 875 / 22.44” x 7.76” x 34.45”
WEIGHT Kg (approx. lbs.) 34 kg / 75 lbs
