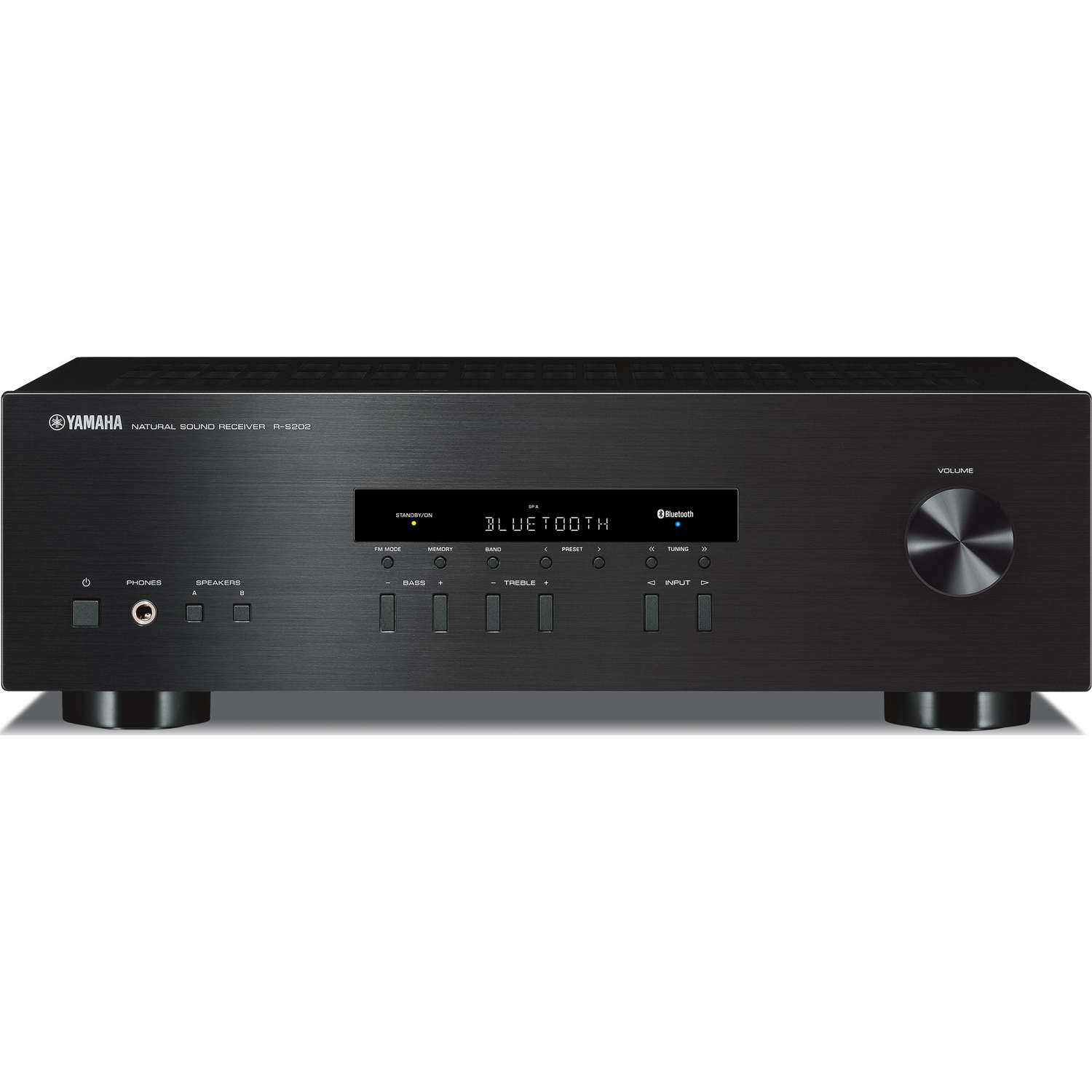

Yamaha, the most trusted brand in home audio, adds Bluetooth® compatibility in this Hi-Fi receiver for easy wireless access to streaming music services and music on your smartphone or other devices. Enjoy the connectivity and the outstanding and legendary quality of Yamaha natural sound.
CAN ONLY USE 8 OHM SPEAKERS. WILL NOT ALLOW A+B TO PLAY TOGETHER UNLESS SPEAKERS ARE 16 OHMS
*Sold exclusively within the US only. No shipments allowed outside the US!
CLICK HERE TO DOWNLOAD OWNERS MANUAL
- Advanced circuitry design
- Bluetooth® to your favorite streaming music services
- 40 station FM/AM preset tuning
- Brushed aluminum finish and simplistic design
- Speaker selector for two systems

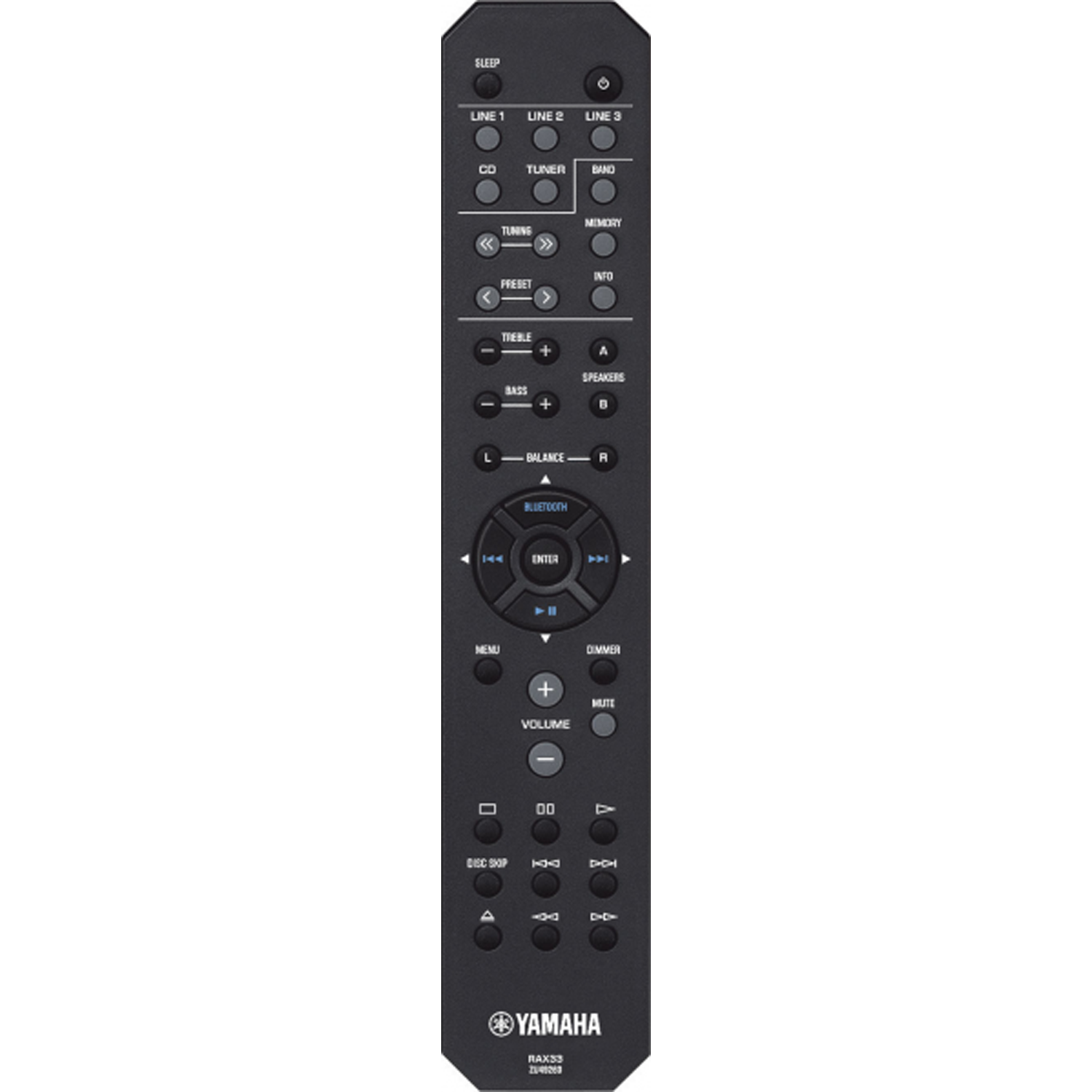

- Simple remote control layout
- Headphone terminal
Heritage of Technical Expertise
Rooted in technology and expertise. The R-S202 was created from years of experience and technological expertise in receiver design. With a music heritage that runs over 125 years deep, our passion and reputation for Hi-Fi was born from the music side and extended into electronics. The concept of natural sound is based on reproducing music as it would be experienced live. Built with scrupulous care from the circuit design to basic sound reproduction, the R-S202 reproduces high-quality, musically-rich sound for the entry level consumer.
High-Power Output
Never peak. The R-S202, with two channels of 100 W high-power output* that are above its class, has a high-quality sound design that minimizes the length of signal routes and optimizes the circuit layout. Positioning the power transformer near the amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground connect at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound clarity stripped of noise and other signals.
*8 ohms, 40 Hz-20 kHz, 0.2% THD
Bluetooth® to Streaming Music Services
Connect wirelessly. The R-S202 provides Bluetooth functionality to let you enjoy streaming music from smart phones and other devices. Use your device to select the songs from your library and hear them with the legendary quality of Yamaha sound.
40 Station AM/FM Preset Tuning
All your stations. Register up to 40 favorite FM and AM stations, then conveniently select them from either the receiver or the remote control. Auto preset lets you automatically search for and register FM stations. Frequencies appear on the display, so when you want to listen to a new station, you can quickly and easily dial it in.
Simple and Sophisticated Design
Less is more. The R-S202 inherits the simple, sophisticated design style for which Yamaha Hi-Fi audio is famous. With an elegant brushed finish, it harmonizes beautifully with other audio equipment. The Yamaha commitment to beauty and sophistication are demonstrated in the finish and ease of control, giving the user a premium audio experience.
Speaker Selector

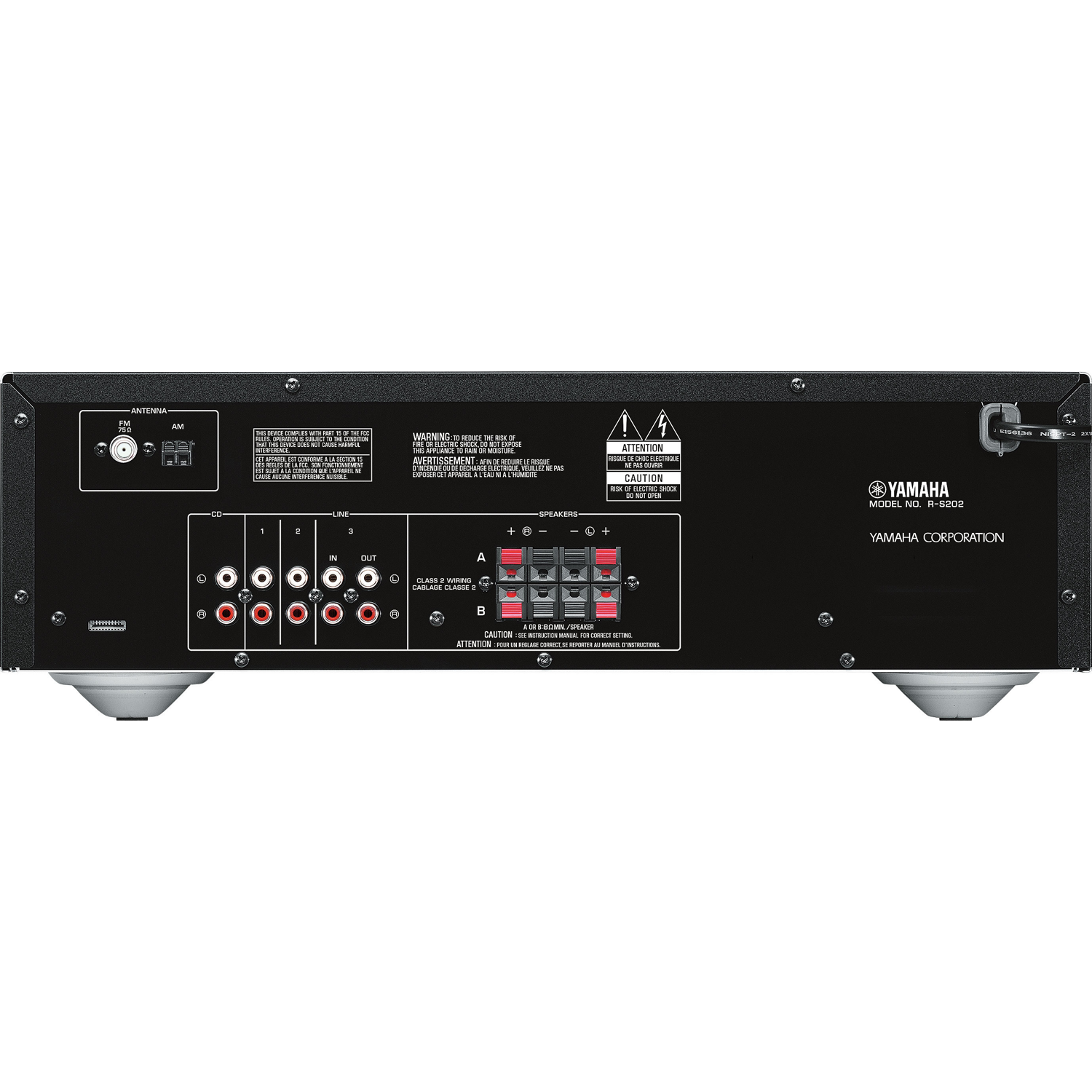

Check one, two. Equipped with speaker terminals for two systems, this receiver lets you connect two sets of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system A or B (8Ω min) or from both A+B (16Ω min). Try the Yamaha NS-6490 bookshelf speakers and the YST-SW216 powered subwoofer with the R-S202 for an ultimate stereo system.
Power Saving
Go Green. A power management function automatically switches to standby mode. It can be set to two, four, eight or 12 hours or turned off. Power consumption during standby is only 0.5 W, achieving good energy saving performance.
Other Notable Features
• Simple remote control layout
• Headphone terminal
Specifications
Specifications
General | |
Stereo RMS Power (watts) | 100 |
THD in Stereo | 0.20% |
Frequency Bandwidth (stereo) | 40-20k Hz |
FM Sensitivity | Not Given |
Signal To Noise Ratio | 100dB |
Phono Signal to Noise Ratio | Not Given |
Bluetooth-compatible | Built-in |
AirPlay Compatible | No |
Alexa-compatible | No |
Google Home-compatible | No |
DTS Play-Fi | --- |
Chromecast Built-in | --- |
Internet Ready | No |
Wired or Wireless Network | No |
HD Radio Tuner | No |
Satellite Radio Ready | No |
iPod Connectivity | No |
Multi-Room | No |
Total Number of Zones | 1 |
Audio Dubbing | Yes |
Multibrand Remote Control | No |
Learning Remote | No |
On-Screen Display | No |
Width (inches) | 17-1/8 |
Height (inches) | 5-9/16 |
Depth (inches) | 13-5/8 |
Weight (pounds) | 14.8 |
Inputs & Outputs | |
Headphone Output | 1/4" |
Subwoofer Output | No |
USB Connections | 0 |
Phono Input | No |
Video Inputs | None |
Total Audio Inputs | 4 |
Digital Audio Inputs | None |
Preamp Outputs | None |
Speaker Output Pairs | 2 |
Item Condition
Item Condition
Buying a Yamaha Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with original accessories included. When you consider that a factory-renewed Yamaha product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Yamaha repair center (you can look-up locations online here or call 714-522-9888)
Yamaha, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Yamaha certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Yamaha Factory Refurbished" product.
Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
