Vinyl Unleashed. Stream your records and music services to MusicCast speakers with no wires attached and no receiver required. Wi-Fi connection ensures exceptional sound quality. With a MusicCast multi-room system, hear your records throughout your entire home.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
- Create a stereo system with MusicCast wireless speakers. Place the turntable and speakers wherever you want!
- Expand to a multi-room audio setup by syncing with MusicCast wireless speakers in other rooms.
- Stream music services with Wi-Fi®, Bluetooth®, AirPlay 2 or Spotify Connect.
- Yamaha Hi-Fi quality built for accuracy and sonic purity. Perfect for the audiophile or beginner vinyl collector.
- Built-in phono preamp gives you flexibility to connect any audio system, adding streaming service playback to your legacy Hi-Fi system.
- Voice control with Alexa and Google Assistant devices or Siri via Airplay 2
- Rotation speed: 33-1/3 rpm, 45 rpm
Turning the tables on cables
Giving an 'old-school' medium a modern spin, wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast speakers and other devices to enjoy your record collection without all the cables.
Don’t stop the music
Hit the end of a record and don’t want the music to stop? With the VINYL 500 you can keep the music going by streaming music services via Wi-Fi, AirPlay, Spotify Connect, or Bluetooth.
Connect the MusicCast VINYL 500 to your existing stereo equipment and get ready for a serious upgrade to your setup.
Here, there and everywhere
Leave the room and let your music follow. Featuring MusicCast multi-room technology, share and listen to your record collection throughout the house.
Stream your vinyl collection to a range of MusicCast devices — everything from speakers to sound bars.
Anyway you want it
Take control of your music streaming and your wireless setups with the MusicCast app. Create favorites, control your multi-room vinyl experience or MusicCast Stereo system. Geek out on all the options and settings to really make your music yours.
You spin me 'round

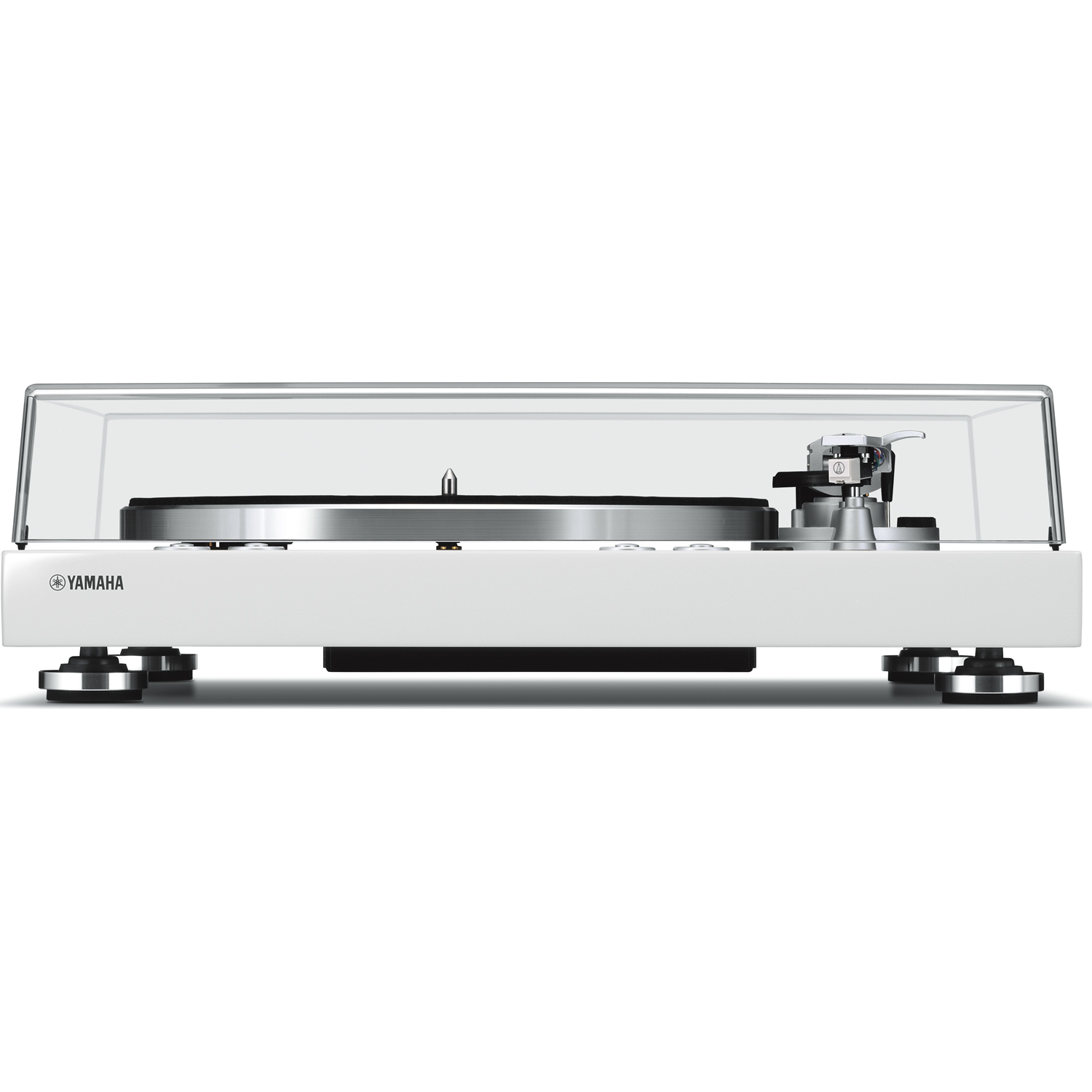

Turn your listening experience on its head. Meet the MusicCast VINYL 500.
Meticulously designed to ensure the most faithful reproduction of sound - the way music was made to be heard — the MusicCast VINYL 500 features a straight tonearm for an open sound as well as a belt-drive motor to minimize noise caused by vibrations.
You turn me on
The piano black finish shows off your style and your records. And with no receiver or speaker wires needed, get creative and put your VINYL 500 anywhere it looks good!
Speak to me
Voice control completes the picture when it comes to the turntable of the future.
Connect to Amazon Alexa for effortless, hands-free control of your music streaming and multi-room setup.
Bluetooth out
In or out. The VINYL 500 is equipped with Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the VINYL 500 to Bluetooth headphones for private listening or to Bluetooth speakers. Bluetooth output has been improved, reducing lip sync delays from digital sources.
Specifications
Specifications
| File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
| Ethernet | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) |
| AirPlay | Yes |
| Version/Profile | Ver. 4.2 / A2DP, AVRCP |
| Audio Codec | SBC, AAC |
| Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interferene) |
| Drive Method | Belt drive |
| Motor | DC motor |
| Rotation Speed | 33-1/3 rpm, 45 rpm |
| Rotation Speed Variation | ±2% |
| Wow And Flutter | 0.2% |
| Platter | Aluminium die-cast (Diameter 30 cm) |
| Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) |
| Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm |
| Overhang | 19 mm |
| Stylus Pressure Adjustment Range | 0-4 g |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) |
| Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) |
| Stylus Pressure | 3.5 ± 0.5 g |
| Cartridge Weight | 5.0 ± 0.3 g |
| Cartridge Height | 17.0 ± 0.7 mm |
| Head-shell Weight | 10 g (including screws, nuts and wires) |
| Output Terminal | RCA: 2 (PHONO, LINE) |
| Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) |
| Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) |
| Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) |
| Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) |
| Power Consumption | 6 W |
| Eco-Standby (reference date) | 0.3 W |
| Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired) |
| Dimension (W×H×D) | 17-3/4” x 5-3/8” x 14-1/2” |
| Weight | 12.6 lbs. |
Item Condition
Item Condition
Buying a Yamaha Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it's repackaged with original accessories included. When you consider that a factory-renewed Yamaha product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Yamaha repair center (you can look-up locations online here or call 714-522-9888)
Yamaha, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened, it must be resold as refurbished or open box and can't be resold as new again. The history and reason why a product was returned is not provided to us, thus we can't provide any additional details regarding its past. All products are processed by Yamaha certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Yamaha Factory Refurbished" product.
Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can't provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
