YAMAHA YSP-5600 DSP WiFi Soundbar w/ Dolby Atmos and DTS-X

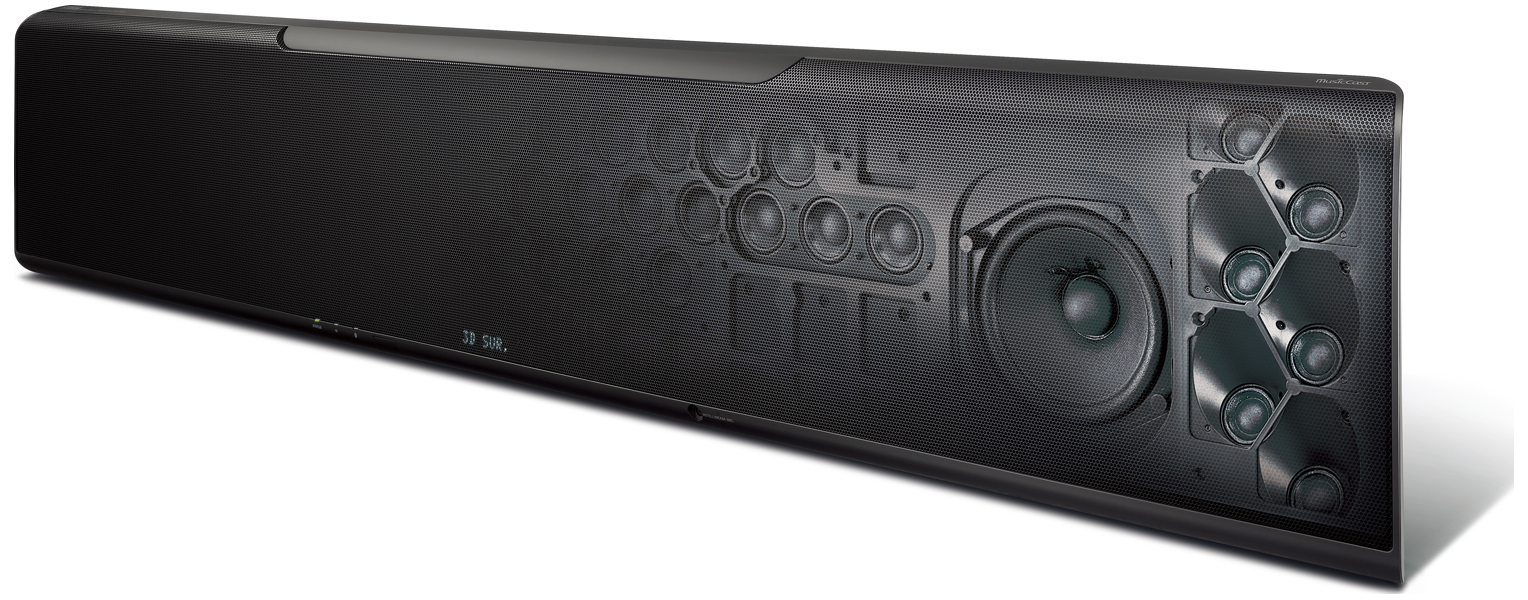

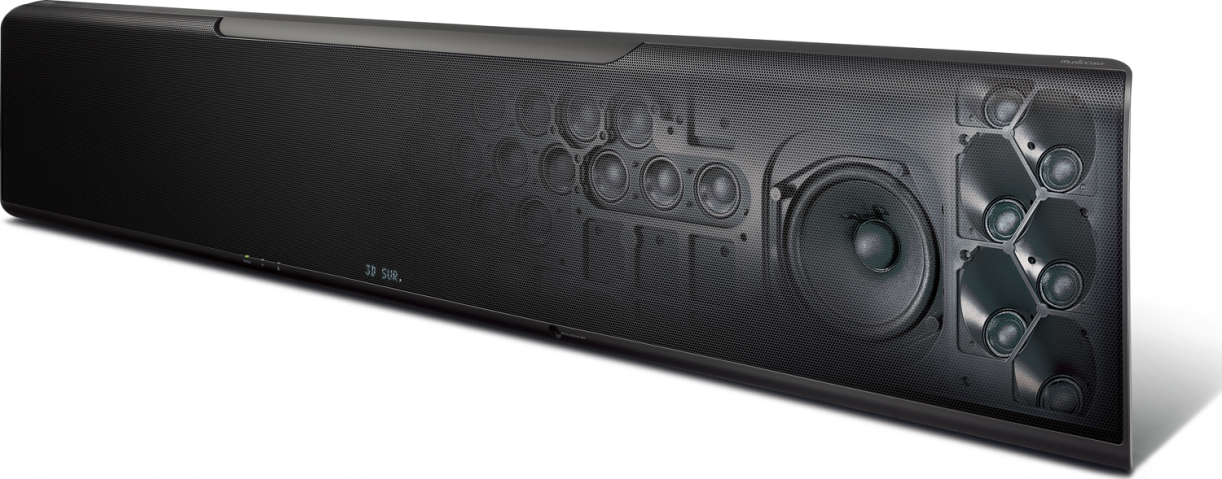

Beautifully designed with 44 precisely calculated and positioned beam drivers and two woofers, the YSP-5600 effectively creates 7-channel sound beams (front left/right, center, surround left/right, height left/right). Using Yamaha Digital Sound Projector technology, each speaker is controlled by individual delay times and is driven with its own independent amplifier circuit. These beams are projected onto the walls and ceiling, and reflected to the listening position. In addition, the YSP-5600 uses the surround channel sound beam for surround back to support 7.1.2-channel Dolby Atmos or DTS:X reproduction.

For reproduction of the latest surround sound formats such as Dolby Atmos and DTS:X, the relationship between the listening position and the height channel is critical for the best sound. The YSP-5600 adjusts the angle of the sound beam directed at the ceiling allowing the height channel position to match the listening position. This process can be done manually or automatically.

The height speakers create multi-dimensional sound by reflecting directed beams off the ceiling to the listening position. The YSP-5600 creates accurate sound position, ensuring realistic reproduction of overhead sound effects such as thunder or airplanes.

With many sound bars positioned below the TV, dialogue and vocals can often seem misplaced relevant to the people talking onscreen. To correct this problem, the YSP-5600 has a Dialogue Lift function (adjustable in three steps) that raises the reflecting beams from the array speakers to the proper height for accurate onscreen dialogue. Enjoy sounds and images that are perfectly aligned, just as in a movie theater.

The YSP-5600 is equipped with four listening modes: 3D Surround, which commands five horizontal beams and two vertical beams to recreate the equivalent of up to a 7.1.2-channel three-dimensional sound field; Surround, which uses five horizontal beams to perform normal 5.1-channel surround playback; Stereo, which uses a special vertical beam speaker as a tweeter to produce high sound quality 2-channel stereo from audio sources; and Target Playback mode, which aims monaural sound clearly to a precise location in the room.

The YSP-5600 employs IntelliBeam automatic sound optimization using the supplied microphone for the best performance in your listening environment. This also includes setting the position of sound beams directed at the ceiling. Achieve highly accurate and impressive sound field reproduction.

MusicCast makes it easy to bring music to every room in your home wirelessly with playback controlled by a simple app. Start with a MusicCast Sound Bar then add a MusicCast capable AV receiver in your main entertainment room for the ultimate home theater experience, next add MusicCast Wireless Speakers or Hi-Fi components in other rooms wirelessly.

MusicCast allows you to access your digital music library, streaming music services and Internet radio, as well as Bluetooth® sources and external sources attached to your Sound Bar, such as a Blu-ray disc player or CD player.

Stream music directly from your smartphone or tablet via Bluetooth or AirPlay®. Use the MusicCast app to pause/play and adjust the volume from your handheld device. In addition, a Bluetooth standby mode provides the convenience of having the sound bar turn on and off automatically.

MusicCast products from Yamaha support Bluetooth as an input or as an output. Stream any audio via Bluetooth from your smartphone or tablet and play it on a single MusicCast device or multiple MusicCast devices in linked playback mode. MusicCast devices can also stream out to a Bluetooth speaker or headphones.

Support for the music streaming services Spotify, Pandora, Rhapsody and Sirius XM means you’ll enjoy a wide variety of music content. Furthermore, support for the vTuner radio station database enables sampling of Internet radio broadcasts from around the world. *Streaming service availability varies by region.

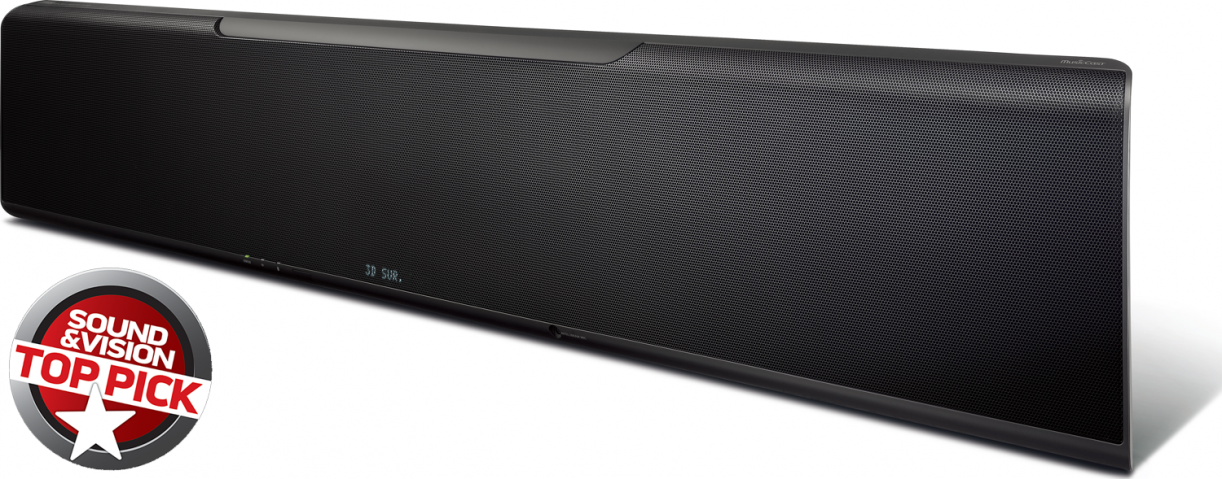

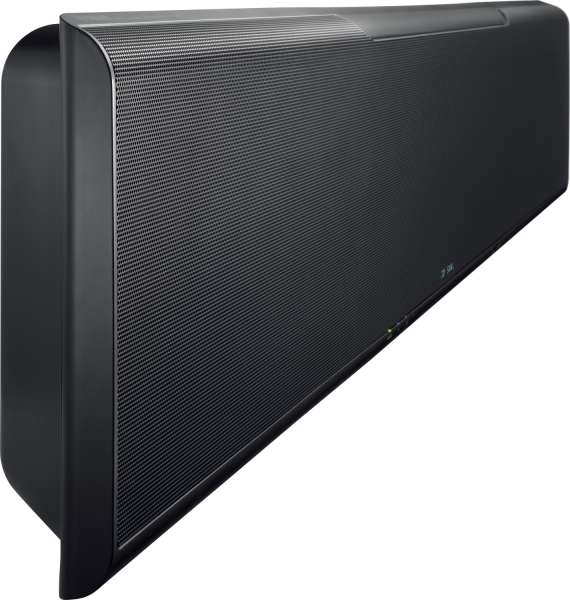

The front panel and the indicator section are covered by a mesh grille achieving a simple, elegant look. In addition, the indicator section lights only when needed, to avoid any distraction while viewing. The YSP-5600 can be placed on TV furniture using the included feet or it can be wall-mounted using an optional bracket (see Accessories). It stands at only 8-3/8” tall and 3-5/8” deep (without the feet) fitting beautifully into any décor.

The optional SWK-W16 kit can be attached to a subwoofer unit to connect it wirelessly. You won’t need to use any connecting wires between the unit and the subwoofer, increasing your system layout options.

The YSP-5600 has an IR input and pass-through output for use with third-party control systems. In addition, it is certified for use with Control4 home automation and smart home systems for network-based control.

Additional menus are provided for settings such as preventing accidental operation by guests. For example, with the Turn-On Volume setting, when power is turned on the volume is automatically set to a reasonable volume to avoid the surprise of very loud sounds. The Max. Volume can block high volume settings, and the Input Lock can prevent accidental operation.
