The Power Manager 1000 offers 2160-joule surge suppression with a 15A circuit breaker to protect against dangerous system overload. Using four kinds of filter circuitry to isolate and protect audio, video, digital and high current equipment, the Power Manager 1000 provides overload protection with a 120V/15A electrical rating. Use the front panel LCD display to monitor voltage and amperage levels. Overload protection acts like an additional circuit breaker, shutting down the unit and connected equipment in the event of a catastrophic surge. This rack mountable system is built to last with sturdy metal housing, and is UL approved.
• 8 surge-protected NEMA 5-15R AC outlets safeguard all audio/video components (2 high current always on, 2 analog always on and 4 digital switched).
• 3 sets of surge-protected, HD-compatible 2.2 GHz Type F gold coaxial connectors safeguard components on cable, satellite and antenna connections.
• 1-line telephone/modem surge protection safeguards personal video recorders (PVRs) on a single dial-up connection. Built-in splitter (1 jack in/2 jacks out) allows simultaneous connection of two devices sharing a single line.
Ethereal Power Brochure
Ethereal Warranty Pamphlet
EMI/RFI Shielding
EMI/RFI line noise filtering helps components perform safely at their peak, while 3 built in Isolated Filter Banks (Analog, Digital, High Current) eliminate interference between connected components.
Remote 12V DC Trigger Operation
The Power Manager 1000 can be controlled remotely by another power manager equipped with a remote trigger out feature.

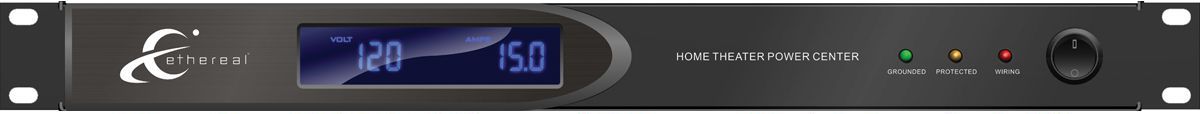

LCD/LED Diagnostics
A front panel LCD display and 8 diagnostic LEDs alert user to input voltage levels, component load levels and 4 operational conditions (power, protection, grounding, selected outlets).
Mounting Flexibility
The Power Manager 1000 is equipped with 2U rack mount or console installation options, with rack mount hardware included. The 8-ft. power cord with right-angle NEMA 5-15P plug permits convenient placement anywhere within a home or business theater system.
