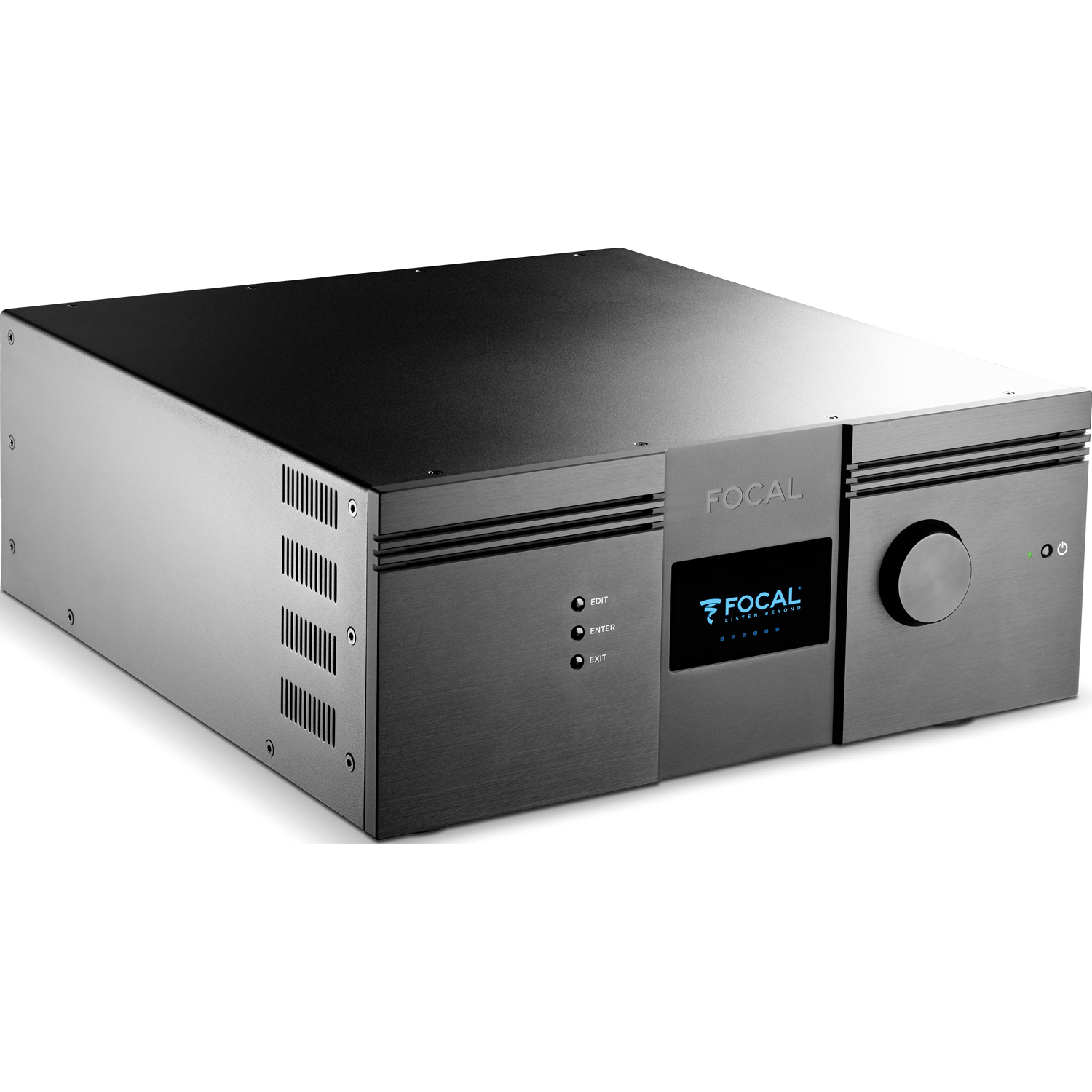

Like any true conductor who draws the best out of his orchestra, Astral 16 draws the very best out of highfidelity and in-wall/in-ceiling loudspeakers by perfectly coordinating all the components within a sensational Home Cinema installation.
Integrating a Class D Pascal Audio amplifier, Astral 16 has 16 channels, of which 12 are amplified and 4 are pre-amplified (balanced XLR outputs) and dedicated entirely to audio (filtering, equalization, bass management, etc.).
This rock-solid foundation is your official invitation to an immersive journey through images and sound of unrivaled quality (sampling frequency supported up to 192 kHz).
ALL AUDIO FORMATS
Astral 16 covers all audio formats: Dolby Atmos®, DTS:X™, Auro-3D® etc.
Equipped with technology that allows adjustments based on room characteristics (Room calibration, with Dirac Live®) and delivered with a calibrated measurement microphone, Astral 16 can be fine-tuned to suit all possible acoustical environments and desires.
ENDLESS CONFIGURATION OPTION
Astral 16 comes with an app available on the App Store (via iPad) to drive the system you want room by room, as well as technical support (Remote Monitoring) for equipment diagnostics at any time.
COMPATIBILITY
Astral 16 is compatible with Control4, Crestron, Savant and RTI.
Astral 16 benefits from the possibilities offered by these leading interface systems to enable perfectly seamless remote control of all your audio & video needs.
Specifications
Specifications
| Compatible formats | Dolby Atmos® / DTS:XTM / Auro-3D® |
| Room Calibration | Powered by Dirac Live® : target curve editable from 20Hz to 20kHz for all channels (including subwoofers), phase correction full bandwidth 20Hz-20kHz on all channels (including subwoofers) |
| "Remote Monitoring" function | |
| Multichannel / Surround Processing | |
| Output channels | 16 |
| Decoding / upmixing channels Input sampling rate supported Stereo downmix | up to 16 channels up to 192kHz |
| Bass management | fully exible |
| Multi-subwoofer channels | Unlimited |
| Multi-way crossover | (6-12-18-24-36-48dB/oct lter slopes) |
| 20 Parametric EQ per channel | |
| HDMI | |
| HDMI inputs | 7: HDMI 2.0 / HDCP 2.2 |
| HDMI outputs (mirror) | 1: HDMI 2.0 / HDCP 2.2 (with eARC) 2: HDMI 2.0 / HDCP 2.2 |
| Supported video format | Up to 4K UHD |
| High Dynamic Range | HDR10 / HLG |
| Color Space and Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Deep Color | 12 bpc |
| Max resolution supported | 4K 60fps 4:4:4 8bpc |
| HDMI | 3D / 4K / eARC |

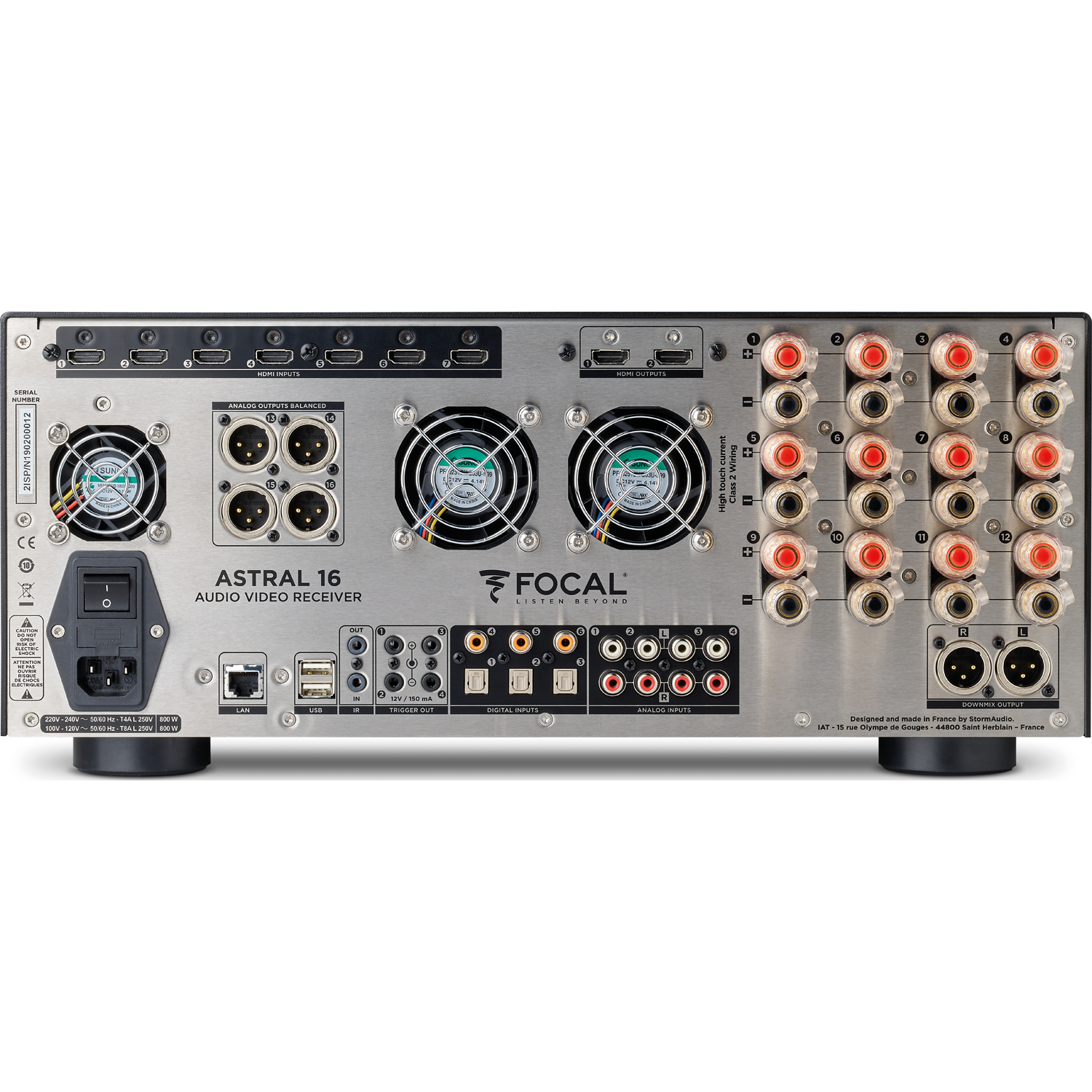

| Audio Inputs | |
| Digital input | 3 x coaxial, 3 x optical |
| Analog stereo inputs | 4 x RCA inputs |
| Amplified Audio Outputs | |
| Amplifed main outputs | 12 |
| Analog main outputs, balanced | 4 x XLR |
| Stereo downmix outputs, balanced | 2 x XLR |
| Technology | Class D |
| Amplified channels | 12 |
| Continuous power output, per channel, à 0.1%THD | 8Ω / 4Ω / 2.7Ω |
| 3 channels driven simultaneous, | 200W / 400W / 650W |
| 6 channels driven simultaneous, | 200W / 350W / 350W |
| 12 channels driven simultaneous | 200W / 300W |
| Continuous power output, per channel, à 1%THD | 8Ω / 4Ω / 2.7Ω |
| 3 channels driven simultaneous, | 250W / 500W / 725W |
| 6 channels driven simultaneous, | 250W / 500W / 500W |
| 12 channels driven simultaneous, | 250W / 300W |
| SNR (P-rated) | 110dB |
| THD (from 1W to P-rated -1dB) | <0,03% |
| Set-Up Management | |
| Configurable multi-theater management Configurable audio zones management | |
| Unlimited Theater and audio zones listening presets Backup and restore of set-up | |
| Firmware update via USB/network | |
| Control Inputs / Outputs | |
| USB type A | 2 |
| Ethernet | |
| Output trigger control | 4 (out) |
| IR remote ports, in/out | 1/1 |
| Control / Custom Installation | |
| Web-based product configurator TCP/IP API based control | |
| Focal Remote iPad control application | |
| Home automation | Crestron, Control4, Savant, RTI home automation |
| Front panel display | TFT 4,3" |
| Power Supply | |
| Voltage range | 100V to 240V |
| Type | SMPS |
| Range selection | Universal |
| Dimensions & weight | |
| Net weight – with stands (kg/lbs) | 20,0 / 44.1 |
| Net weight – with accessories for Rack (kg/lbs) | 23,0 / 50.7 |
| Dimensions with stands (h x w x d) (cm/inches) | 19,10 x 47,90 x 49 / 7.52 x 18.86 x 19.29 |

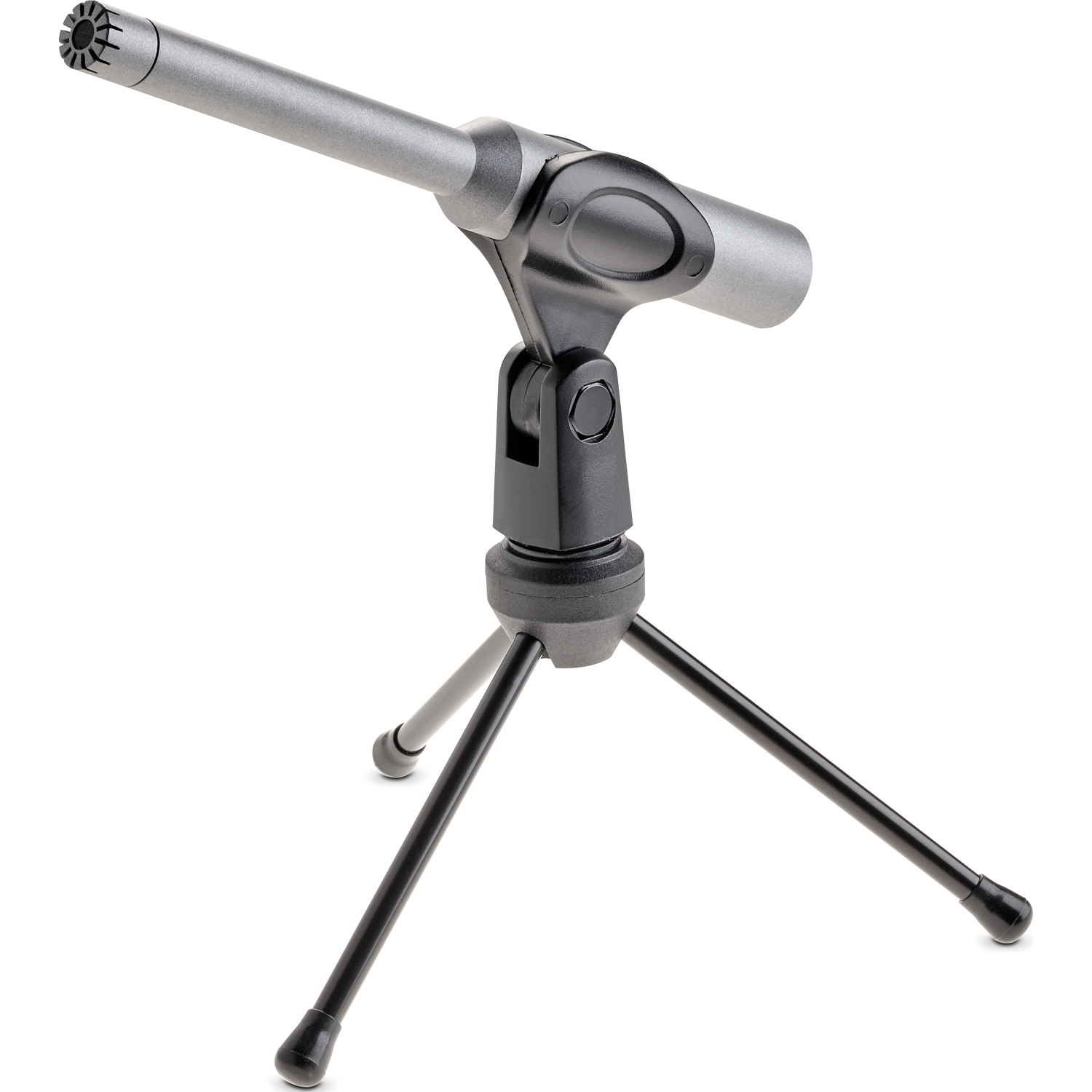

| Supplied with | Calibrated measurement microphone and tripod, Dirac Live license, 32.9ft (10m) cable with infra-red captor, mounting kit. |
