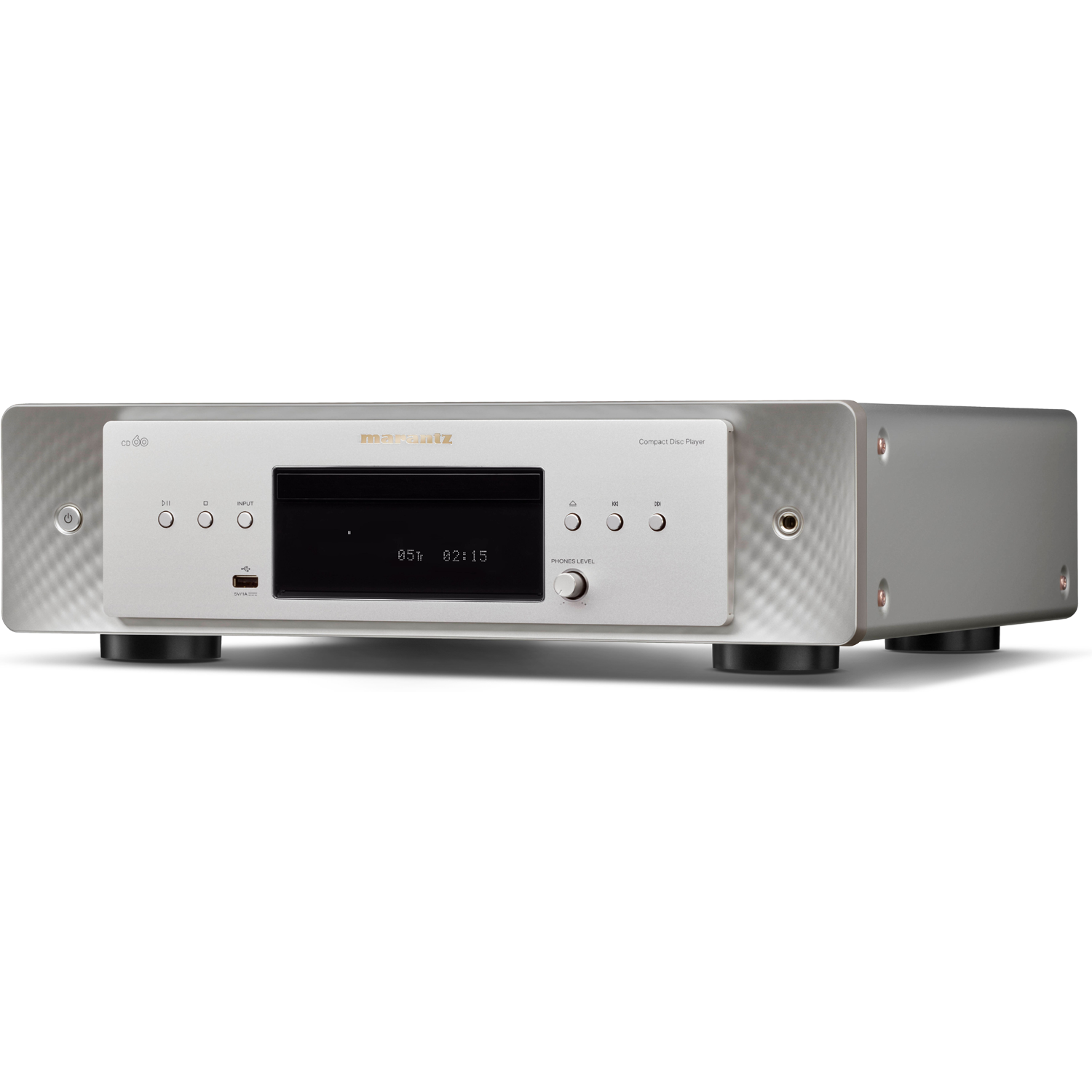

Marantz has been making high-performance CD players since the dawn of the format. Following in the footsteps of its great-sounding predecessors, the CD60 offers warm, detailed sound. The company's proprietary analog audio circuitry provides super-accurate signal transfer and nimble transient response.
*Sold exclusively within the US only. No shipments allowed outside the US!
CLICK HERE TO DOWNLOAD OWNERS MANUAL
This player's smooth-operating disc transport gets a nice, stabilizing assist from its sturdy double-bottomed steel construction and substantial aluminum faceplate. At north of 16 pounds, it's got satisfying heft.
The CD60 features a new reference-class DAC that provides up to 24-bit/192kHz resolution. And whether you're playing a CD or using the front-panel USB port to play from an external USB flash drive, a selectable digital filter lets you tailor its performance to your listening preference. You can also use the optical or coaxial digital outputs if you want to connect to an outboard DAC.
Its built-in HDAM®-SA2 headphone amp has three gain settings for a perfect match with pretty much any headphones.
Rich, Warm, and Spacious Sound
Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.
Optimized HDAM Circuit

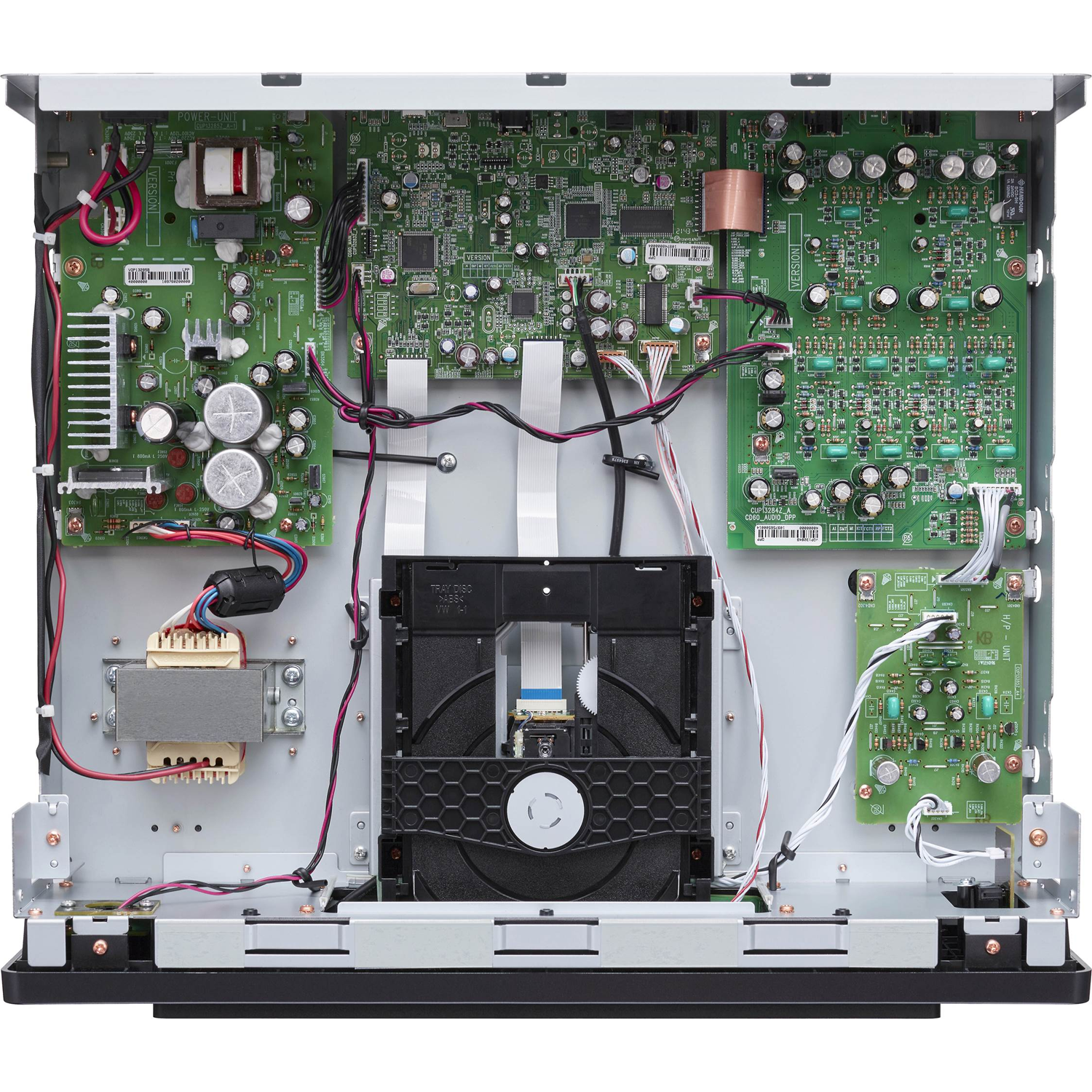

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
High-Current Power Supply
The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.
Plays Hi-Res Audio USB Sources
The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.
Specifications
Specifications
General | |
Unit (W x H x D in)
|
17.4 x 5 x 15.6 |
Net weight | 16.5 lbs |
Front (Center) Panel | Aluminum |
Specifications | |
Frequency response
|
USB DSD: 2Hz - 50kHz (-3dB) |
USB PCM: 2Hz - 50kHz (-1.5dB) | |
CD: 2Hz - 20kHz | |
Total Harmonic Distortion | USB DSD: 0.0006% |
USB PCM 24bit: 0.0005% | |
CD: 0.0015% | |
Signal to Noise Ratio | USB DSD: 110dB |
USB PCM 24bit: 118dB | |
CD: 118dB | |
Dynamic Range | USB DSD: 110dB |
USB PCM 24bit: 118dB | |
CD: 101dB | |
Line Output Level | 2.2Vrms |
Headphone Output Level | 28mW / 32 ohms |
Power Consumption | 38W |
at Standby | 0.3W |
Audio Feature | |
HDAM
|
New HDAM + HDAM-SA2 |
Power Transformer | EI |
Headphone Amp | High slew rate op-amp |
+ HDAM-SA2 | |
H/P Amp Gain Setting | Yes (Low / Mid / High) |
Digital Filter | Filter 1, 2 Selectable |
Connectivity / Playback Capability | |
CD Compatibility
|
CD / CD-R/RW / WMA / MP3 / AAC |
Data Disc Compatibility | DSD / WAV / ALAC |
Fixed Analog Output (RCA) | 1 (Gold Plated) |
Optical input / output (Maximum Support) | 0 / 1 |
Coaxial input / output (Maximum Support) | 0 / 1 |
Headphone Output | 1 |
Remote Control Bus Terminal | Yes (RC-5 In / Out) |
w/ External / Internal Select Switch | |
Flasher Input | Yes (U ver) |
USB A | 1 (Front) |
Mass Storage Class | |
5V/1A | |
Support format | FAT 16/32 |
USB-A: FLAC / WAV / AIFF / ALAC / DSD | Yes / Yes / Yes / Yes |
DSD Native Playback | Yes |
USB Firmware Update | Yes |
Easy to use | |
Remote Controller
|
System Remote |
(Amp and CD Player Control) | |
Unit control (Button) | POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev |
Unit control (Knob) | 1 |
Phones Level | |
Dimmer for Front Display | Bright / Dim / Dark / Off |
Control with App via Network Player (Use Remote Control Bus) | Yes |
Last Function Memory | Yes |
Timer Play (Need external audio timer) | Yes |
On/Off selectable in Menu | |
Auto Standby Mode | Yes |
Other | Stereo RCA Cable x1 |
Remote connector cable x1 | |
Accessory Box | Yes |
Battery | Yes (AAA x2) |
Power Cord | Yes |
Item Condition
Item Condition
Buying a Marantz Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with original accessories included. When you consider that a factory-renewed Marantz product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Marantz repair center (you can look-up locations online here or call 800-654-6633)
Marantz, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Marantz certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Marantz Factory Refurbished" product.
Most units are Cosmetically in Mint Condition (graded a 9 or higher on a scale of 1-10). Very minor signs of wear (light surface scuffs or minor scratches) may be present, although most units show little or no signs of any usage. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused) unless noted in the description. Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
