Description
Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.
The MX-HPA’s technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB (‘A’ weighted). Frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).
The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.
MX-HPA In Brief
- Fully balanced, studio design, purist headphone amplifier
- Incredible technical performance
- Will drive any headphone with ease
- Wide bandwidth: 10Hz-40kHz at +0, -3dB
- Very low noise
- Very low distortion: < 0.003%, 20Hz to 20kHz
- Outstanding channel separation
- Powerful, muscular, output into 32 ohms
- Beautiful aesthetics and build quality
Specifications
Specifications
Output
-
Power 1.8 Watts per channel into 8 Ohms (27dBW)
-
Maximum output voltage 19 Volts RMS, 20Hz to 20 kHz
-
Onset of clipping (54 Volts peak-to-peak) balanced
Line input
-
THD+N >0.005% typical, 20Hz to 20 kHz
-
Signal / noise ratio >120dB ‘A’-weighted
-
Input impedance 50k Ohms
-
Frequency response +0, –0.1dB, 10Hz to 20 kHz
-
Gain, LO position (volume max) 18db (8x)
-
Gain, HI position (volume max) 24dB (15x)

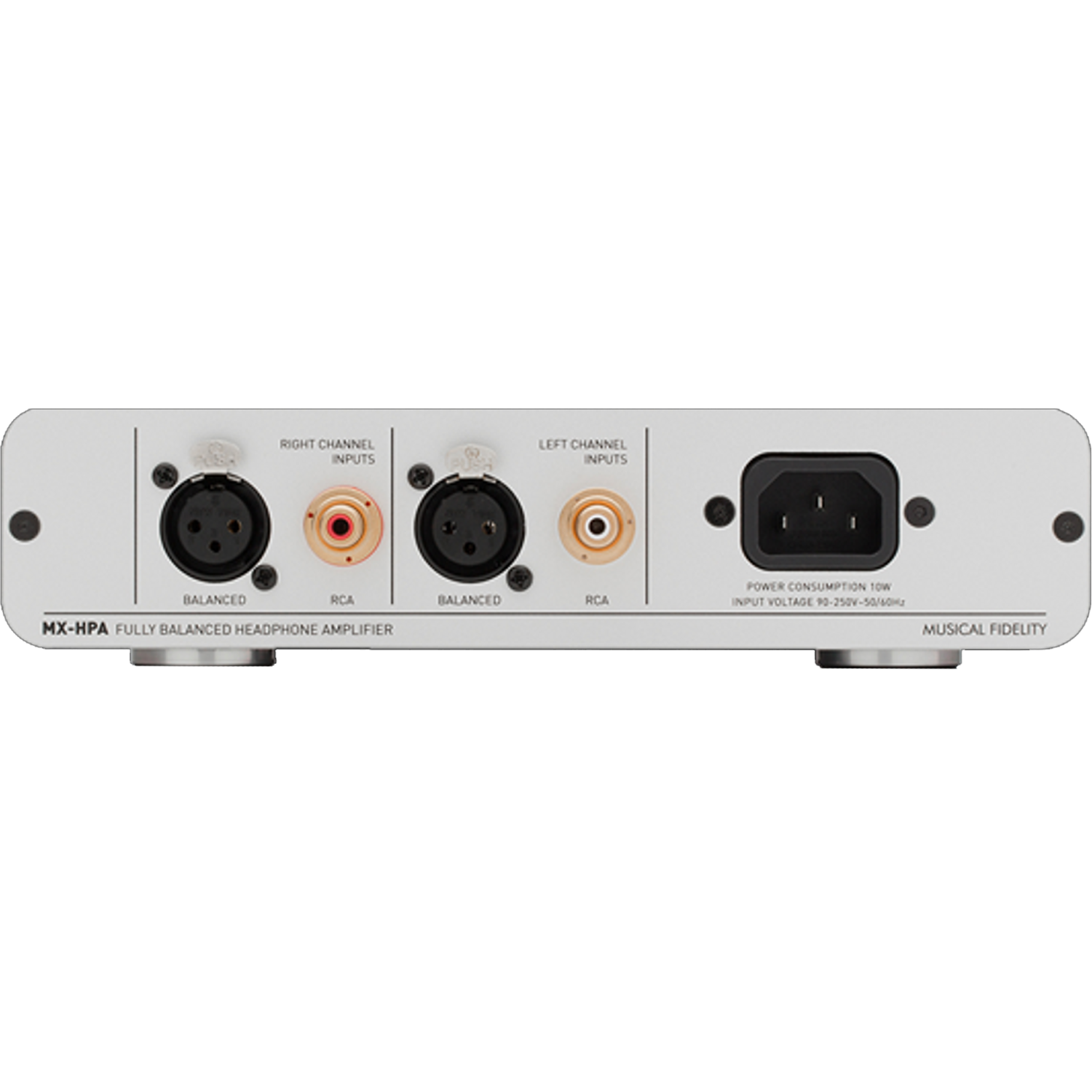

Connections
-
Line level inputs
-
1 pair line level XLR (balanced) connectors
-
1 pairs line level RCA connectors
-
Headphone outputs
-
1 pair 3-pin XLR/¼” stereo Jack combined sockets
Power requirement
-
Mains voltages 90-250VAC 50-60Hz universal worldwide supply
-
Consumption >0.25 Watts standby (Orange LED lit)
-
15 Watts maximum (Blue LED lit, full power output)
General
-
Dimensions - WxHxD: 8 2/3” x 2” x 9½”
-
Weight (unpacked / packed): 5 lbs / 8¼ lbs
