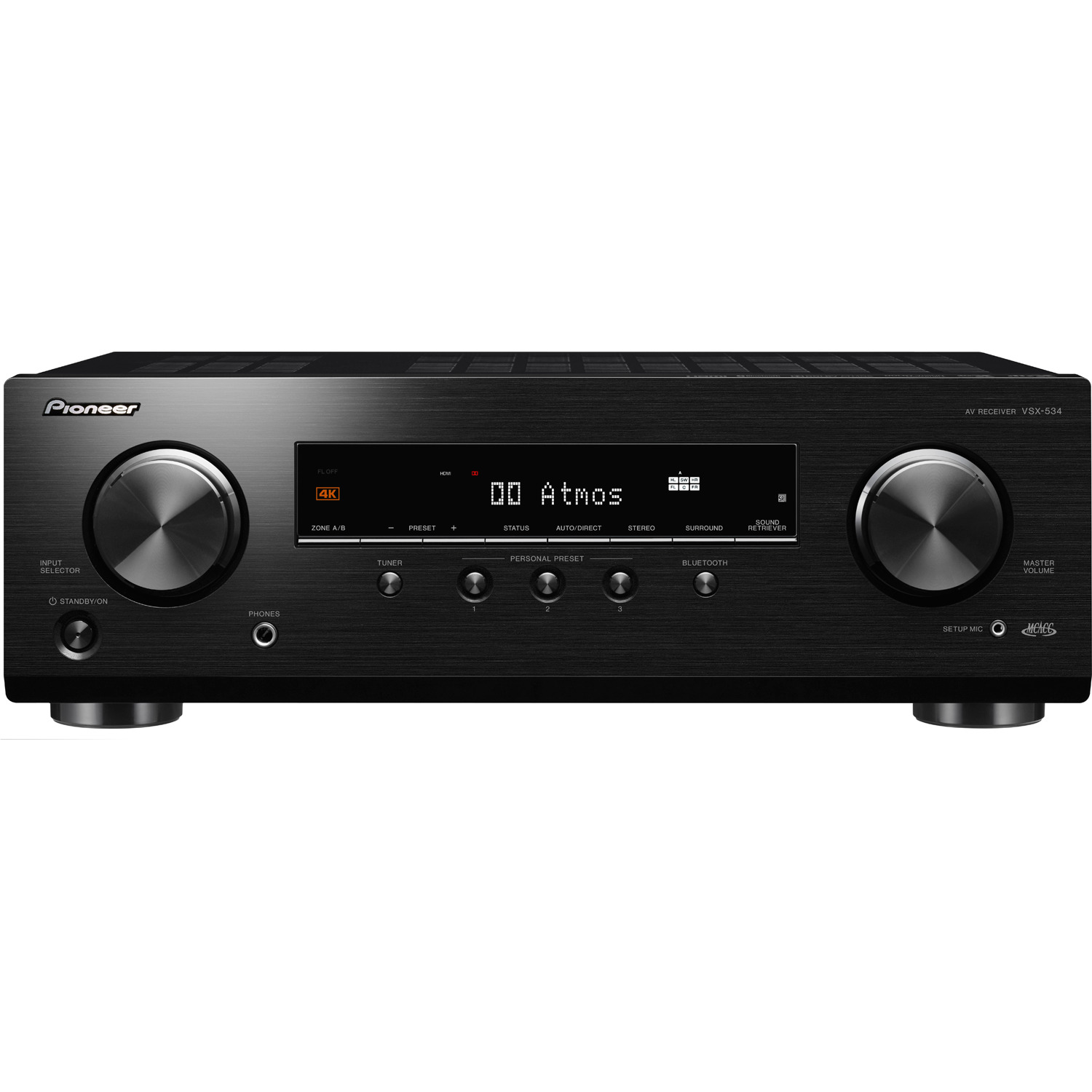

The VSX-534 5.2 Channel AV Receiver features Dolby Atmos® immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly design with a 12% slimmer size than the previous model for easy installation. A 4K indicator and Personal Preset and Bluetooth® Input buttons on the front panel make it easy to setup. Immerse yourself in enveloping sound with Dolby Atmos and DTS: X® audio formats. Even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium 4K content.
Specifications
Specifications
| Amplification | |
| Number Of Channels | 5 |
| Stereo RMS Power (watts) | 80 |
| THD in Stereo | 0.08% |
| Frequency Bandwidth (stereo) | 20-20k Hz |
| Minimum Impedance L/R | 4 ohms |
| Minimum Impedance Center | 4 ohms |
| Minimum Impedance Surround | 4 ohms |
| Amplifier Class | AB |
| General Features | |
| Bluetooth | Built-in |
| Apple AirPlay | No |
| Alexa-compatible | No |
| Google Assistant-compatible | No |
| Chromecast built-in | No |
| DTS Play-Fi | No |
| App Remote Control | No |
| Built-in Radio Tuner | AM/FM |
| On-Screen Display | Thru HDMI |
| Auto Speaker Calibration | MCACC |
| Multi-room Audio/Video | |
| Powered Multi-room Audio Output | No |
| Preamp Multi-room Audio Output | No |
| Multi-room HDMI Output | No |
| Total Number of Zones | 1 |
| Playback from Digital Audio Inputs | No |
| Playback from Streaming Sources | No |
| Surround Processing | |
| Dolby Digital | DD, TrueHD, DD+ |
| Dolby Atmos | Yes |
| Dolby Atmos Height Virtualization | Future Update |
| DTS | DTS, HD, HDMA, ES, 96/24 |
| DTS:X | Yes |
| DTS Virtual:X | Yes |
| Inputs | |
| Audio-Video Inputs | 4 |
| Number of HDMI Inputs | 4 |
| Component Video Inputs | None |
| Audio-only Inputs | 2 |
| Phono Input | No |
| Optical Digital Inputs | 1 |
| Coaxial Digital Inputs | 1 |
| Multi-Channel Analog Input | No |
| Ethernet Port | No |
| USB Connections | Firmware updates only |
| Outputs | |
| HDMI Monitor Outputs | 2 |
| Component Video Monitor Outputs | None |
| Optical Digital Outputs | None |
| Coaxial Digital Outputs | None |
| Subwoofer Outputs | 2 |
| Discrete Subwoofer Outputs | No |
| Multi-channel Preamp Output | No |
| Main Speaker Output Pairs | 1 |
| Speaker Terminals | Binding posts/Spring-clips |
| HDMI Features | |
| HDMI Version | 2.0b |
| VRR (Variable Refresh Rate) | No |
| ALLM (Auto Low Latency Mode) | No |
| 4K/120Hz-Capable Inputs | No |
| Audio Return Channel | ARC supported |
| Video Upscaling | To 4K |
| HDR (High Dynamic Range) Support | |
| HDR10 | Yes |
| HDR10+ | No |
| HLG | Yes |
| Dolby Vision | Yes |
| Other Info | |
| DAC Bit Depth | 32-bit |
| DAC Sample Rate | 384 kHz |
| FM Sensitivity | Not Given |
| Multibrand Remote Control | No |
| Learning Remote | No |
| Removable Power Cord | No |
| Supports Wireless Rear Speakers | No |
| Width (inches) | 17.125 |
| Height (inches) | 5.8125 |
| Depth (inches) | 13.1875 |
| Weight (pounds) | 17.6 |
