Description
Description

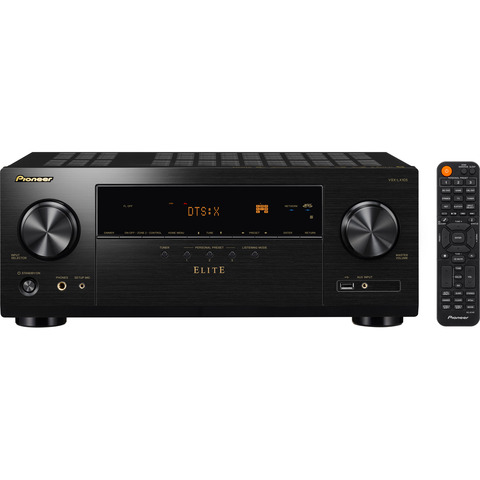

Indulge yourself in 5.2.2-channel surround sound created by Dolby Atmos® or DTS:X. Experience similar effects without height or surround speakers by taking advantage of Dolby Atmos Height Virtualizer and DTS Virtual:X. Enjoy superior images with Ultra HD, HDR10+, HLG, and Dolby Vision™ pass through. Plus, the VSX-LX105 supports HDMI 2.1 for 8K, VRR, ALLM, and QFT pass-through for next-generation video and gaming. You can also stream songs from various sources via Music Server, Bluetooth®, DTS Play-Fi, Sonos system, and Apple AirPlay 2. It is Roon Tested, making music streaming from your personal music library to your Elite AVR Receiver easy. Other highlights include a Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, 2 HDMI outputs, and it works with Alexa/Hey Google for voice control.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
Superior imagery is also yours with Ultra HD, HDR10+, HLG, and Dolby Vision pass through. Plus, the VSX-LX105 supports HDMI 2.1 for 8K, VRR, ALLM, and QFT pass-through for high resolution picture and next-generation gaming. Finally, listening to music couldn't be easier with a number of streaming services in the VSX-LX105, available simply via Bluetooth, or with the ability to connect your entire music library through Roon.
All Encompassing Sound
Reproduce object-oriented sound with DTS:X and the smooth, curving or realistic, three-dimensional, overhead movements of Dolby Atmos. Or if you don't have surrounds or height speakers, Dolby Atmos Height Virtualizer and DTS:X Virtual will create virtual height effects from traditional speaker layouts to simulate up firing speakers. With or without up firing speakers, E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats.
100 Watts per Channel
With 100 Watts per channel (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC) the VSX-LX105 has enough power to support a 5.2.2-channel surround sound home theater setup or power a second zone at 4K120 resolution with the extra channels instead of overhead.
Discrete 2 Zone Switching
Great news for anyone sharing a home! You can use your channels as you please and setup two distinct entertainment zones. If you don't have or don't want to use the 2 channels for height speakers, you can redirect them to create a secondary zone in another room. The primary zone will run with 8K60 resolution and the secondary zone will produce 4K120 resolution with the secondary HDMI output.
Enhanced High-Speed Content: HDMI 2.1 + 8K
The most recent update of the HDMI spec, HDMI 2.1 supports a range of higher video resolutions and refresh rates (including 8K60 and 4K120, as well as Dynamic HDR formats). 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels for a crystal clear picture. Combined with a 60Hz refresh rate the VSX-LX105 enables smooth and sharp viewing for high-speed action in gaming, sports and films.
That 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience. Altogether, this means the gamer in your life will be happy.
Auto Room Tuning
Pioneer's Multi-Channel Acoustic Calibration System (MCACC) automatically adjusts sound according to your listening area and speakers by suppressing the standing waves that occur between walls or ceiling and the floor. Additionally, Auto Phase Control Plus makes real-time analysis of the phase difference and automatically compensates for the gap, resulting in strong bass and clear high-frequency sound.
• Airplay
• Chromecast
• SONOS
• Apple
• Android
• Windows
• Roon Ready
• HDMI
• USB
Roon Tested and Ready for You
Roon is capable of playing your entire music library to many devices, but Roon Tested devices like the VSX-LX105 are profiled by the Roon team to ensure simple setup and effortless daily use. You can be confident that you'll enjoy the best musical experience.
Bi-Directional Bluetooth
Now, Bluetooth connectivity is even better with bi-directional Bluetooth. Stream from your device to the AVR using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones. This is great news if you want to stream from your phone or for the gamer in your lifefor maybe for the person who doesn't want to hear what their gamer is playing.
Built-In Streaming
With the VSX-LX105 you also have access to a number of music streaming services including Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi, Spotify, Amazon Music, Pandora, TIDAL, Deezer and TuneIn. There will be no shortage of musical opportunities.
Specifications
Specifications
Amplification | |
Channels
|
7 |
Amplification Type | Direct Energy |
100 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC) | ✓ |
210 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven) | ✓ |
Audio Features
|
|
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats
|
✓ |
DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats | ✓ |
Reflex Optimizer | ✓ |
Dolby Atmos Height Virtualizer | ✓ |
DTS Virtual: X, Dolby® TrueHD, Dolby Digital Plus | ✓ |
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express | ✓ |
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch) | ✓ |
Digital Quad-Core 32-bit DSP (Cirrus Logic) | ✓ |
192 kHz/24-bit D/A Conversion for Hi-Res Audio | ✓ |
Enhanced Audio Return Channel (eARC) on HDMI OUT (MAIN) | ✓ |
MCACC Auto Room Tuning | Phase Control | Subwoofer EQ |
Advanced Sound Retriever (2ch) | ✓ |
Advanced Surround Modes | Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance |
Video Features
|
|
Support HDMI 2.1
|
(HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through |
Supports HDR10+ and HLG | 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3 |
Dolby Vision Compatible | ✓ |
Ultra HD Upscaling | 4K to 8K, 1080p to 8K/4K |
Home Network Features
|
|
Works with Alexa supporting multi-room music
|
✓ |
Works with Hey Google and Chromecast built-in | ✓ |
DTS Play-Fi with Pioneer Music Control App | ✓ |
Apple AirPlay 2 with Siri Voice Control | ✓ |
Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through mode | ✓ |
Amazon Music HD, Pandora®, Spotify, TIDAL, and Deezer Hi-Fi Music- Streaming Services Ready | ✓ |
Internet Radio with TuneIn | ✓ |
Hi-Res Audio File Playback via USB/Network | ✓ |
Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD | ✓ |
Convenience Features
|
|
Personal Preset
|
✓ |
Dialog Enhancement | ✓ |
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in | ✓ |
Bluetooth® Wireless Technology | Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX) Built-in |
Pioneer Remote App Ready | Multi-room Entertainment Control and Network Streaming |
User-Friendly GUI with System Setup Menu | ✓ |
On-Screen Information for Audio, Video and Network | ✓ |
Web Setup | ✓ |
Auto Power Off in HDMI Standby Through | ✓ |
AM/FM Tuner | 40 Presets |
Sleep Timer | ✓ |
User-Friendly Simple Remote Control | ✓ |
Front Terminals
|
|
USB 1 In for USB Drive
|
✓ |
MCACC Setup MIC In | Gold-Plated |
Audio 1 In | Mini Stereo Jack, Gold-Plated |
Phones 1 Out | Gold-Plated |
Rear Terminals
|
|
HDMI 6 In (4 Assignable)
|
✓ |
HDMI 2 Out | 1 for MAIN, 1 for SUB/ZONE 2 |
Ethernet 1 In | ✓ |
USB 1 In for USB Drive | ✓ |
Audio 4 In | Assignable |
Phono (MM) 1 In | Assignable |
Digital Coaxial 1 In | Assignable |
Digital Optical 1 In | Assignable |
Subwoofer 2 Pre Out | ✓ |
ZONE 2 Pre/Line Out/ZONE B Line Out | ✓ |
Speaker 9-channel Out | FRONT, CENTER, SURROUND/HEIGHT, HEIGHT/SURROUND BACK/Bi-AMP, ZONE 2 |
IR 1 In | ✓ |
12 V Trigger 1 Out | ✓ |
RS-232C | ✓ |
FM/AM Antenna | ✓ |
Specifications
|
|
Power Requirements
|
AC 120 V, 60 Hz |
Power Consumption/Standby | 635 W/0.1 W |
Dimensions (W x H x D) | 17-1/8 x 6-13/16 x 14-9/16 inches (435 x 173 x 370.5 mm) |
Weight | 21.6 lbs. (9.8 kg) |
Item Condition
Item Condition
Buying a Pioneer Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with accessories included. When you consider that a factory-renewed Pioneer product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Pioneer repair center (you can look-up locations online here or call 844-679-5350)
Pioneer, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Pioneer certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Pioneer Factory Refurbished" product.
Minor signs of wear (light surface scuffs or minor scratches) may be present. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused). Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
