Designed for optimum IMAX® Enhanced and Dolby Atmos®/DTS:X movie playback in a seamless 7.2.2ch/5.2.4ch surround sound calibrated by Advanced MCACC, along with support for next-generation video standards, the VSX-LX304 brings multi-dimensional excitement to your home entertainment. Dolby Atmos Height Virtualizer can provide virtual sound effects without using height or surround speakers. Enjoy multi-room audio streaming with SONOS system, FlareConnect™, Chromecast built-in, DTS Play-Fi®, and Apple AirPlay 2.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
IMAX Enhanced
The VSX-LX304 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.
Dolby Atmos®/Dolby Surround Upmixing
The VSX-LX304 is compatible with 7.2.2ch/5.2.4ch configuration of the latest theater sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X®/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Enjoy a seamless soundscape with 7.2.2ch/5.2.4ch surround system offering maximum excitement. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Apple AirPlay 2
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.
Next Generation Video Standard Ready
The VSX-LX304 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut (BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus* makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
* Effectiveness depends on content
Works with SONOS
By connecting the VSX-LX304 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX304 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.
Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-LX304 can directly drive speakers in another room, without the need for a separate amplifier. What’s more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.
Zone B Output for Wireless Headphones
The VSX-LX304 is equipped with Zone B audio output.
The Zone 2 Pre output can also used as Zone B Line output to extend the sound of Zone A (Main Zone) to another location or to wireless headphones via a transmitter
Chromecast built-in
The VSX-LX304 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecast-enabled apps running on your personal device—iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook™. The VSX-LX304 also works with the Google Assistant, so you can tell it to turn up the volume, skip tracks, or stop the music using your Google Assistant enabled device, like Google Home. Discover Chromecastenabled apps at google.com/cast/apps.
Specifications
Specifications
| Power | |
|
Amplifier Design
|
Direct Energy |
| 8 ohms, 1 kHz, THD 0.08 %, 2ch Driven FTC | 100W+100W |
| 4 OHM Speaker | Yes |
| Channels | 9.2 |
| Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven) | 225 W/ch |
| Estimated Power Consumption/Network Standby off | 460 W/0.1 W |
|
Handheld and Internet
|
|
|
AirPlay
|
Apple AirPlay 2 |
| Internet Radio | TuneIn Radio |
| Chromecast built-in and Works with the Google Assistant | Yes |
| FlareConnect™ for Multi-room Audio | Yes |
| Roon Tested | Yes |
| Streaming Audio From PC/Network | Yes |
| iOS/Android Remote Control APP | Pioneer Control App |
| Works with Alexa | Yes (Firmware update) |
| DTS Play-Fi with Pioneer Music Control App | Yes |
| Amazon Music, Pandora ® , Spotify, TIDAL, and Deezer Hi-Fi Music- | Yes |
|
Decoders & Formats
|
|
|
Digital Core DSP Engine
|
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating- point DSP (TI) |
| Audio Processing | 9.1 |
| IMAX Enhanced | Yes |
| Dolby Atmos Height Virtualizer | Yes |
| Dolby Digital Plus | Yes |
| DTS-HD Master Audio | Yes |
| HDMI SACD Transfer | 2 Channel |
| Audio DACs | 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI) |
| Music File Playback | 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD |
| Dolby Atmos | Yes |
| Dolby TrueHD | Yes |
| DTS:X | Yes |
| DTS Neural:X | Yes |
|
Soundfield Calibration
|
|
|
MCACC
|
Yes (Advanced) |
| Auto Phase Control Plus | Yes |
| Standing Wave Control | Multi-point (9 points) |
| EQ Type | LR SYMMETRY EQ |
| Auto Subwoofer Crossover | Yes |
| MCACC Memory | 1 |
| Phase Control | Yes |
| EQ Bands | 9-Band |
| Distance Adjustment | 0.1 feet |
|
Listening Modes
|
|
|
Auto Surround
|
Yes |
| Advanced Surround | 10+1 |
| Stream Direct | Yes (Direct, Pure Direct) |
| Front Stage Surround Advance | Yes |
|
Audio Features
|
|
|
Dialog Enhancement
|
Yes |
| DSD Music File | Yes |
| Sound Delay (Lip Sync) | Yes |
| Advanced Sound Retriever | Yes (2ch) |
| Tone Control | Multi |
| Bi-Amp | Yes |
|
Video Processing
|
|
|
4K Ultra HD Pass-Through
|
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit) |
| 3-D Ready | Yes |
| HDMI Standby Through | Yes with Input Switch / Last Memory |
| Dolby Vision Compatible | Yes |
| HDMI x.v. Color | Yes |
| 4K Ultra HD Video Scaler | Yes (1080p to 4K) |
| Audio Return Channel | Yes |
| HDR | HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through |
| HDMI 36-bit Deep Color | Yes |
|

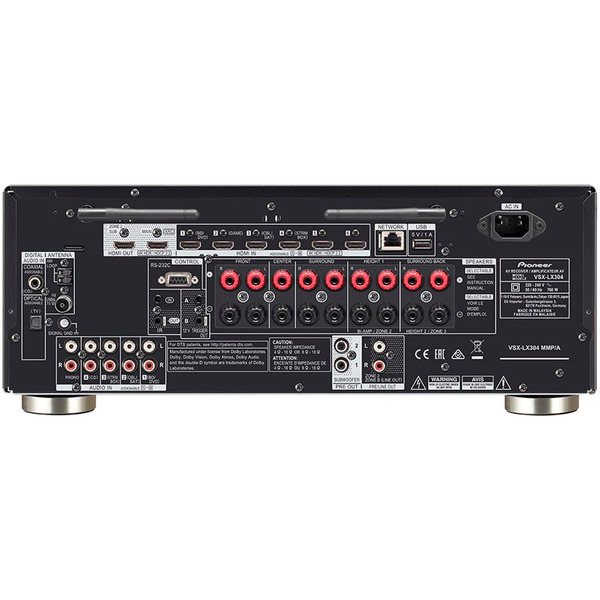

Connectivity
|
|
|
HDMI Input / Output
|
7 In (6 Rear, 1 Front) / 2 Out |
| Bluetooth Built-In | Bluetooth® Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in |
| Ethernet Input | Yes |
| Digital Audio Inputs / Output | 2 In (Optical 1, Coaxial 1) |
| Headphone Output | Yes |
| Phono Input | Yes |
| Wi-Fi Built-In | Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi® Built-in |
| USB Terminal | Front and Rear |
| Analog Audio Inputs / Output | 6 in / 0 out |
| Pre-Amp Output | 0.2 ch |
| Front A/V Inputs | USB / HDMI / 3.5mm stereo mini jack |
| AM/FM Presets | AM/FM Tuner 40 Presets |
|
Installation
|
|
|
On-Screen Display
|
User-Friendly GUI with System |
| Powered Zone output | Zone2 / Zone3 |
| Zone 2 Sources | All Audio Sources |
| 12 Volt Trigger (Assignable) | A.B |
| IR Serial Remote In/Out | 1 in / 1 out |
| FL Dimmer | Yes |
| Remote | Yes |
| Sleep Timer | Yes |
| Auto Power Down | Yes |
| Multi-Room and Source Output | ZONE2 Pre/Line Out |
| Zone 3 Sources | Analog/Net/Bluetooth/Tuner |
| RS-232C | Yes |
| Multi-Zone On-Screen Display | Yes |
| Function Rename | Yes |
| Personal Preset | Yes |
| Versatile Speaker Configuration | Speaker 9ch Out (FRONT, CENTER,SURROUND, HEIGHT1/Bi-AMP/ZONE2, SURROUND BACK/ HEIGHT2/ZONE 3) |
|
Dimensions
|
|
|
W x H x D (inches)
|
17-1/8 x 6-13/16 x 14-9/16 inches (435 x 173 x 370.5 mm) |
| Weight | 29.8 lbs. (13.5 kg) |
