Description
Description

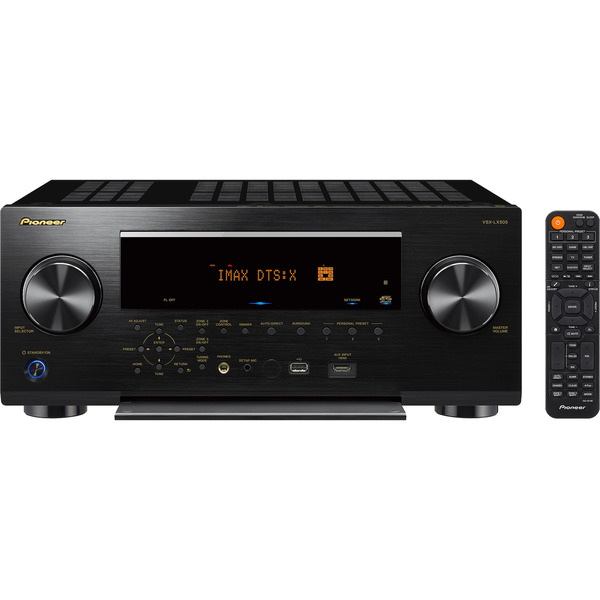

The VSX-LX505 powers 9.2 dedicated channels with 120 watts per channel and has the processing power to up that to 11.2 channels with the addition of pre-amplifiers.
CLICK HERE TO DOWNLOAD OWNERS MANUAL
To ensure the best home entertainment experience possible, the VSX-LX505 is equipped with IMAX® Enhanced Audio and Dirac Live® Room Correction for a full home which adjusts sound according to the space and speakers while offering improved musical staging, dialog, and deeper bass. And you can go beyond a one room experience – the Pioneer Elite VSX-LX505 brings cinema-quality sound and images to multiple rooms so you can have the premium experience in multiple rooms at once.
Specifications
Specifications
Amplification | |
Channels
|
9 |
Amplification Type | Direct Energy |
230 W/ch | 6 ohms, 1 kHz, THD 10 %, 1ch Driven |
120 W/ch | 8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC |
Audio Features
|
|
IMAX Enhanced
|
Yes |
Dolby Atmos®, Dolby Surround Upmixer supports DTS Formats | Yes |
DTS:X®, DTS Neural:X® Upmixer supports Dolby Formats | Yes |
Reflex Optimizer | Yes |
Dolby Atmos Height Virtualizer | Yes |
Dolby® TrueHD, Dolby Digital Plus | Yes |
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express | Yes |
DSD Disc (SACD) Playback via HDMI | 2.8 MHz/2 ch, 5.1 ch |
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI) | Yes |
Hi-Res Audio | 192 kHz/24-bit D/A Conversion |
Enhanced Audio Return Channel (eARC) on HDMI Out (Main) | Yes |
Advanced MCACC Auto Room Tuning | AutPhase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control |
Dirac Live® Room Correction | Yes |
Advanced Sound Retriever (2ch) | Yes |
Advanced Surround Modes | Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance |
Video Features
|
|
Support HDMI 2.1 with 8K
|
VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through |
Supports HDR10+, HDR10, and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor™ (36-bit), “x.v.Color”, LipSync, and HDCP 2.3 | Yes |
Dolby Vision Compatible | Yes |
Ultra HD Upscaling | 4K to 8K, 1080p to 8K/4K |
Home Network Features
|
|
Works with Alexa supporting multi-room music
|
Yes |
Works with Hey Google and Chromecast built-in | Yes |
DTS Play-Fi with Pioneer Music Control App*3 supporting Hi-Res Audio Playback | Yes |
Apple AirPlay 2 with Siri Voice Control | Yes |
Works with SONOS supporting multiple Sonos Connect control and Volume Pass Through mode | Yes |
Amazon Music HD, Pandora®, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready | Yes |
Internet Radio with TuneIn | Yes |
Hi-Res Audio File Playback via USB/Network | Yes |
Up to 192 kHz/24-bit ALAC*6, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD* | Yes |
Convenience Features
|
|
Personal Preset
|
Yes |
Dialog Enhancement | Yes |
Dual Band (5 GHz/2.4 GHz) Wi-Fi® Built-in | Yes |
Bluetooth® Wireless Technology | Transmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in |
Pioneer Remote App | Ready for Multi-room Entertainment Control and Network Streaming |
User-Friendly GUI with System Setup Menu | Yes |
On-Screen Information for Audio, Video and Network | Yes |
Web Setup | Yes |
Auto Power Off in HDMI Standby Through | Yes |
AM/FM Tuner 40 Presets | Yes |
Sleep Timer | Yes |
User-Friendly Simple Remote Control | Yes |
Front Terminals
|
|
HDMI 1 In
|
Yes |
USB 1 In for USB Drive | Yes |
MCACC/Dirac Live Setup MIC In | Yes |
Phones 1 Out (Gold-Plated) | Yes |
Rear Terminals
|
|
HDMI 6 In
|
4 Assignable |
HDMI 2 Out | 1 for MAIN, 1 for SUB/ZONE 2 |
Ethernet | 1 In |
USB 1 In for USB Drive | Yes |
AV (Component) 1 IN | Assignable |
AV (Composite) 2 In | Assignable |
Audio 1 In | Assignable |
Phono (MM) 1 In | Yes |
Digital Coaxial 1 In | Assignable |
Digital Optical 1 In | Assignable |
FRONT, CENTER, SURROUND, SURROUND BACK, HEIGHT 1, HEIGHT 2, SUBWOOFER x 2 Pre Out | Yes |
ZONE 2 Pre/Line Out/ZONE B Line Out | Yes |
ZONE 3/HEIGHT 2 Pre/Line Out | Yes |
Speaker 11 channel Out | FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/ZONE 3/HEIGHT 2, ZONE 2 |
IR 1 In | 1 Out |
12 V Trigger | 2 Out |
RS-232C | Yes |
FM/AM Antenna | Yes |
Specifications
|
|
Power Requirements
|
AC 120 V, 60 Hz |
Power Consumption/Standby | 850 W/0.1 W |

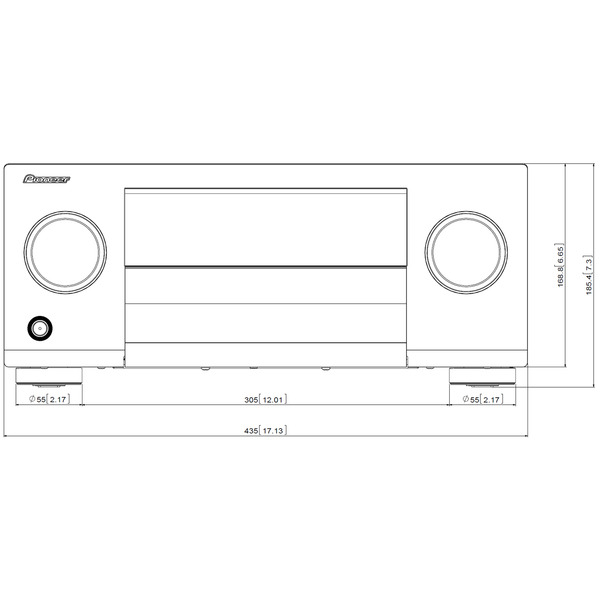

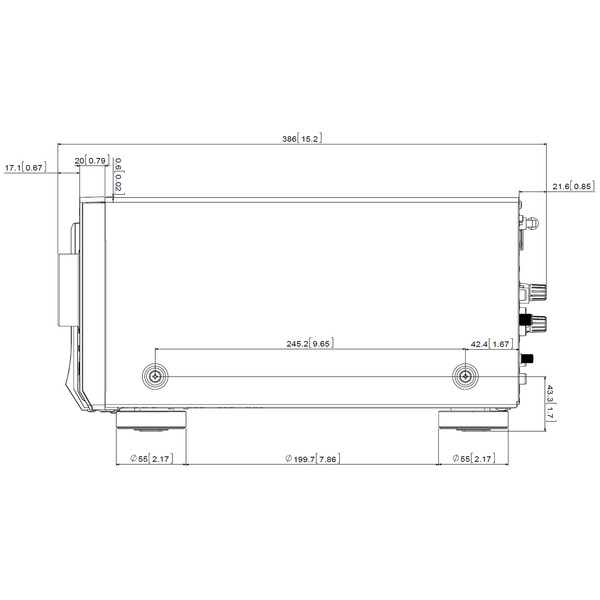

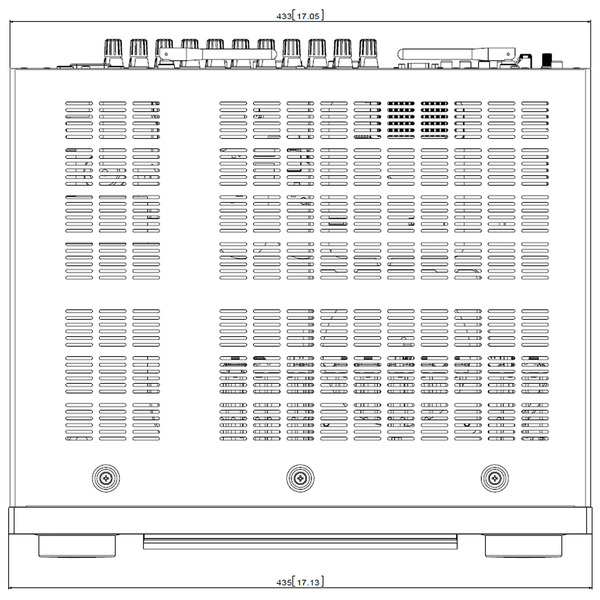

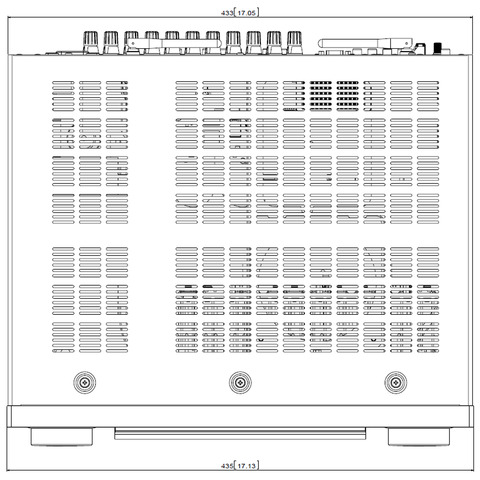

Dimensions (W x H x D) | 17-1/8 x 7-5/16 x 15-3/16 inches (435 x 185 x 386 mm) |
Weight | 28.7 lbs. (13 kg) |
Carton Dimensions | 21-5/16 x 12-3/16 x 19-3/16 inches (541 x 310 x 487 mm) |
Carton Included Weight | 35.3 lbs. (16.0 kg) |
Item Condition
Item Condition
Buying a Pioneer Factory Refurbished product is a great way to get "as-new" products at a considerable savings. Every product has been thoroughly tested, repaired (if necessary), cleaned and otherwise renewed to original condition. Next it’s repackaged with accessories included. When you consider that a factory-renewed Pioneer product undergoes such close scrutiny for defects and workmanship, you might actually be buying something that is in many ways better than new. And for your piece of mind and protection, your purchase is covered by a full 1 year parts and labor warranty valid at any authorized Pioneer repair center (you can look-up locations online here or call 844-679-5350)
Pioneer, like all electronics manufactures, receives products returned for various reasons. In 2011 consumers returned 17 billion dollars in electronics globally, of which less than 5% were found to be defective! Once a product has been opened it must be resold as refurbished and can’t be resold as new again. The history and reason why a product was returned is not provided to us, thus we can’t provide any additional details regarding its past. All products are processed by Pioneer certified technicians, where they are fully tested, repaired (only if necessary), and retested again to ensure the highest quality control. Each unit must pass a complete battery of test before it can be titled a "Pioneer Factory Refurbished" product.
Minor signs of wear (light surface scuffs or minor scratches) may be present. We DO NOT sell products that are cosmetically damaged (cracked displays, broken knobs, heavy scratches, or physically abused). Unfortunately, we can’t provide actual photos of each unit or pick the best one for anyone, as they are all randomly chosen from our factory sealed boxes.
