WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio. The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.
Super easy setup
WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide
and start streaming music in less than 2 minutes.
All your content in one app
We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.
| Dimensions | 2.7" x 2.7" x .9" |
| Weight | 48g |
| Audio Codec | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Wi - Fi | Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network |
| Bluetooth | Bluetooth 5.0, SBC and AAC codec, BT receiver and transmitter (with SW update) |
| Power Supply | 5V,1A |
| LED | Three color status LED - Red, Green and White. |

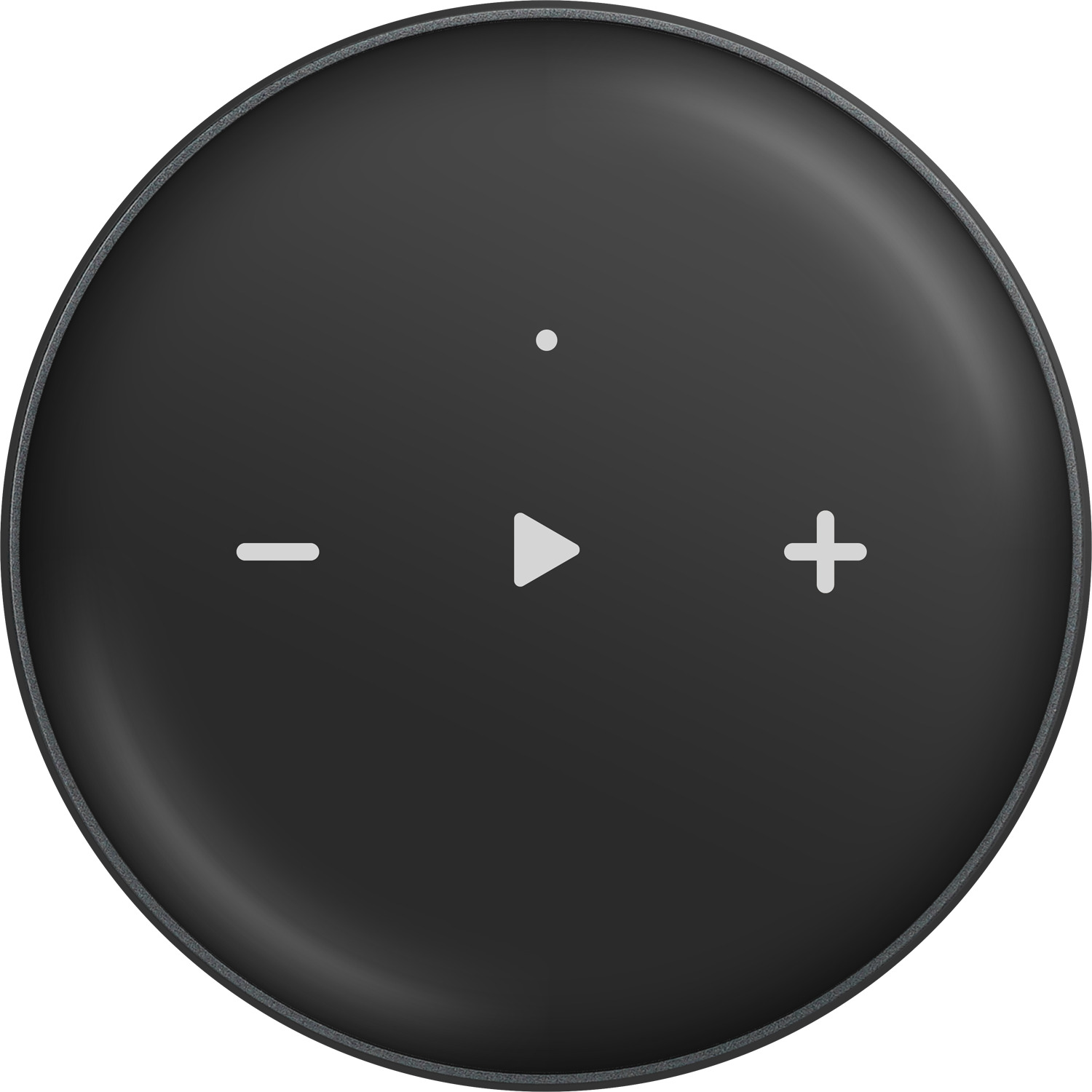

| Button | Capacitive touch - Play/Pause, Volume+, Volume- |
| Line in | 1Vrms |
| Line in to Line out | |
| Power Output | 2Vrms |
| THD+N Ratio | 0.009% |
| SNR | 102dB |
| Crosstalk | -106dB |
| Dynamic Range | 96dB |
|
BT in to Line out
|
|
| Power Output | 2Vrms |
| THD+N Ratio | 0.009% |
| SNR | 102dB |
| Crosstalk | -106dB |
| Dynamic Range | 96dB |
| Line in to SPDIF out | |
| Power Output | -3dBFS |
| THD+N Ratio | 0.005% |
| SNR | 102dB |
| Crosstalk | -103dB |
| Dynamic Range | 97dB |
|
BT in to SPDIF out
|
|
| Power Output | 0dBFS |
| THD+N Ratio | 0.005% |
| SNR | 297dB |
| Crosstalk | -364dB |
| Dynamic Range | 213dB |
